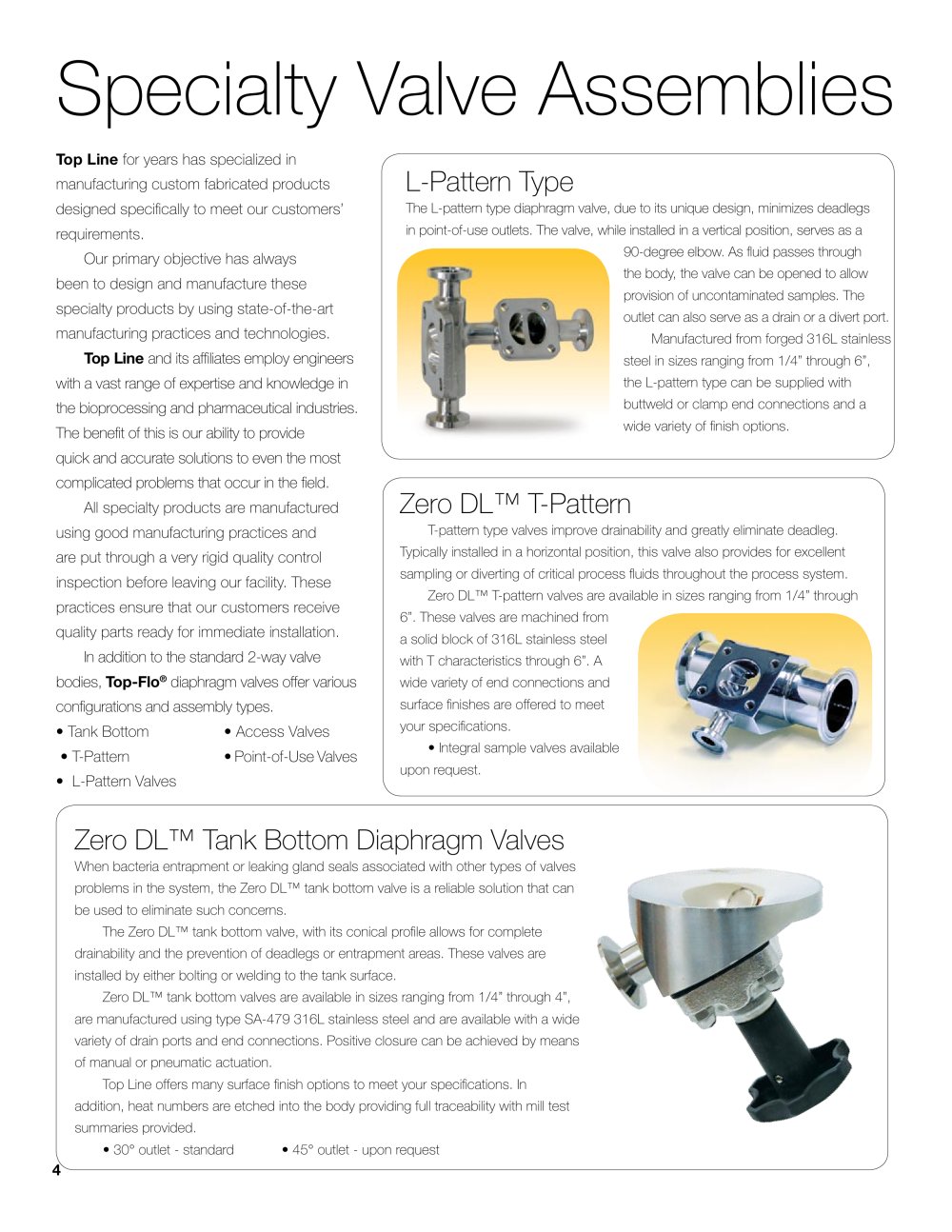

Specialty Valve Assemblies

Top Line for years has specialized in manufacturing custom fabricated products designed specifically to meet our customers' requirements.

Our primary objective has always been to design and manufacture these specialty products by using state-of-the-art manufacturing practices and technologies.

Top Line and its affiliates employ engineers with a vast range of expertise and knowledge in the bioprocessing and pharmaceutical industries. The benefit of this is our ability to provide quick and accurate solutions to even the most complicated problems that occur in the field.

All specialty products are manufactured using good manufacturing practices and are put through a very rigid quality control inspection before leaving our facility. These practices ensure that our customers receive quality parts ready for immediate installation.

In addition to the standard 2-way valve bodies, Top-Flo® diaphragm valves specification offer various configurations and assembly types.

• Tank Bottom • Access Valves specifications

• T-Pattern • Polnt-of-Use Valves

• L-Pattern Valves

L-Pattern Type

The L-pattern type diaphragm valve, due to Its unique design, minimizes deadlegs n point-of-use outlets. The valve, while installed in a vertical position, serves as a

90-degree elbow. As fluid passes through the body, the valve can be opened to allow provision of uncontaminated samples. The outlet can also serve as a drain or a divert port.

Manufactured from forged 316L stainless steel in sizes ranging from 1/4" through 6", the L-pattern type can be supplied with buttweld or clamp manufacturer end connections and a wide variety of finish options.

Zero DL™ T-Pattern

T-pattern type valves improve drainability and greatly eliminate deadleg Typically installed in a horizontal position, this valve also provides for excellent sampling or diverting of critical process fluids throughout the process system

Zero DL™ T-pattern valves are available in sizes ranging from 1/4" through 8", These valves are machined frorr a solid block of 316L stainless stee with T characteristics through 6". A wide variety of end connections and surface finishes are offered to meet your specifications

•Integral sample valves available

upon request.

Zero DL™ Tank Bottom Diaphragm Valves

When bacteria entrapment or leaking gland seals associated with other types of valves oroblems In the system, the Zero DL™ tank bottom valve Is a reliable solution that can oe used to eliminate such concerns

The Zero DL™ tank bottom valve, with Its conical profile allows for complete drainability and the prevention of deadlegs or entrapment areas. These valves are nstalled by either bolting or splicing to the tank surface

Zero DL™ tank bottom valves are available In sizes ranging from 1/4" through 4". are manufactured using type SA-479 316L stainless steel and are available with a wide variety of drain ports and end connections. Positive closure can be achieved by means of manual or pneumatic actuation

Top Line offers many surface finish options to meet your specifications. In addition, heat numbers are etched Into the body providing full traceablllty with mill test summaries provided

• 30° outlet - standard • 45° outlet - upon request
