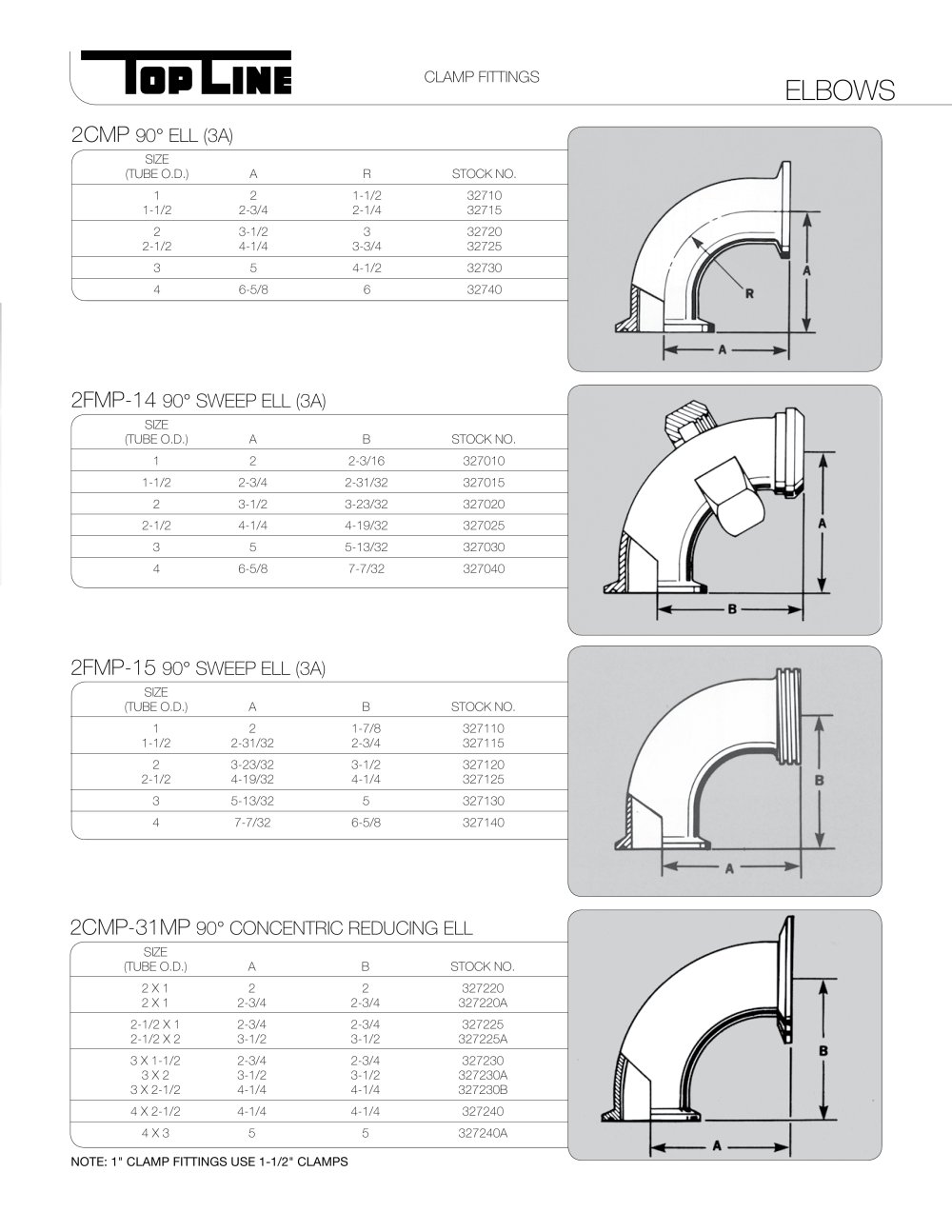

ELBOWS

2CMP

90° ELL (3A)

SIZE (TUBE O.D.) A R STOCK NO. 1 2 1-1/2 32710 1-1/2 2-3/4 2-1/4 32715 2 3-1/2 3 32720 2-1/2 4-1/4 3-3/4 32725 3 5 4-1/2 32730 4 6-5/8 6 32740

2FMP-14

90° SWEEP ELL (3A)

SIZE (TUBE O.D.) A B STOCK NO. 1 2 2-3/16 327010 1-1/2 2-3/4 2-31/32 327015 2 3-1/2 3-23/32 327020 2-1/2 4-1/4 4-19/32 327025 3 5 5-13/32 327030 4 6-5/8 7-7/32 327040

2FMP-15

90° SWEEP ELL (3A)

SIZE (TUBE O.D.) A B STOCK NO. 1 2 1-7/8 327110 1-1/2 2-31/32 2-3/4 327115 2 3-23/32 3-1/2 327120 2-1/2 4-19/32 4-1/4 327125 3 5-13/32 5 327130 4 7-7/32 6-5/8 327140

2CMP-31MP

90° CONCENTRIC REDUCING ELL

SIZE (TUBE O.D.) A B STOCK NO. 2 X 1 2 2 327220 2 X 1 2-3/4 2-3/4 327220A 2-1/2 X 1 2-3/4 2-3/4 327225 2-1/2 X 2 3-1/2 3-1/2 327225A 3 X 1-1/2 2-3/4 2-3/4 327230 3 X 2 3-1/2 3-1/2 327230A 3 X 2-1/2 4-1/4 4-1/4 327230B 4 X 2-1/2 4-1/4 4-1/4 327240 4 X 3 5 5 327240A NOTE: 1" CLAMP FITTINGS USE 1-1/2" MANUFACTURER OF CLAMPS
