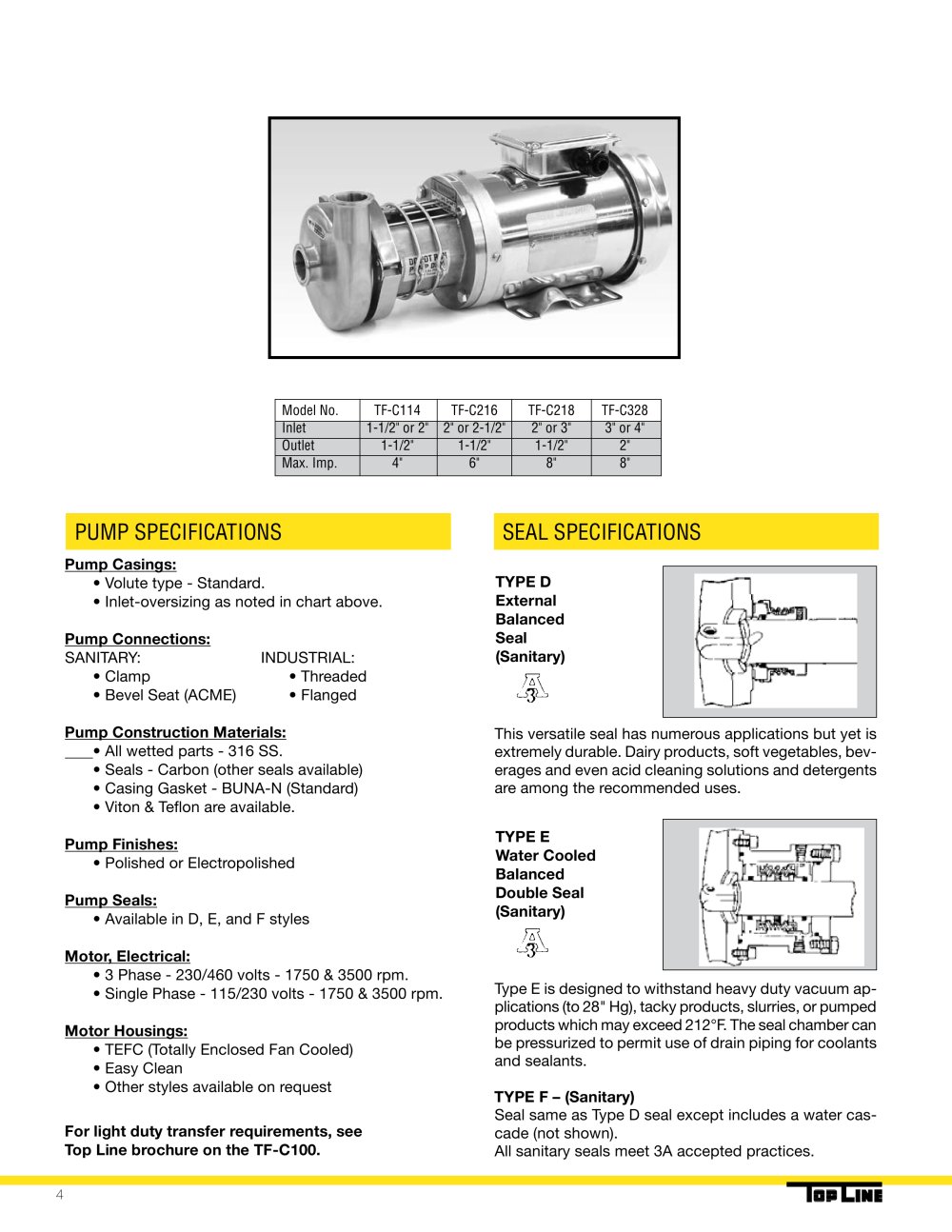

Model No.	TF-C114	TF-C216	TF-C218	TF-C328
Inlet	1-1/2" or 2"	2" or 2-1/2"	2" or 3"	3" or 4"
Outlet	1-1/2"	1-1/2"	1-1/2"	2"
Max. Imp.	4"	6"	8"	8"

PUMP SPECIFICATIONS

SEAL SPECIFICATIONS

Pump Casings:

• Volute type - Standard.

• Inlet-oversizing as noted in chart above.

TYPE D External Balanced Seal

(Sanitary)

Pump Connections:

SANITARY:

• Workholding

• Bevel Seat (ACME)

INDUSTRIAL:

• Threaded

• Flanged

Pump Construction Materials:

_• All wetted parts - 316 SS.

• Seals - Carbon (other seals available)

• Casing Gasket - BUNA-N (Standard)

• Viton & Teflon are available.

Pump Finishes:

• Polished or Electropolished

Pump Seals:

• Available in D, E, and F styles

Motor, Electrical:

• 3 Phase - 230/460 volts - 1750 & 3500 rpm.

• Single Phase - 115/230 volts - 1750 & 3500 rpm.

Motor Housings:

• TEFC (Totally Enclosed Fan Cooled)

• Easy Clean

• Other styles available on request

For light duty transfer requirements, see Top Line brochure on the TF-C100.

This versatile seal has numerous applications but yet is extremely durable. Dairy products, soft vegetables, beverages and even acid cleaning solutions and detergents are among the recommended uses.

TYPE E Water Cooled Balanced Double Seal (Sanitary)

Type E is designed to withstand heavy duty vacuum applications (to 28" Hg), tacky products, slurries, or pumped products which may exceed 212°F. The seal chamber can be pressurized to permit use of drain piping for coolants and sealants.

TYPE F - (Sanitary)

Seal same as Type D seal except includes a water cascade (not shown).

All sanitary seals meet 3A accepted practices.
