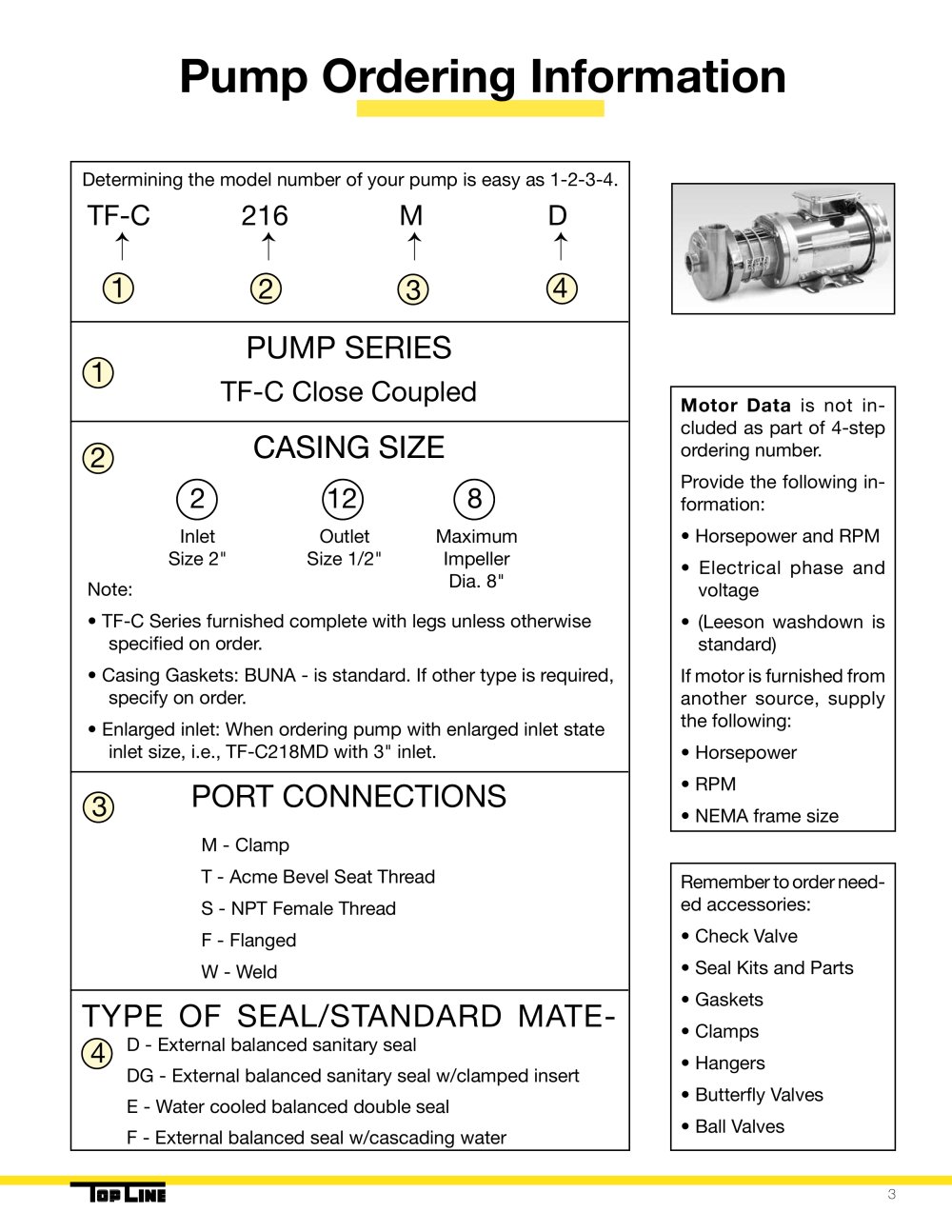

Pump Ordering Information
Determining the model number of your pump is easy as 1-2-3-4.
TF-C
M
D
216
PUMP SERIES TF-C Close Coupled
Motor Data is not in­cluded as part of 4-step ordering number.
Provide the following in­formation:
• Horsepower and RPM
• Electrical phase and voltage
• (Leeson washdown is standard)
If motor is furnished from another source, supply the following:
• Horsepower
• RPM
• NEMA frame size
CASING SIZE
2
12
8
Outlet Size 1/2"
Inlet Size 2"
Maximum Impeller Dia. 8"
Note:
• TF-C Series furnished complete with legs unless otherwise
specified on order.
• Casing Gaskets: BUNA - is standard. If other type is required, specify on order.
• Enlarged inlet: When ordering pump with enlarged inlet state inlet size, i.e., TF-C218MD with 3" inlet.
PORT CONNECTIONS
M - Clamp
T - Acme Bevel Seat Thread S - NPT Female Thread
F - Flanged
W - Weld
Remember to order need­ed accessories:
• Seal Kits and Parts
• Gaskets
• Hangers
TYPE OF SEAL/STANDARD MATE-
/4\ D - External balanced sanitary seal
DG - External balanced sanitary seal w/clamped insert
E - Water cooled balanced double seal
F - External balanced seal w/cascading water
