CLAMP

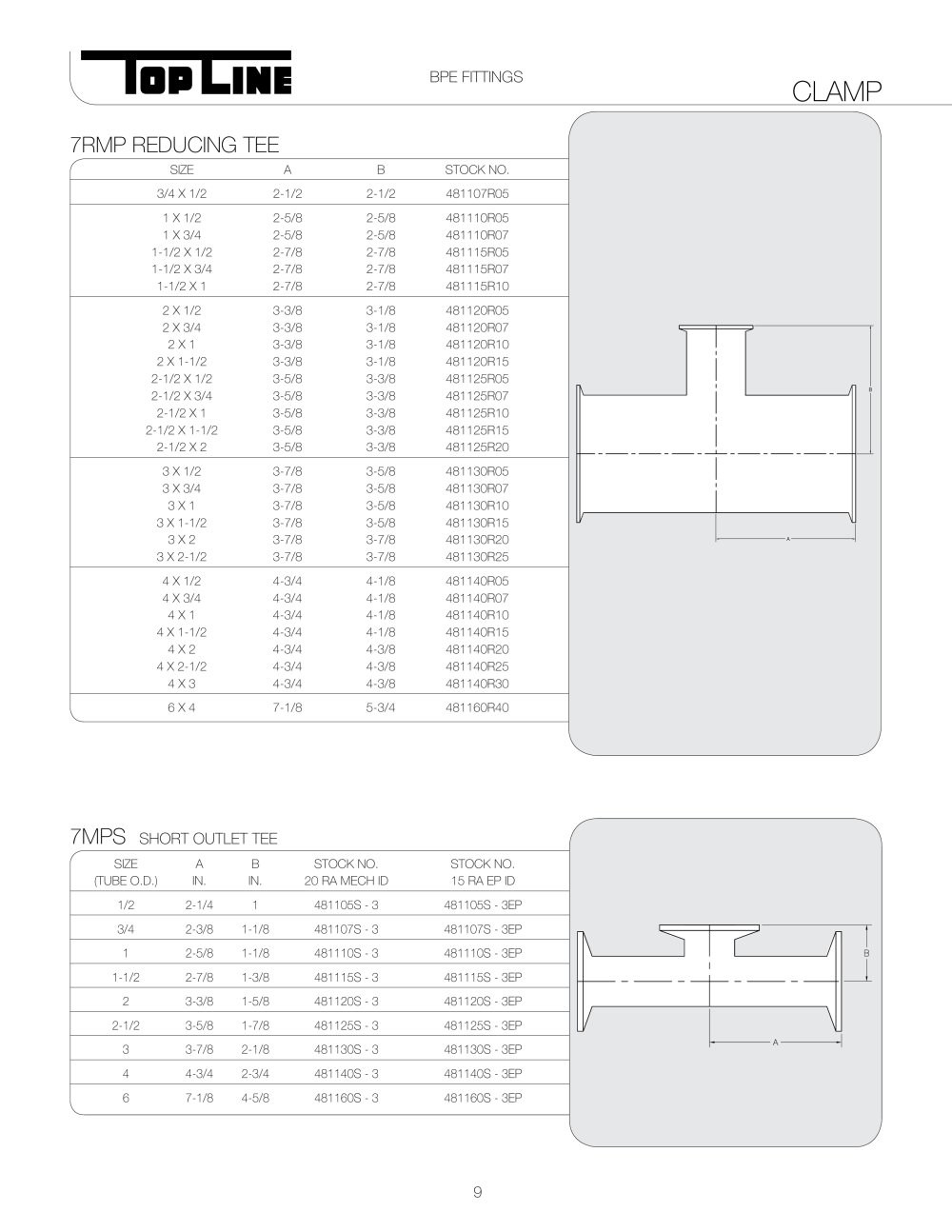

7RMP REDUCING TEE

SIZE A B STOCK NO. 3/4 X 1/2 2-1/2 2-1/2 481107R05 1 X 1/2 2-5/8 2-5/8 481110R05 1 X 3/4 2-5/8 2-5/8 481110R07 1-1/2 X 1/2 2-7/8 2-7/8 481115R05 1-1/2 X 3/4 2-7/8 2-7/8 481115R07 1-1/2 X 1 2-7/8 2-7/8 481115R10 2 X 1/2 3-3/8 3-1/8 481120R05 2 X 3/4 3-3/8 3-1/8 481120R07 2 X 1 3-3/8 3-1/8 481120R10 2 X 1-1/2 3-3/8 3-1/8 481120R15 2-1/2 X 1/2 3-5/8 3-3/8 481125R05 2-1/2 X 3/4 3-5/8 3-3/8 481125R07 2-1/2 X 1 3-5/8 3-3/8 481125R10 2-1/2 X 1-1/2 3-5/8 3-3/8 481125R15 2-1/2 X 2 3-5/8 3-3/8 481125R20 3 X 1/2 3-7/8 3-5/8 481130R05 3 X 3/4 3-7/8 3-5/8 481130R07 3 X 1 3-7/8 3-5/8 481130R10 3 X 1-1/2 3-7/8 3-5/8 481130R15 3 X 2 3-7/8 3-7/8 481130R20 3 X 2-1/2 3-7/8 3-7/8 481130R25 4 X 1/2 4-3/4 4-1/8 481140R05 4 X 3/4 4-3/4 4-1/8 481140R07 4 X 1 4-3/4 4-1/8 481140R10 4 X 1-1/2 4-3/4 4-1/8 481140R15 4 X 2 4-3/4 4-3/8 481140R20 4 X 2-1/2 4-3/4 4-3/8 481140R25 4 X 3 4-3/4 4-3/8 481140R30 6 X 4 7-1/8 5-3/4 481160R40

7MPS

SHORT OUTLET TEE

SIZE A B STOCK NO. STOCK NO. (TUBE O.D.) IN. IN. 20 RA MECH ID 15 RA EP ID 1/2 2-1/4 1 481105S - 3 481105S - 3EP 3/4 2-3/8 1-1/8 481107S - 3 481107S - 3EP 1 2-5/8 1-1/8 481110S - 3 481110S - 3EP 1-1/2 2-7/8 1-3/8 481115S - 3 481115S - 3EP 2 3-3/8 1-5/8 481120S - 3 481120S - 3EP 2-1/2 3-5/8 1-7/8 481125S - 3 481125S - 3EP 3 3-7/8 2-1/8 481130S - 3 481130S - 3EP 4 4-3/4 2-3/4 481140S - 3 481140S - 3EP 6 7-1/8 4-5/8 481160S - 3 481160S - 3EP

9 BPE FITTINGS
