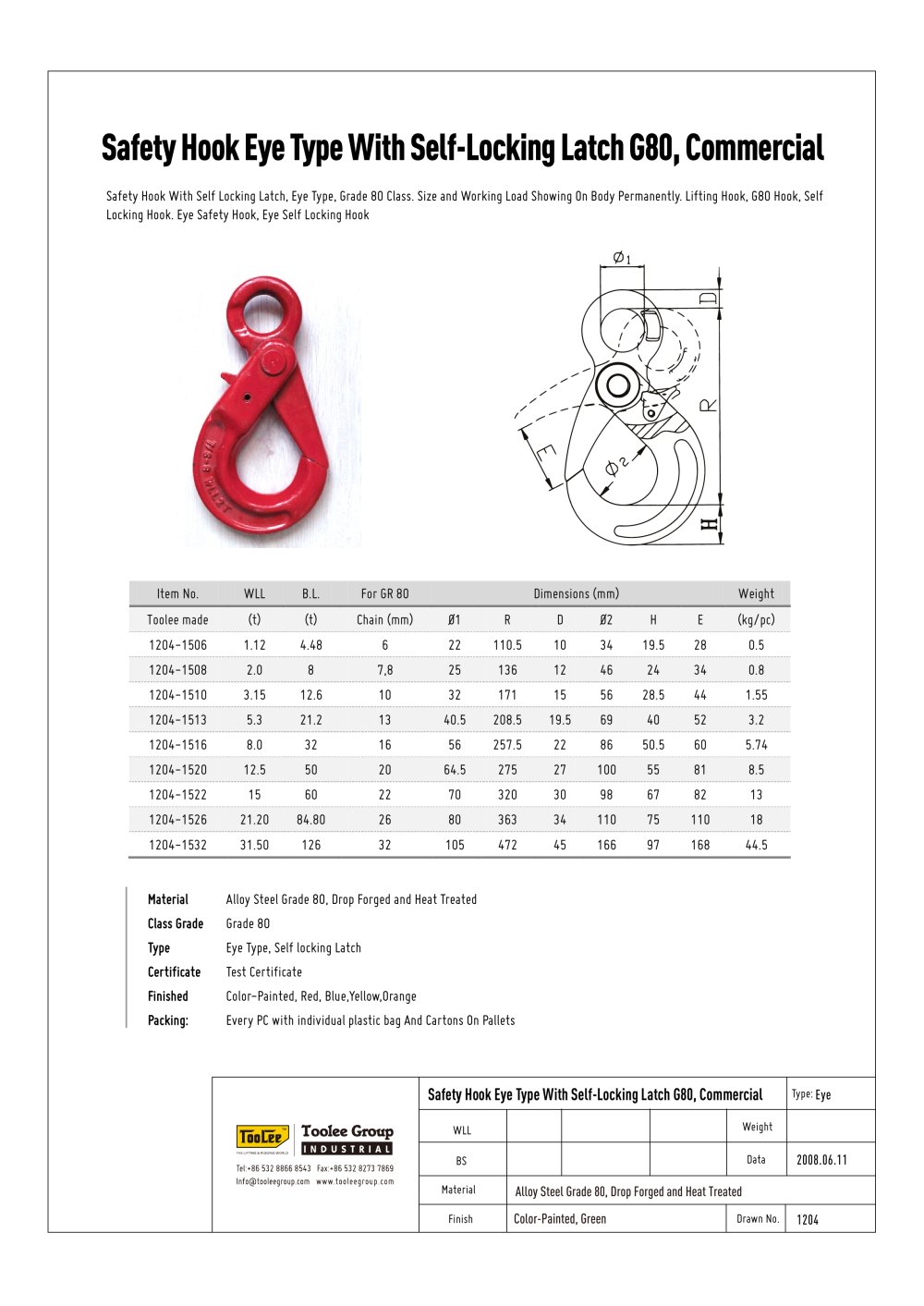

Type: Weight Data Drawn No. 2008.06.11 Eye Finish 1204 Material BS WLL Safety Hook Eye Type With Self-Locking Latch G80, Commercial Safety Hook Eye Type With Self-Locking Latch G80, Commercial Alloy Steel Grade 80, Drop Forged and Heat Treated Color-Painted, Green Safety Hook With Self Locking Latch, Eye Type, Grade 80 Class. Size and Working Load Showing On Body Permanently. Lifting Hook, G80 Hook, Self Locking Hook. Eye Safety Hook, Eye Self Locking Hook Item No. WLL B.L. For GR 80 Dimensions (mm) Weight Toolee made (t) (t) Chain (mm) Ø1 R D Ø2 H E (kg/pc) 1204-1506 1.12 4.48 6 22 110.5 10 34 19.5 28 0.5 1204-1508 2.0 8 7,8 25 136 12 46 24 34 0.8 1204-1510 3.15 12.6 10 32 171 15 56 28.5 44 1.55 1204-1513 5.3 21.2 13 40.5 208.5 19.5 69 40 52 3.2 1204-1516 8.0 32 16 56 257.5 22 86 50.5 60 5.74 1204-1520 12.5 50 20 64.5 275 27 100 55 81 8.5 1204-1522 15 60 22 70 320 30 98 67 82 13 1204-1526 21.20 84.80 26 80 363 34 110 75 110 18 1204-1532 31.50 126 32 105 472 45 166 97 168 44.5 Material Alloy Steel Grade 80, Drop Forged and Heat Treated Class Grade Grade 80 Type Eye Type, Self locking Latch Certificate Test Certificate Finished Color-Painted, Red, Blue,Yellow,Orange Packing: Every PC with individual plastic bag And Cartons On Pallets
