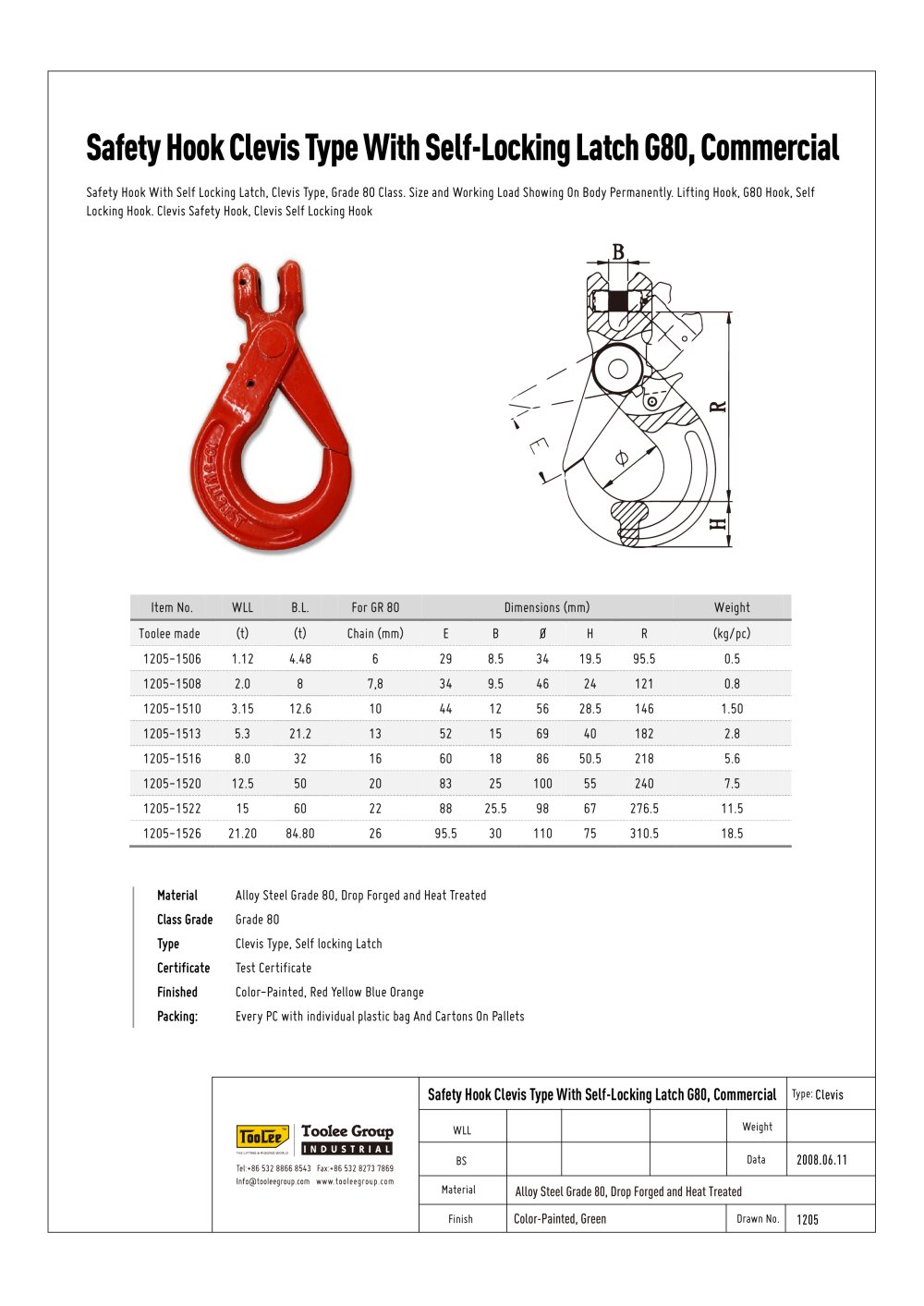

Type: Weight Data Drawn No. 2008.06.11 Clevis Finish 1205 Material BS WLL Safety Hook Clevis Type With Self-Locking Latch G80, Commercial Safety Hook Clevis Type With Self-Locking Latch G80, Commercial Alloy Steel Grade 80, Drop Forged and Heat Treated Color-Painted, Green Safety Hook With Self Locking Latch, Clevis Type, Grade 80 Class. Size and Working Load Showing On Body Permanently. Lifting Hook, G80 Hook, Self Locking Hook. Clevis Safety Hook, Clevis Self Locking Hook Item No. WLL B.L. For GR 80 Dimensions (mm) Weight Toolee made (t) (t) Chain (mm) E B Ø H R (kg/pc) 1205-1506 1.12 4.48 6 29 8.5 34 19.5 95.5 0.5 1205-1508 2.0 8 7,8 34 9.5 46 24 121 0.8 1205-1510 3.15 12.6 10 44 12 56 28.5 146 1.50 1205-1513 5.3 21.2 13 52 15 69 40 182 2.8 1205-1516 8.0 32 16 60 18 86 50.5 218 5.6 1205-1520 12.5 50 20 83 25 100 55 240 7.5 1205-1522 15 60 22 88 25.5 98 67 276.5 11.5 1205-1526 21.20 84.80 26 95.5 30 110 75 310.5 18.5 Material Alloy Steel Grade 80, Drop Forged and Heat Treated Class Grade Grade 80 Type Clevis Type, Self locking Latch Certificate Test Certificate Finished Color-Painted, Red Yellow Blue Orange Packing: Every PC with individual plastic bag And Cartons On Pallets
