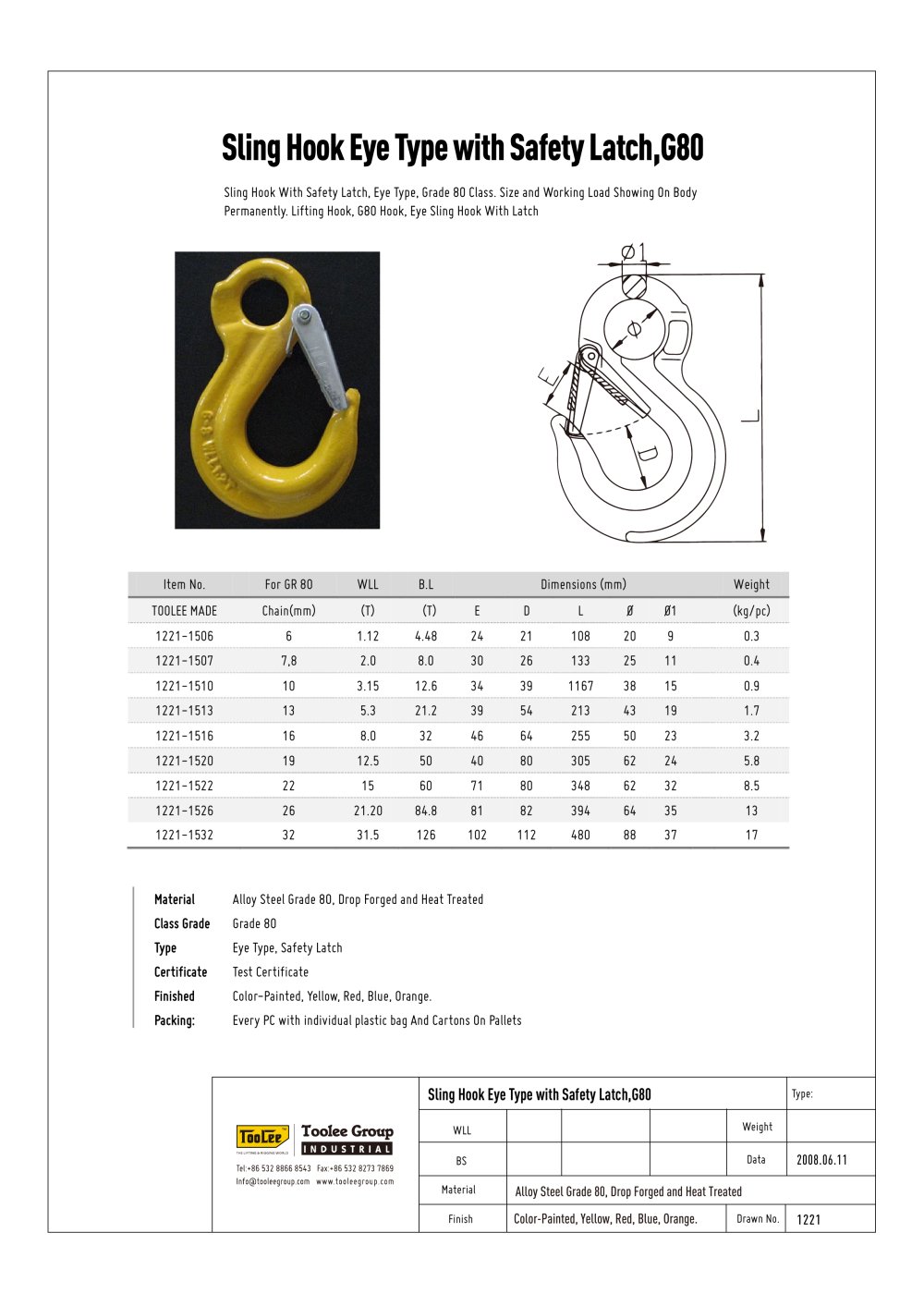

Type: Weight Data Drawn No. 2008.06.11 Finish 1221 Material BS WLL Sling Hook Eye Type with Safety Latch,G80 Sling Hook Eye Type with Safety Latch,G80 Alloy Steel Grade 80, Drop Forged and Heat Treated Color-Painted, Yellow, Red, Blue, Orange. Sling Hook With Safety Latch, Eye Type, Grade 80 Class. Size and Working Load Showing On Body Permanently. Lifting Hook, G80 Hook, Eye Sling Hook With Latch Item No. For GR 80 WLL B.L Dimensions (mm) Weight TOOLEE MADE Chain(mm) (T) (T) E D L Ø Ø1 (kg/pc) 1221-1506 6 1.12 4.48 24 21 108 20 9 0.3 1221-1507 7,8 2.0 8.0 30 26 133 25 11 0.4 1221-1510 10 3.15 12.6 34 39 1167 38 15 0.9 1221-1513 13 5.3 21.2 39 54 213 43 19 1.7 1221-1516 16 8.0 32 46 64 255 50 23 3.2 1221-1520 19 12.5 50 40 80 305 62 24 5.8 1221-1522 22 15 60 71 80 348 62 32 8.5 1221-1526 26 21.20 84.8 81 82 394 64 35 13 1221-1532 32 31.5 126 102 112 480 88 37 17 Material Alloy Steel Grade 80, Drop Forged and Heat Treated Class Grade Grade 80 Type Eye Type, Safety Latch Certificate Test Certificate Finished Color-Painted, Yellow, Red, Blue, Orange. Packing: Every PC with individual plastic bag And Cartons On Pallets
