Lashing Chain Long Link For RoRo or Bulk Lashing - TOOLEE GROUP INDUSTRIAL - #1

Text version of the page

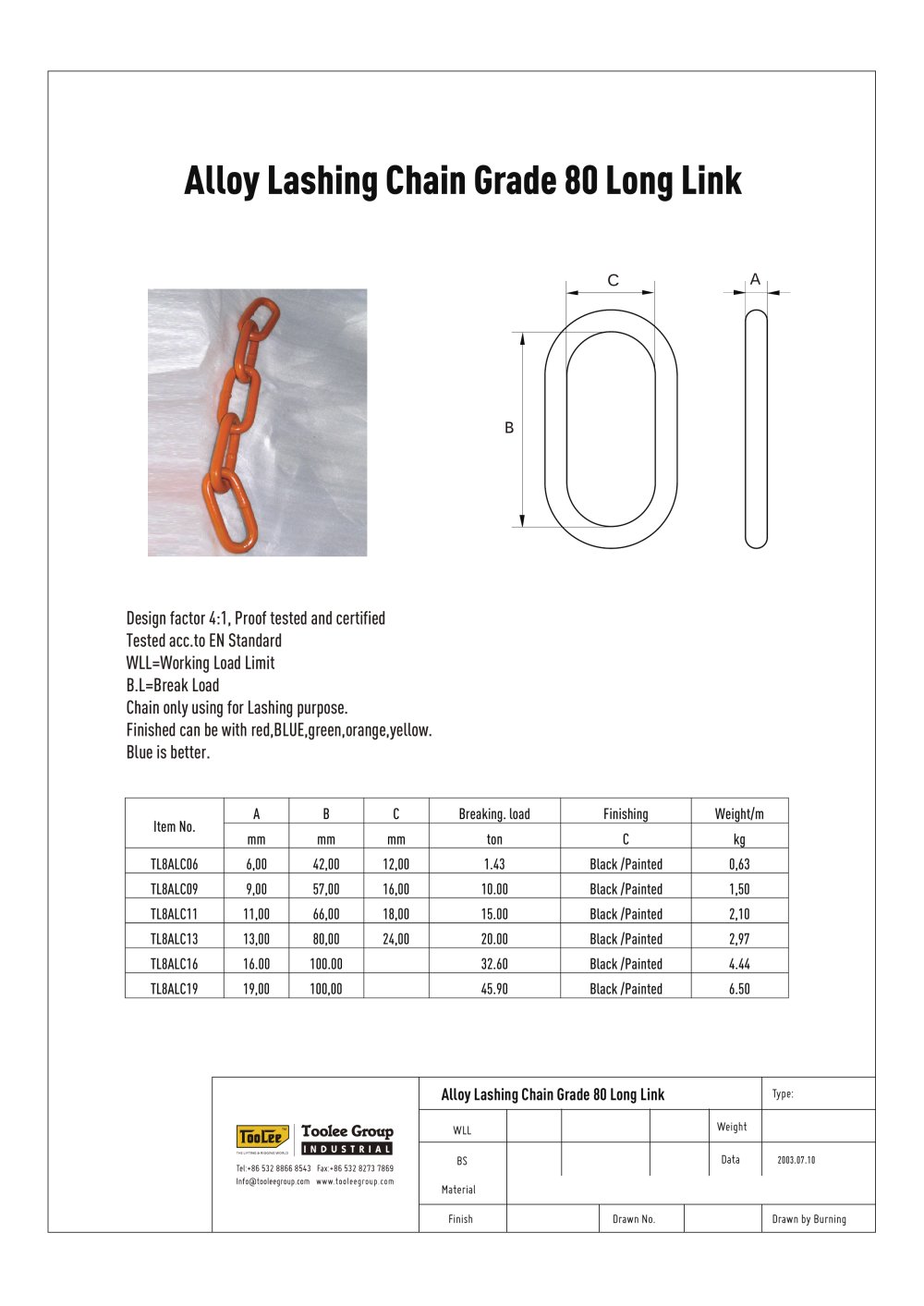

Drawn by Burning Type: Weight Data Drawn No. 2003.07.10 Finish Material BS WLL Alloy Lashing Chain Grade 80 Long Link Alloy Lashing Chain Grade 80 Long Link Design factor 4:1, Proof tested and certified Tested acc.to EN Standard WLL=Working Load Limit B.L=Break Load Chain only using for Lashing purpose. Finished can be with red,BLUE,green,orange,yellow. Blue is better. C B A Item No. A B C Breaking. load Finishing Weight/m mm mm mm ton C kg TL8ALC06 6,00 42,00 12,00 1.43 Black /Painted 0,63 TL8ALC09 9,00 57,00 16,00 10.00 Black /Painted 1,50 TL8ALC11 11,00 66,00 18,00 15.00 Black /Painted 2,10 TL8ALC13 13,00 80,00 24,00 20.00 Black /Painted 2,97 TL8ALC16 16.00 100.00 32.60 Black /Painted 4.44 TL8ALC19 19,00 100,00 45.90 Black /Painted 6.50 alloy steel made in China Ro Ro Lashing
