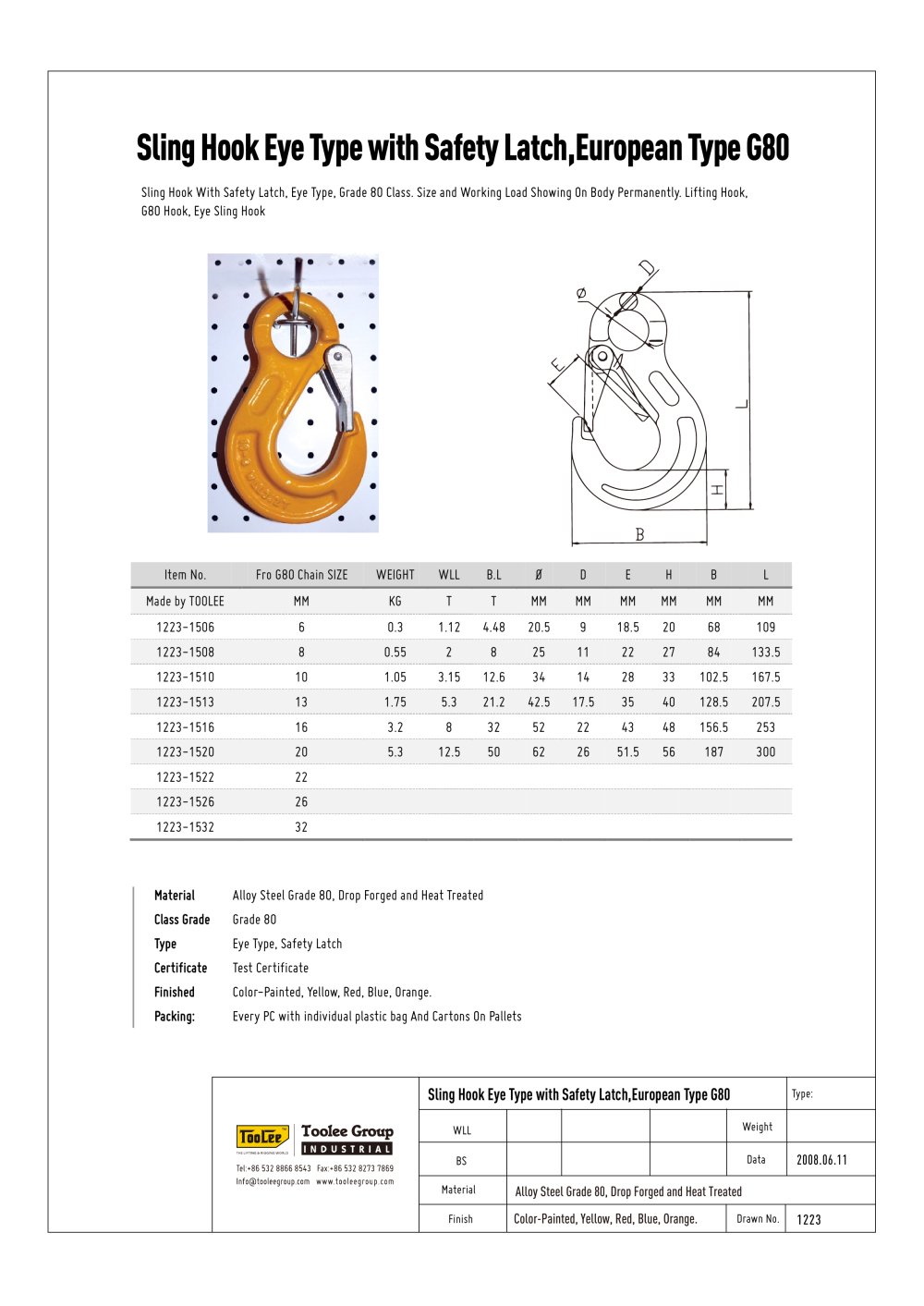

Type: Weight Data Drawn No. 2008.06.11 Finish 1223 Material BS WLL Sling Hook Eye Type with Safety Latch,European Type G80 Sling Hook Eye Type with Safety Latch,European Type G80 Alloy Steel Grade 80, Drop Forged and Heat Treated Color-Painted, Yellow, Red, Blue, Orange. Sling Hook With Safety Latch, Eye Type, Grade 80 Class. Size and Working Load Showing On Body Permanently. Lifting Hook, G80 Hook, Eye Sling Hook Item No. Fro G80 Chain SIZE WEIGHT WLL B.L Ø D E H B L Made by TOOLEE MM KG T T MM MM MM MM MM MM 1223-1506 6 0.3 1.12 4.48 20.5 9 18.5 20 68 109 1223-1508 8 0.55 2 8 25 11 22 27 84 133.5 1223-1510 10 1.05 3.15 12.6 34 14 28 33 102.5 167.5 1223-1513 13 1.75 5.3 21.2 42.5 17.5 35 40 128.5 207.5 1223-1516 16 3.2 8 32 52 22 43 48 156.5 253 1223-1520 20 5.3 12.5 50 62 26 51.5 56 187 300 1223-1522 22 1223-1526 26 1223-1532 32 Material Alloy Steel Grade 80, Drop Forged and Heat Treated Class Grade Grade 80 Type Eye Type, Safety Latch Certificate Test Certificate Finished Color-Painted, Yellow, Red, Blue, Orange. Packing: Every PC with individual plastic bag And Cartons On Pallets
