SELECT THE PERFORMANCE YOU NEED

Choose from: • Two Bearing Models • Three Actuator Sizes
(six by the end of 2007) • Built to Your Specified Stroke Length!

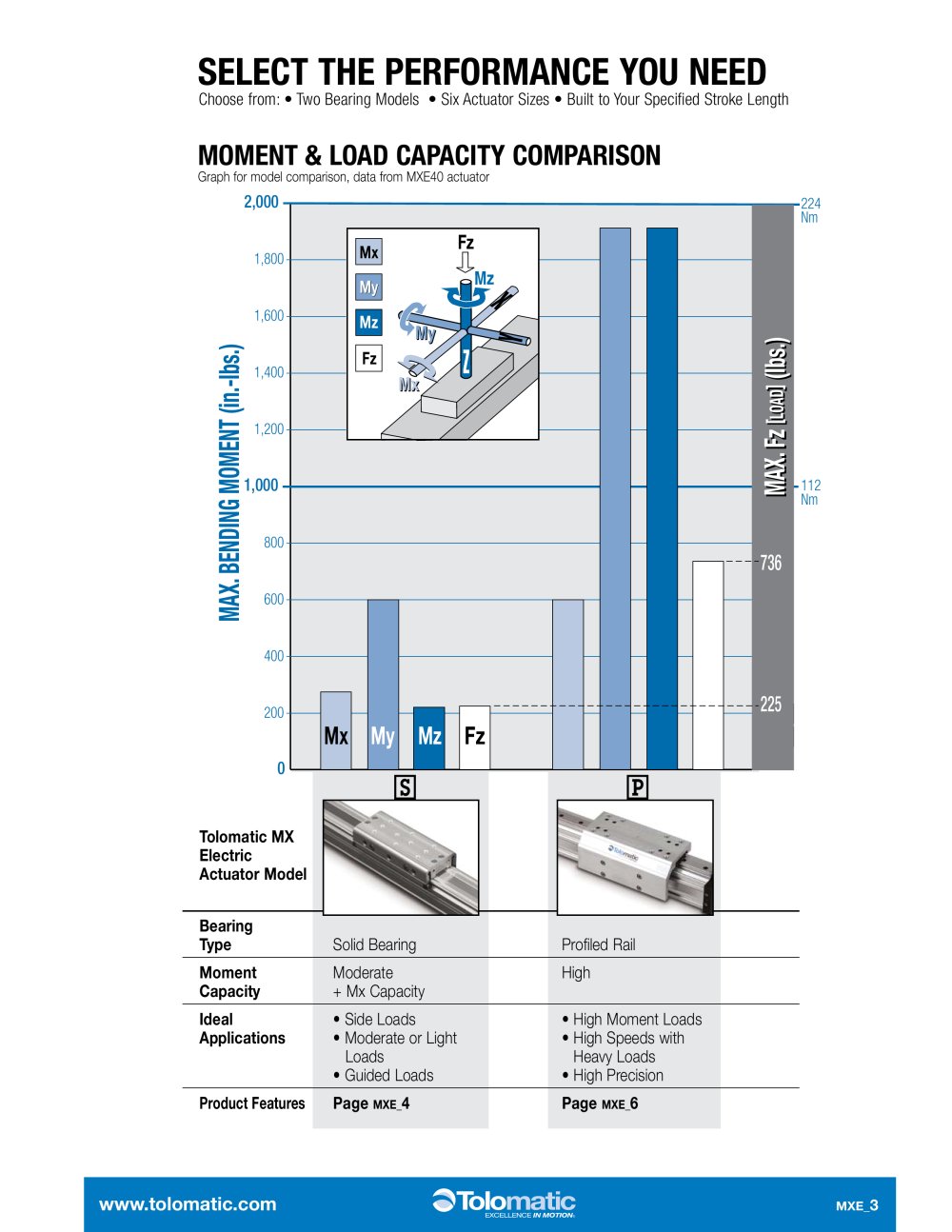

MOMENT & LOAD CAPACITY COMPARISON

Graph for model comparison, data from MXE40 actuator

MxFzMyMyMz

Fz

1,8001,600 1,400 1,200800600 400200 224 Nm 112 Nm (lbs.) (lbs.)MAX. Fz ] ] LOAD LOAD [ [ MAX. Fz MAX. BENDING MOMENT (in.-lbs.)

225736 Mx MyMz Fz

0 1,000 2,000

PS

Tolomatic MX Electric Actuator Model Bearing Type Solid Bearing Profiled Rail Moment Moderate Capacity + Mx Capacity High Ideal • Side Loads • High Moment Loads Applications • Impact Loads • High Speeds with Heavy Loads • High Precision Product Features Page 4 Page 6
