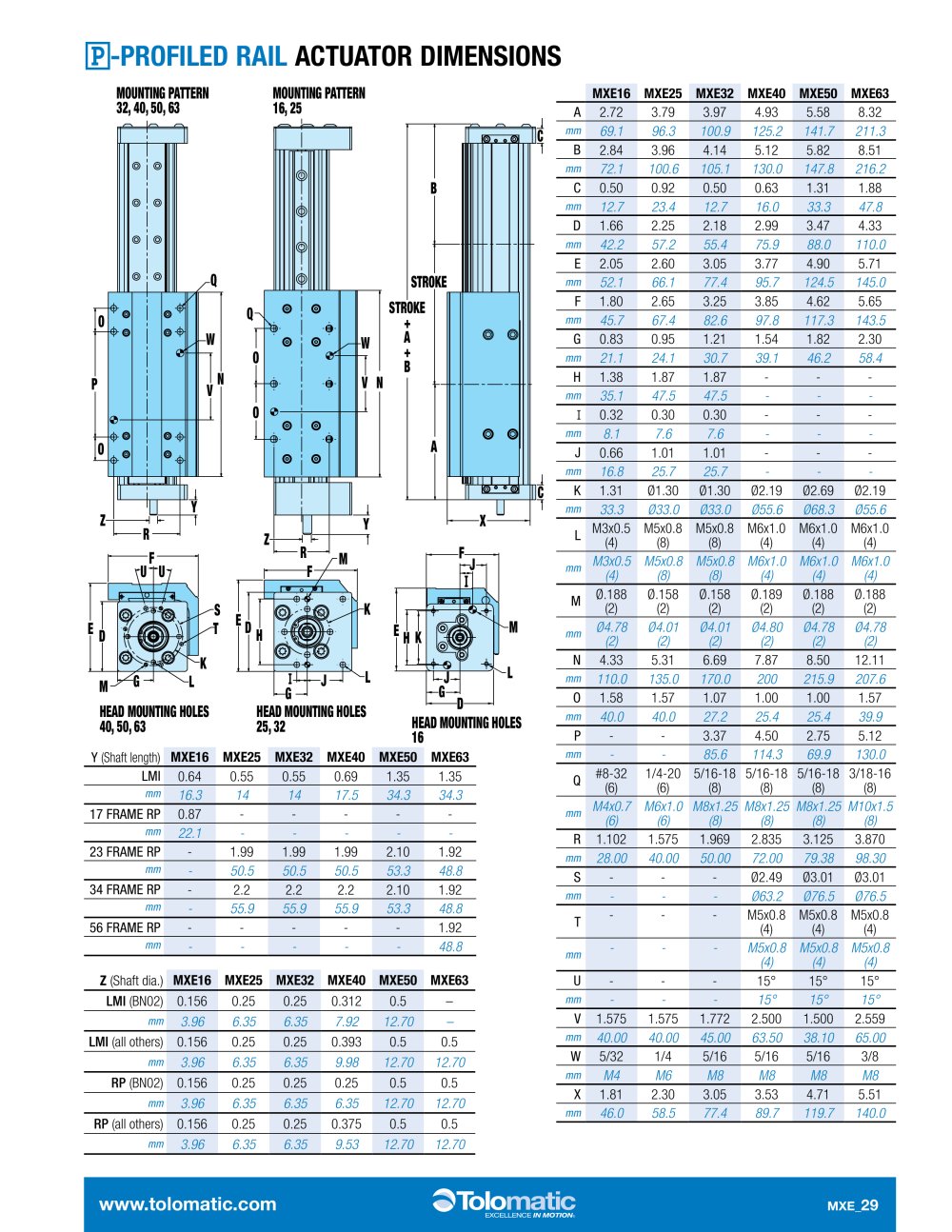

P -PROFILED RAIL REVERSE PARALLEL MOTOR MOUNTING DIMENSIONS

MXE25P

REVERSE-PARALLELTOP (RPT) REVERSE-PARALLEL LEFT (RPL) REVERSE-PARALLEL RIGHT (RPR)

mounting surface shown UP mounting surface shown UP mounting surface shown UP mounting surface shown UP

BOTTOM MOUNTREVERSE-PARALLELBOTTOM (RPB) TOP MOUNT SIDE MOUNT (Right Shown)SIDE MOUNT (Left Shown)

FAG JHCK DB WEIGHT OF REDUCTION DRIVEREDUCTION INERTIAAT MOTOR SHAFT 1:12:11:12:1 MOTOR lbs kg lbs kg lb-in
2 kg-cm
2 lb-in
2 kg-cm
2 MRV BRUSHLESS ALL FRAME SIZES 2.06 0.93 2.06 0.93 0.087 0.2559 0.112 0.3291 STEPPER 23-FRAME 1.92 0.87 1.92 0.87 0.022 0.064 0.046 0.135 STEPPER 34-FRAME 2.34 1.06 2.34 1.06 0.025 0.073 0.050 0.146

REDUCTION EFFICIENCY: 0.95

ABCDFGHJKMOTOR in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm MRV21 1.44 36.6 6.96 176.8 2.13 54.1 3.25 82.6 1.48 37.6 1.13 28.7 4.75 120.7 1.18 30.0 1.38 35.1 MRV22 1.44 36.6 6.96 176.8 2.13 54.1 3.25 82.6 1.48 37.6 1.13 28.7 5.75 146.1 1.18 30.0 1.38 35.1
BRUSHLESS MRV23 1.44 36.6 6.96 176.8 2.13 54.1 3.25 82.6 1.48 37.6 1.13 28.7 6.75 171.5 1.18 30.0 1.38 35.1 MRV24 1.44 36.6 6.96 176.8 2.13 54.1 3.25 82.6 1.48 37.6 1.13 28.7 7.75 196.9 1.18 30.0 1.38 35.1 MRS21 1.44 36.6 6.96 176.8 2.13 54.1 3.25 82.6 1.48 37.6 1.13 28.7 1.71 43.4 1.18 30.0 1.38 35.1 MRS22 1.44 36.6 6.96 176.8 2.13 54.1 3.25 82.6 1.48 37.6 1.13 28.7 2.19 55.6 1.18 30.0 1.38 35.1 MRS23 1.44 36.6 6.96 176.8 2.13 54.1 3.25 82.6 1.48 37.6 1.13 28.7 3.05 77.5 1.18 30.0 1.38 35.1
STEPPER MRS31 1.96 49.8 7.47 189.7 2.38 60.5 4.00 101.6 0.90 22.9 0.55 14.0 3.11 79.0 0.66 16.8 0.8 20.3 MRS32 1.96 49.8 7.47 189.7 2.38 60.5 4.00 101.6 0.90 22.9 0.55 14.0 4.63 117.6 0.66 16.8 0.8 20.3 MRS33 1.96 49.8 7.47 189.7 2.38 60.5 4.00 101.6 0.90 22.9 0.55 14.0 6.14 156.0 0.66 16.8 0.8 20.3
