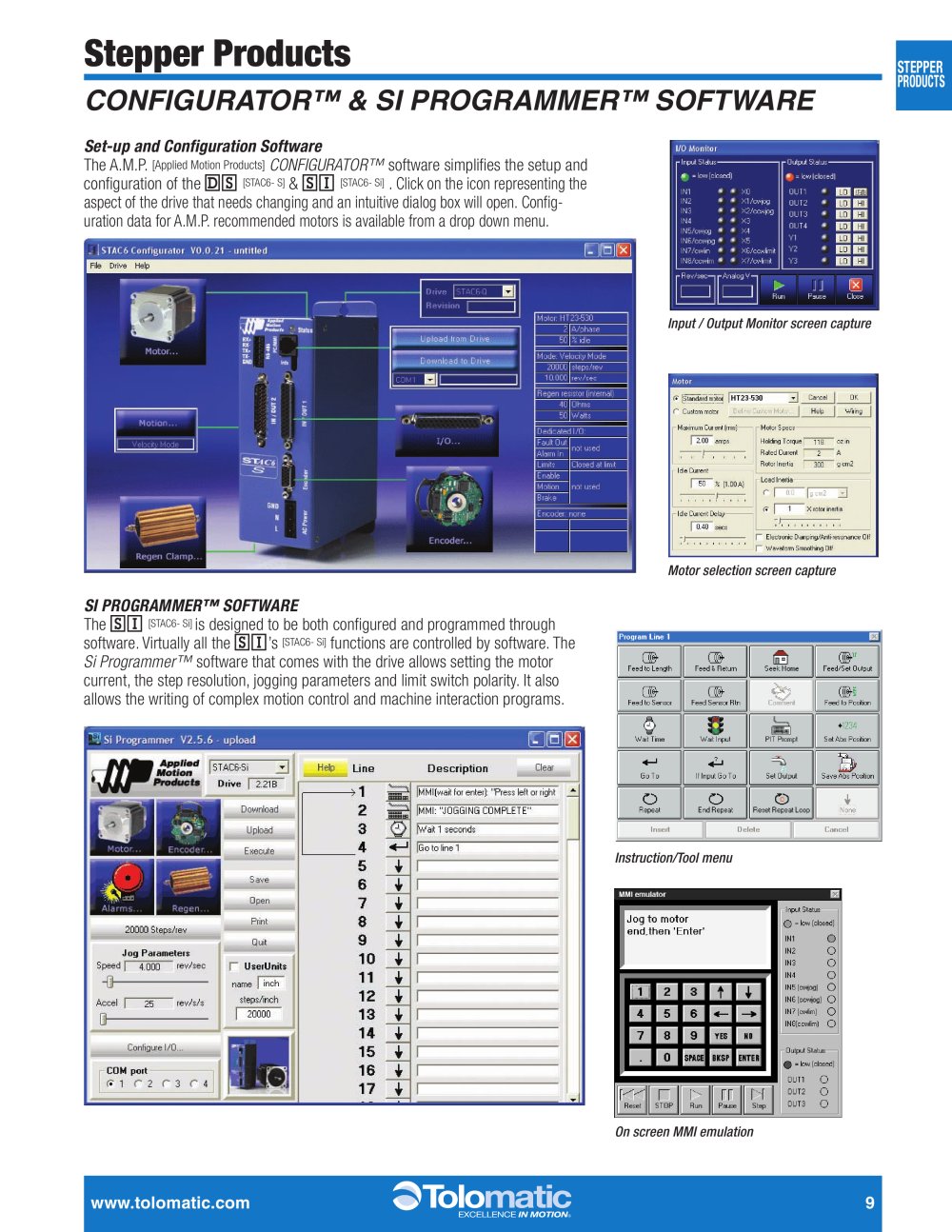

| Stepper Products | |||||||||||||||||||||||||||||
| CONFIGURATOR™ & SI PROGRAMMER™ SOFTWARE | |||||||||||||||||||||||||||||
| Set-up and Configuration Software The A.M.P. [Applied Motion Products] CONFIGURATOR™ software simplifies the setup and configuration of the DS [STAC6- S] & Si[STAC6- Si]. Click on the icon representing the aspect of the drive that needs changing and an intuitive dialog box will open. Configuration data for A.M.P. recommended motors is available from a drop down menu. | |||||||||||||||||||||||||||||
| ■Output Status- £ = low (closed) CTUT1 • I 0UT2 • I OLIT3 » I QLIT4 » I Y1 • I „2 • I | |||||||||||||||||||||||||||||
| X3 Xi X5 XĖ/ccwlimir X7/ci"l!mit | |||||||||||||||||||||||||||||
| JJ Pause | |||||||||||||||||||||||||||||
| Run | |||||||||||||||||||||||||||||
| Input/Output Monitor screen capture | |||||||||||||||||||||||||||||
| Motor selection screen capture | |||||||||||||||||||||||||||||
| SI PROGRAMMER™ SOFTWARE The SI[STAC6-Si] is designed to be both configured and programmed through software. Virtually all the Si's[STAC6- Si] functions are controlled by software. The Si Programmer™ software that comes with the drive allows setting the motor current, the step resolution, jogging parameters and limit switch polarity. It also allows the writing of complex motion control and machine interaction programs. | |||||||||||||||||||||||||||||
| Instruction/Tool menu | |||||||||||||||||||||||||||||
| On screen MMI emulation | |||||||||||||||||||||||||||||
| ^Tolomatic | |||||||||||||||||||||||||||||
| www.tolomatic.com | |||||||||||||||||||||||||||||
| EXCELLENCE IN MOTION. | |||||||||||||||||||||||||||||
