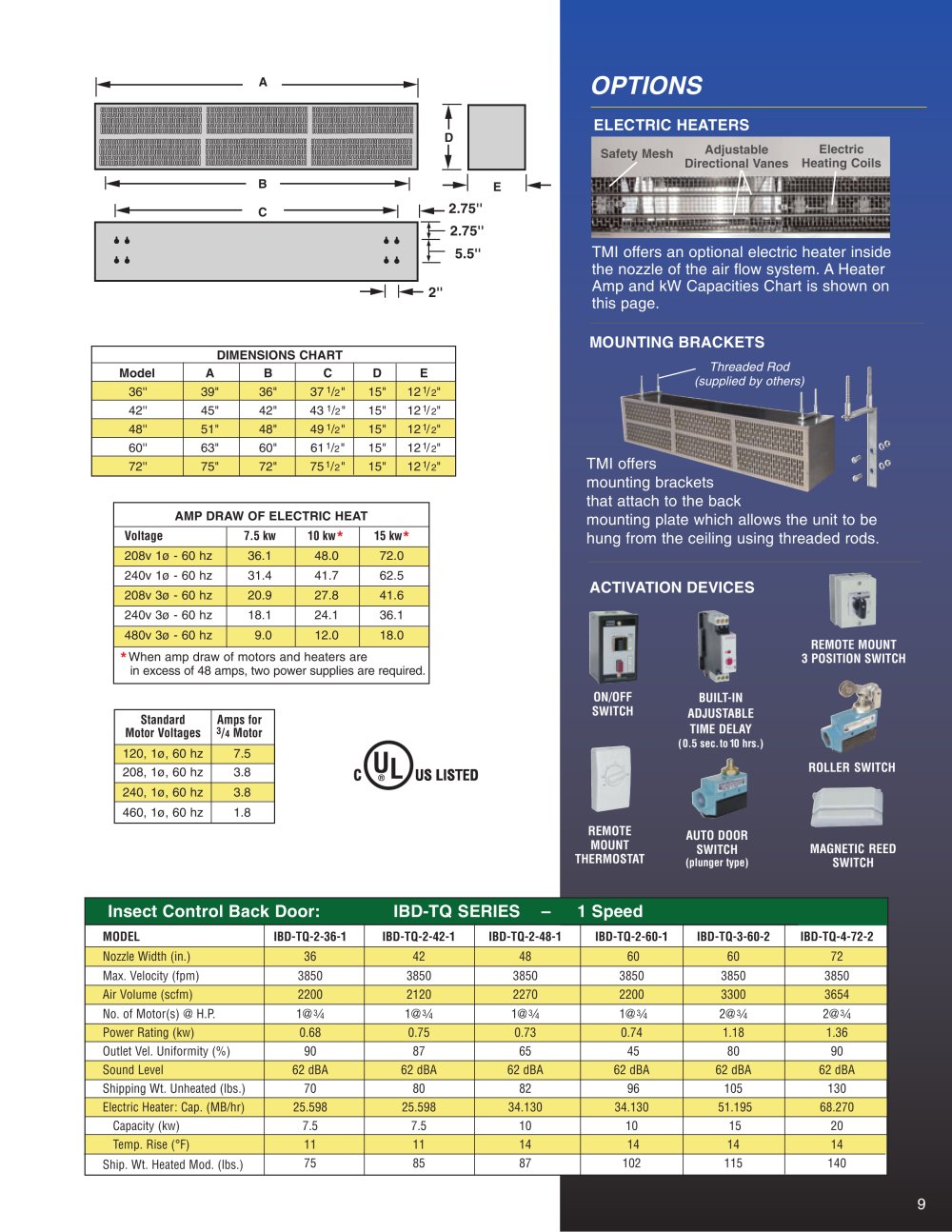

OPTIONS
ELECTRIC HEATERS
Safetv Mesh Adjustable Electric
Directional Vanes Heating Coils
E
■ 2.75''
* 4
_H 2.75''
TMI offers an optional electric heater inside the nozzle of the air flow system. A Heater Amp and kW Capacities Chart is shown on this page.
5.5''
2''
MOUNTING BRACKETS
Threaded Rod \ J (supplied by others)
Model
A
B
C
_D
E
36''
39"
36"
371/2"
15
42''
45"
42"
431/2"
15
48''
51"
48"
491/2"
15
60''
63"
60"
61 1/2"
15
72''
75"
72"
751/2"
15
AMP DRAW OF ELECTRIC HEAT
Voltage
7.5 kw
10 kw *
1
208v 10 - 60 hz
36.1
48.0
7
2.0
240v 10 - 60 hz
31.4
41.7
Ķ
2.5
208v 30 - 60 hz
20.9
27.8
£
1.6
240v 30 - 60 hz
18.1
24.1
m
480v 30 - 60 hz
9.0
12.0
* When amp draw of motors and heaters are in excess of 48 amps, two power supplies are r
equired.
tmi offers ^4^g:^ . ;i«
mounting brackets ^"•Miijj ° £ that attach to the back mounting plate which allows the unit to be hung from the ceiling using threaded rods.
ACTIVATION DEVICES
REMOTE MOUNT
3 POSITION SWITCH
ON/OFF SWITCH
BUILT-IN ADJUSTABLE TIME DELAY (0.5 sec.to10 hrs.)
Standard Motor Voltages
Amps for 3/4 Motor
120, 10, 60 hz
7.5
208, 10, 60 hz
3.8
240, 10, 60 hz
3.8
460, 10, 60 hz
1.8
ROLLER SWITCH
US LISTED
REMOTE MOUNT THERMOSTAT
AUTO DOOR
SWITCH (plunger type)
MAGNETIC REED SWITCH
< Door:
IBD"IQ Sl
ERIES -
1 Speed
MODEL
IBD-TQ-2-36-1
IBD-TQ-2-42-1
IBD-TQ-2-48-1
IBD-TQ-2-60-1
IBD-TQ-3-60-2
IBD-TQ-4-72-2
Nozzle Width (in.)
36
42
48
60
60
72
Max. Velocity (fpm)
3850
3850
3850
3850
3850
3850
Air Volume (scfm)
2200
2120
2270
2200
3300
3654
No. of Motor(s) @ H.P.
1@3/4
1@3/4
1@3/4
1@3/4
2@3/4
Power Rating (kw)
0.68
0.75
0.73
0.74
1.18
1.36
Outlet Vel. Uniformity (%)
90
87
65
45
80
90
Sound Level
62 dBA
62 dBA
62 dBA
62 dBA
62 dBA
62 dBA
Shipping Wt. Unheated (lbs.)
70
80
82
96
105
130
Electric Heater: Cap. (MB/hr)
25.598
25.598
34.130
34.130
51.195
68.270
Capacity (kw)
7.5
7.5
10
10
15
20
Temp. Rise (°F)
11
11
14
14
14
14
Ship. Wt. Heated Mod. (lbs.)
75
85
87
102
115
140
9
