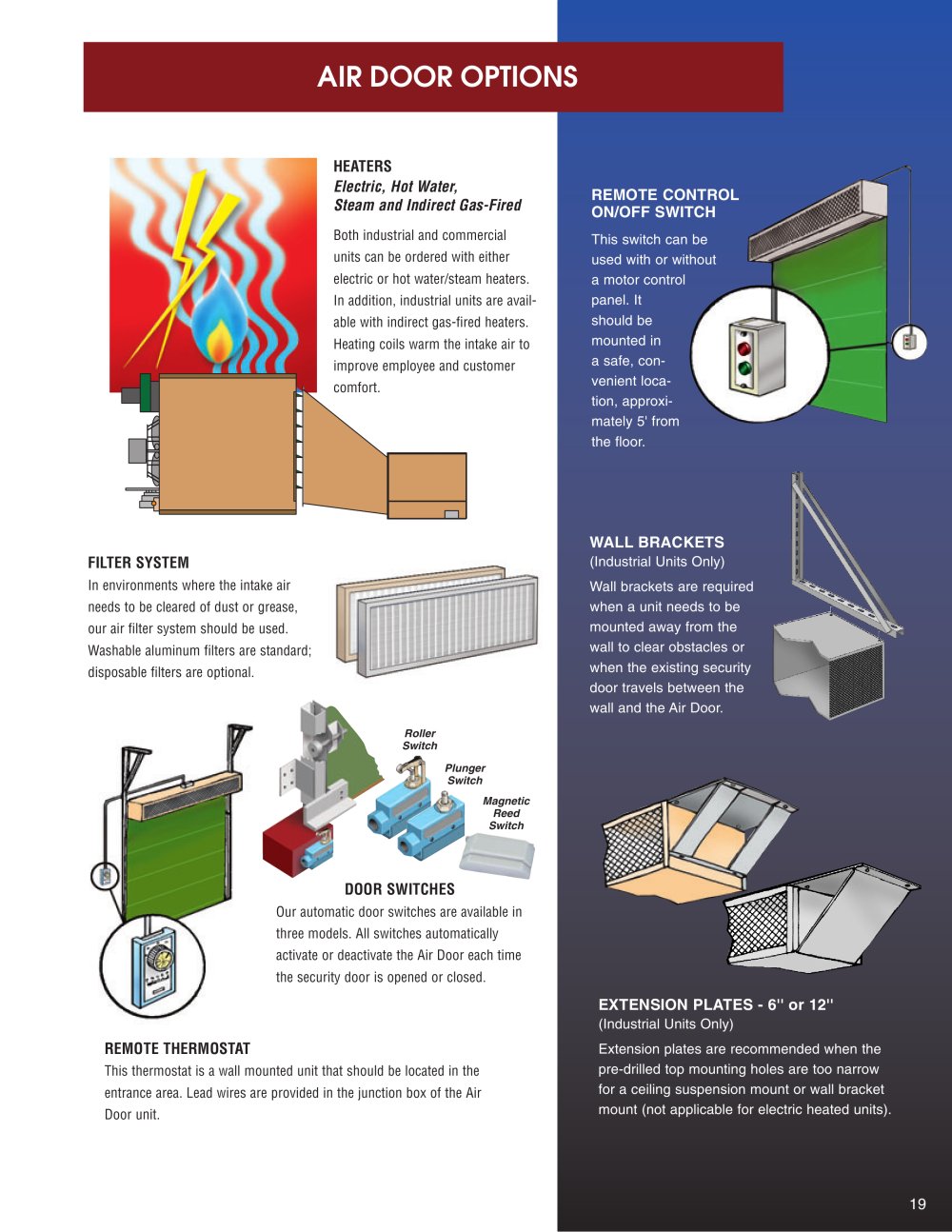

HEATERS

Both industrial and commercial units can be ordered with either electric or hot water/steam heaters. In addition, industrial units are avail­able with indirect gas-fired heaters. Heating coils warm the intake air to improve employee and customer comfort.

This switch can be used with or without a motor control panel. It should be mounted in a safe, con­venient loca­tion, approxi­mately 5' from the floor.

(Industrial Units Only)

Wall brackets are required when a unit needs to be mounted away from the wall to clear obstacles or when the existing security door travels between the wall and the Air Door.

FILTER SYSTEM

In environments where the intake air needs to be cleared of dust or grease, our air filter system should be used. Washable aluminum filters are standard; disposable filters are optional.

DOOR SWITCHES

Our automatic door switches are available in three models. All switches automatically activate or deactivate the Air Door each time the security door is opened or closed.

(Industrial Units Only)

Extension plates are recommended when the pre-drilled top mounting holes are too narrow for a ceiling suspension mount or wall bracket mount (not applicable for electric heated units).

REMOTE THERMOSTAT

This thermostat is a wall mounted unit that should be located in the entrance area. Lead wires are provided in the junction box of the Air Door unit.

19
