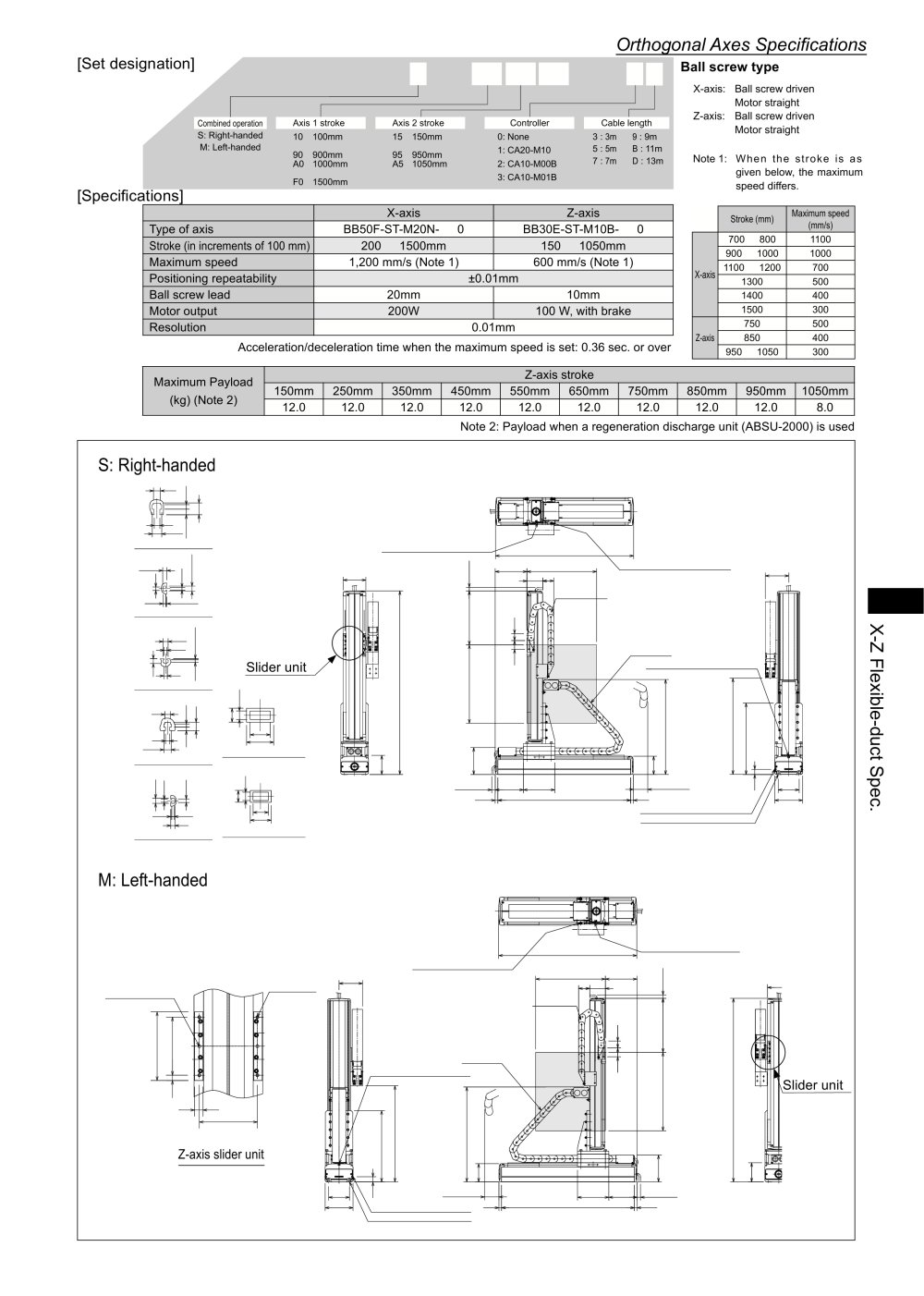

| | | Orthogonal Axes Specifications | | |
| | | |
| | | [Set designation] | | |
| | | BA2 - A5 - B2A S A - 40 45 00 - OF 1 3 Bal1 screw type | | |
| | | |
| | | |
| | | X-axis: Ball screw driven Motor straight Z-axis: Ball screw driven Motor straight Note 1: When the stroke is as given below, the maximum speed differs. | | |
| | | Combined operation S: Right-handed M: Left-handed | | Controller | | Cable length 3 : 3m 9 : 9m 5 : 5m B : 11m 7 : 7m D: 13m | | |
| | | Axis 1 stroke | | Axis 2 stroke | | |
| | | |
| | | 10 : 100mm | | 15 : 150mm | | 0: None 1: CA20-M10 2: CA10-M00B 3: CA10-M01B | | |
| | | |
| | | |
| | | 90 : 900mm AO : 1000mm I F0 : 1500mm | | 95 : 950mm A5 : 1050mm | | |
| | | |
| | | |
| | | |
| | | |
| | | [Specifications] | | |
| | | |
| | | | | | | | | | | | X-axis | Z-axis | | | | Type of axis | BB50F-ST-M20N- □ 0 | BB30E-ST-M10B- □ 0 | | | | Stroke (in increments of 100 mm) | 200 ~ 1500mm | 150 ~ 1050mm | | | | Maximum speed | 1,200 mm/s (Note 1) | 600 mm/s (Note 1) | | | | Positioning repeatability | ±0.01mm | | | | Ball screw lead | 20mm | 10mm | | | | Motor output | 200W | 100 W, with brake | | | | Resolution | 0.01mm | | | | | | | | | | |
| | | | | | | | | | | | Stroke (mm) | Maximum speed (mm/s) | | | | | 700 ~ 800 | 1100 | | | | | 900 ~ 1000 | 1000 | | | | X-axis | 1100 ~ 1200 | 700 | | | | 1300 | 500 | | | | | 1400 | 400 | | | | | 1500 | 300 | | | | | 750 | 500 | | | | Z-axis | 850 | 400 | | | | | 950 ~ 1050 | 300 | | | | | | | | | | |
| | | |
| | | |
| | | Acceleration/deceleration time when the maximum speed is set: 0.36 sec. or over | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | Maximum Payload (kg) (Note 2) | Z-axis stroke | | | | 150mm | 250mm | 350mm | 450mm | 550mm | 650mm | 750mm | 850mm | 950mm | 1050mm | | | | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 8.0 | | | | | | | | | | | | | | | | | | |
| | | |
| | | Note 2: Payload when a regeneration discharge unit (ABSU-2000) is used | | |
| | | |
| | | S: Right-handed | | |
| | | |
| | | | | |
| | | Dimension"A°of T-slot DimensionB'of T-slot | | |
| | | T-slot for M4 hexagon nut (T-slot E) | | |
| | | |
| | | |
| | | T-slot for M6 hexagon bolt (T-slot D) | | |
| | | |
| | | |
| | | 7 3 | | |
| | | |
| | | 4 2 | | |
| | | J| |L Ж | | |
| | | Flexible duct T-slot for M4 hexagon nut (T-slot C) | | |
| | | |
| | | |
| | | |
| | | DimensionC'of T-slot | | |
| | | |
| | | Section of flexible duct (1) | | |
| | | |
| | | DimensionD'of T-slot | | |
| | | |
| | | S "O CD О | | |
| | | T-slot for M4 hexagon nut (T-slot B) / T-slot for M8 hexagon bolt (T-slot A) | | |
| | | |
| | | 36 | | |
| | | |
| | | |
| | | DimensionE'of T-slot Section of flexible duct (2) | | |
| | | |
| | | M: Left-handed | | |
| | | |
| | | T-slot for M4 hexagon nut (T-slot E) | | |
| | | |
| | | T-slot for M6 hexagon bolt (T-slot | | |
| | | |
| | | 13( | | |
| | | 4- M6 depthlb | | |
| | | |
| | | |
| | | 2-06H7, depth 6 hole pitch 110±0.02 | | |
| | | |
| | | Flexible duct T-slot for M4 hexagon nut (T-slot C) | | |
| | | |
| | | Slider unit | | |
| | | |
| | | Z-axis slider unit | | |
| | | |
| | | T-slot for M4 hexagon nut (T-slot B) T-slot for M8 hexagon bolt (T-slot A) | | |
| | | |
| | | 85 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
