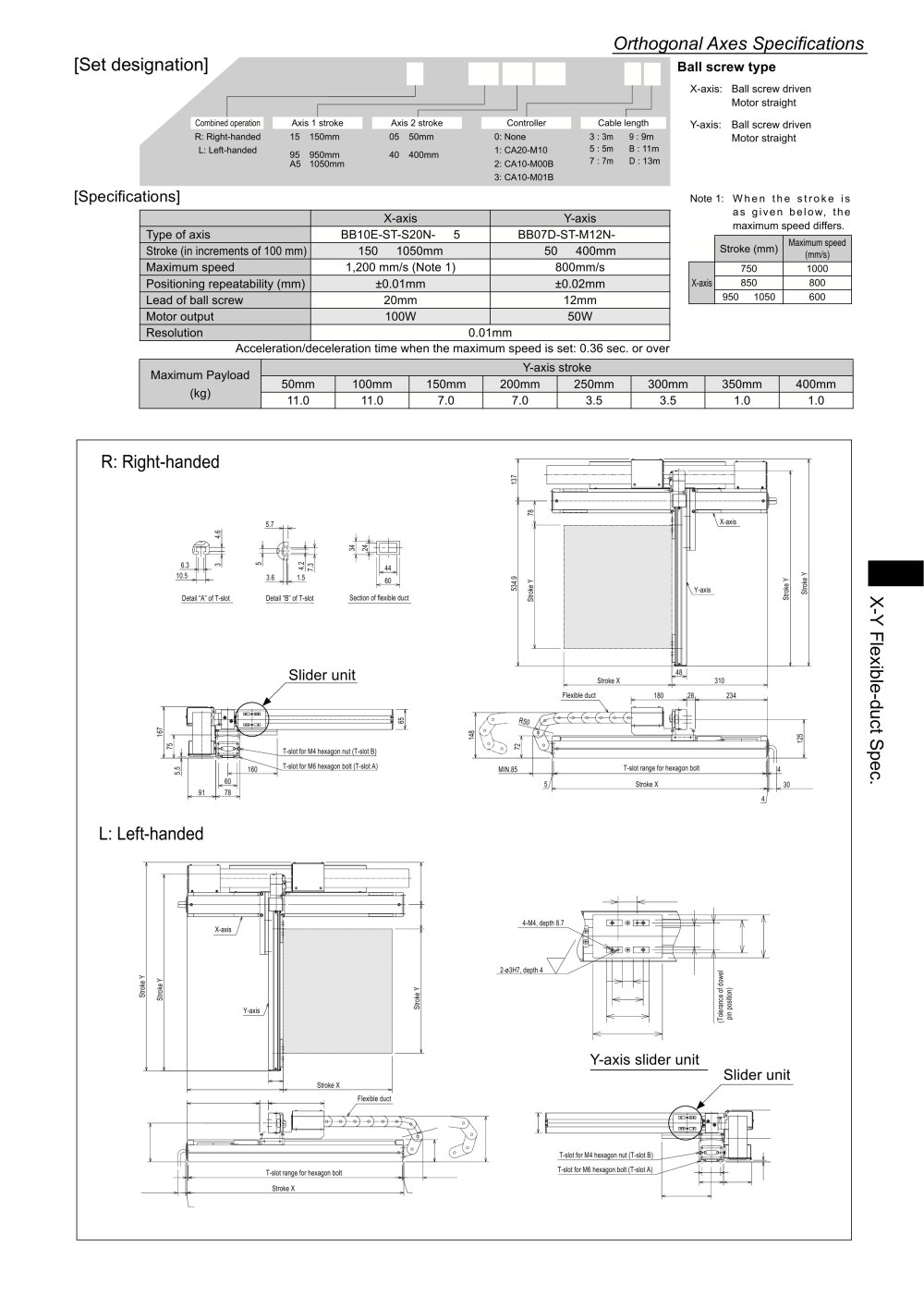

Orthogonal Axes Specifications
[Set designation] BA2 — Al — A2C R A — 45 40 00 — OF 1 3 Bal1 screw type
X-axis: Ball screw driven Motor straight
Y-axis: Ball screw driven Motor straight
Combined operation R: Right-handed L: Left-handed
Controller
Cable length 3 : 3m 9 : 9m 5 : 5m B : 11m 7 : 7m D: 13m
Axis 1 stroke
Axis 2 stroke
15 : 150mm
05 : 50mm
0: None 1: CA20-M10 2: CA10-M00B 3: CA10-M01B
95 : 950mm A5 : 1050mm
40 : 400mm
[Specifications]
Note 1: When the stroke is as given below, the maximum speed differs.
X-axis
Y-axis
Type of axis
BB10E-ST-S20N- □ 5
BB07D-ST-M12N- □□
Stroke (in increments of 100 mm)
150 ~ 1050mm
50 ~ 400mm
Maximum speed
1,200 mm/s (Note 1)
800mm/s
Positioning repeatability (mm)
±0.01mm
±0.02mm
Lead of ball screw
20mm
12mm
Motor output
100W
50W
Resolution
0.01mm
Stroke (mm)
Maximum speed (mm/s)
X-axis
750
1000
850
800
950 ~ 1050
600
Acceleration/deceleration time when the maximum speed is set: 0.36 sec. or over
Maximum Payload (kg)
Y-axis stroke
50mm
100mm
150mm
200mm
250mm
300mm
350mm
400mm
11.0
11.0
7.0
7.0
3.5
3.5
1.0
1.0
R: Right-handed
N
X-axis
5.7
6.3 . 10.5 ."
3.6
Detail "B" ofT-slot
60
Section ofJexible duct
Y-axis
Detail"A"ofT-slot
X
I
Y
Slider unit
48
Stroke X
310
Flexible duct
180 . ,28
234
S
T3 CD O
T-slotrangeforhexagon bolt
MIN.85
Stroke X +348
«IN. 30
4
L: Left-handed
hl
X-axis
Y-axis
Y-axis slider unit
Slider unit
48
51
