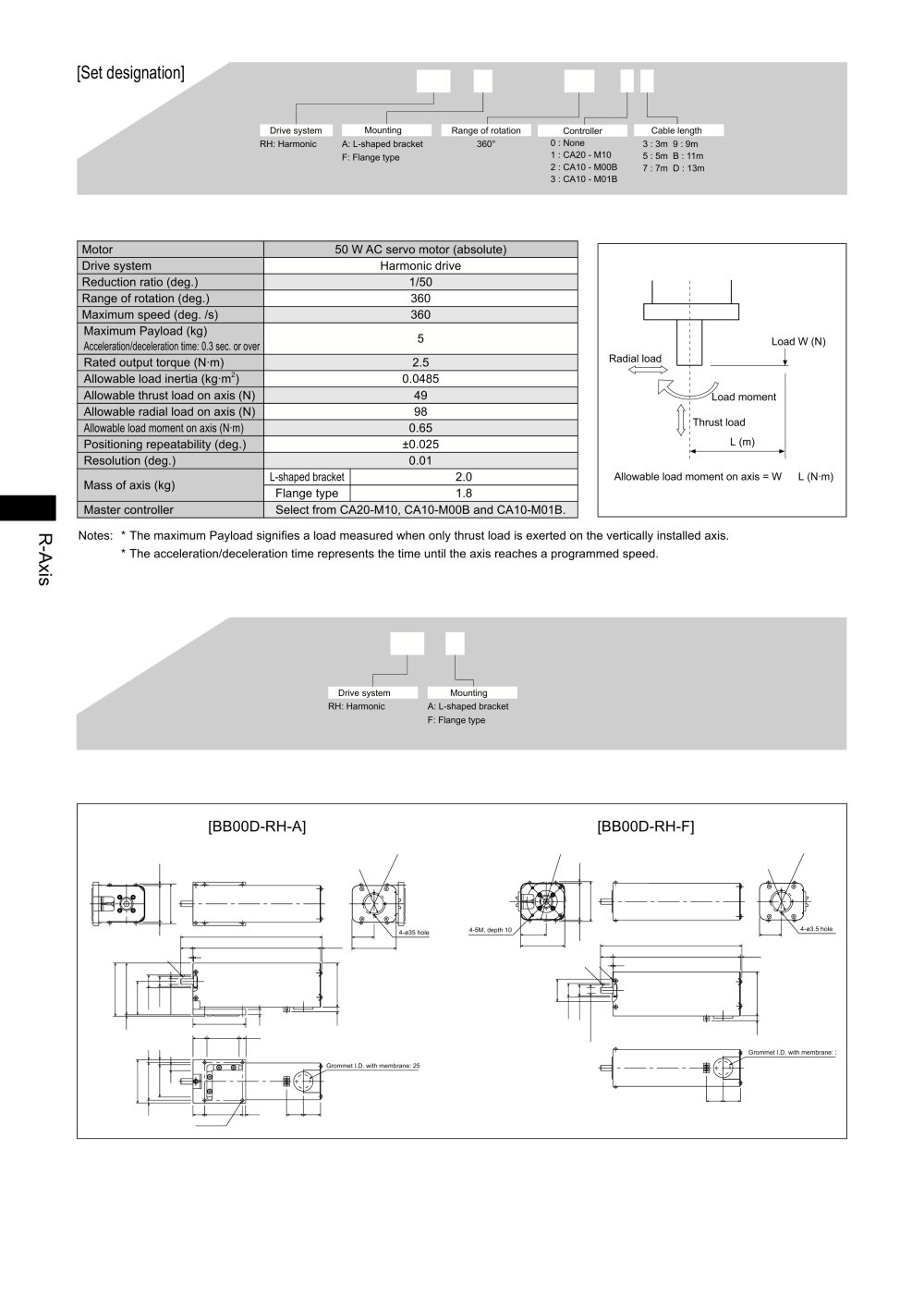

[Set designation]
BA2 - 00D - RH - A 00N - 36
1 3
Drive system RH: Harmonic
Mounting
Range of rotation
Cable length 3 : 3m 9 : 9m 5 : 5m B : 11m 7 : 7m D: 13m
Controller
0 : None
1 : CA20 - M10
2 : CA10 - M00B
3 : CA10 - M01B
A: L-shaped bracket F: Flange type
360°
[Specifications]
Motor
50 W AC servo motor (absolute)
Drive system
Harmonic drive
Reduction ratio (deg.)
1/50
Range of rotation (deg.)
360
Maximum speed (deg. /s)
360
Maximum Payload (kg)
5
Acceleration/deceleration time: 0.3 sec. or over
Rated output torque (N-m)
2.5
Allowable load inertia (kg-m2)
0.0485
Allowable thrust load on axis (N)
49
Allowable radial load on axis (N)
98
Allowable load moment on axis (N-m)
0.65
Positioning repeatability (deg.)
±0.025
Resolution (deg.)
0.01
Mass of axis (kg)
L-shaped bracket
2.0
Flange type
1.8
Master controller
Select from CA20-M10, CA10-M00B and CA10-M01B.
Load W (N) 1
Radial load
Allowable load moment on axis = WXL (Nm)
Notes: * The maximum Payload signifies a load measured when only thrust load is exerted on the vertically installed axis. * The acceleration/deceleration time represents the time until the axis reaches a programmed speed.
R
I
i
[Axis designation]
BB00D - RH - A
Drive system
Mounting
RH: Harmonic
A: L-shaped bracket
F: Flange type
[Dimensions]
[BB00D-RH-A]
[BB00D-RH-F]
.6) (2.
2-7 ™.
to CO
462 I g
39.7 \ 4-03.5 hole
.6 (2.
3971 (79.4)
254.6 230
2546
22
(2.6)
(2.6)
230
cvj
LO
□i
CVJ CO
"3:
o to
42
■9
5. 8.
)(2
|_ 95 25 58 .,..,(12)
LO
Grommetl.D. with membrane: :
Grommetl.D. with membrane: 25
CO
to
(5
46
