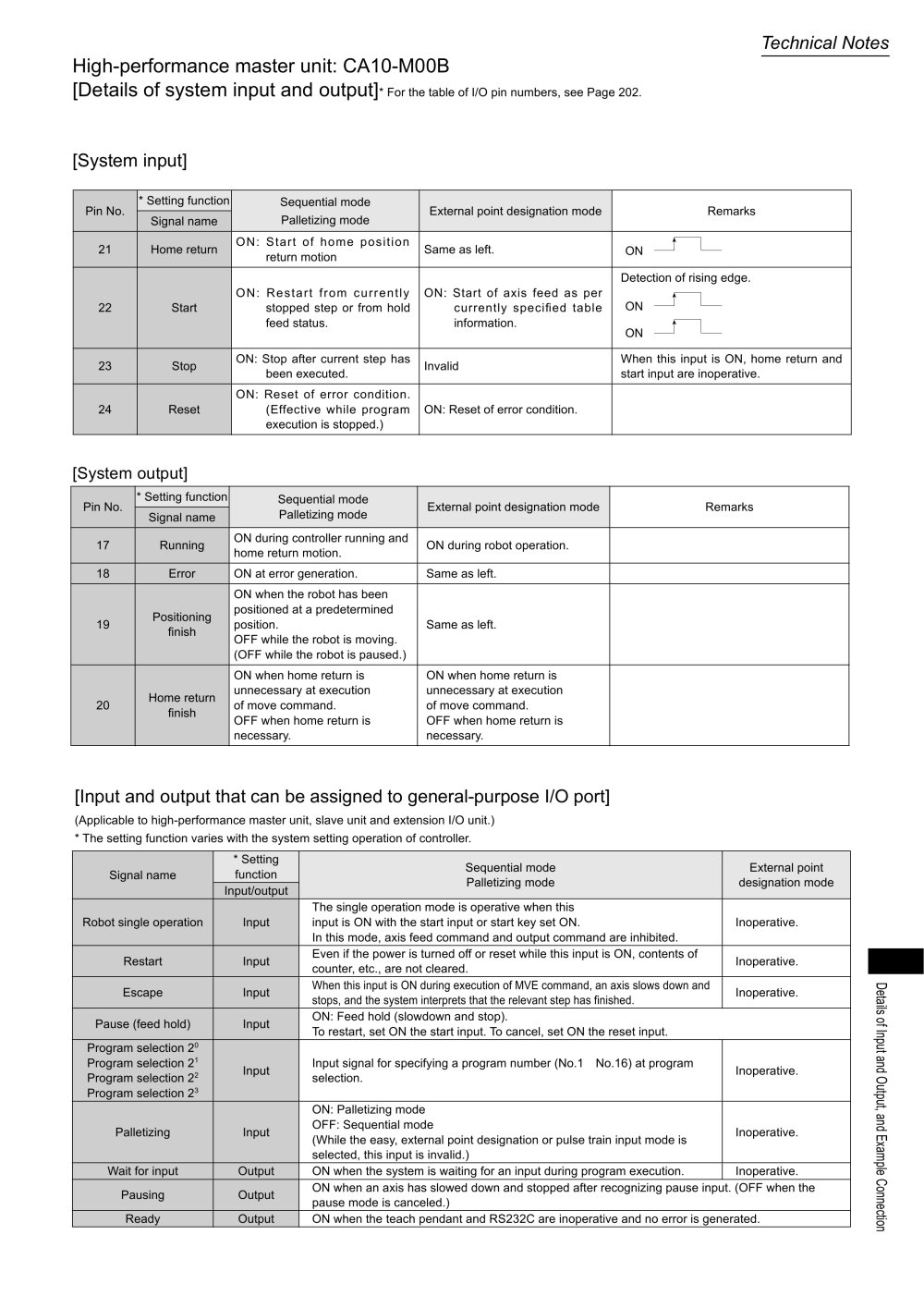

Technical Notes
High-performance master unit: CA10-M00B
[Details of system input and output]* For the table of I/O pin numbers, see Page 202.
[System input]
Pin No.
* Setting function
Sequential mode Palletizing mode
External point designation mode
Remarks
Signal name
21
Home return
ON: Start of home position return motion
Same as left.
ON —^ '—
22
Start
ON: Restart from currently stopped step or from hold feed status.
ON: Start of axis feed as per currently specified table information.
Detection of rising edge.
ON -^ '-
ON -^ '-
23
Stop
ON: Stop after current step has been executed.
Invalid
When this input is ON, home return and start input are inoperative.
24
Reset
ON: Reset of error condition. (Effective while program execution is stopped.)
ON: Reset of error condition.
[System output]
Pin No.
* Setting function Signal name
Sequential mode Palletizing mode
External point designation mode
Remarks
17
Running
ON during controller running and home return motion.
ON during robot operation.
18
Error
ON at error generation.
Same as left.
19
Positioning finish
ON when the robot has been positioned at a predetermined position.
OFF while the robot is moving. (OFF while the robot is paused.)
Same as left.
20
Home return fnish
ON when home return is unnecessary at execution of move command. OFF when home return is necessary.
ON when home return is unnecessary at execution of move command. OFF when home return is necessary.
[Input and output that can be assigned to general-purpose I/O port]
(Applicable to high-performance master unit, slave unit and extension I/O unit.) * The setting function varies with the system setting operation of controller.
Signal name
* Setting function
Sequential mode Palletizing mode
External point designation mode
Input/output
Robot single operation
Input
The single operation mode is operative when this
input is ON with the start input or start key set ON.
In this mode, axis feed command and output command are inhibited.
Inoperative.
Restart
Input
Even if the power is turned off or reset while this input is ON, contents of counter, etc., are not cleared.
Inoperative.
Escape
Input
When this input is ON during execution of MVE command, an axis slows down and stops, and the system interprets that the relevant step has finished.
Inoperative.
Pause (feed hold)
Input
ON: Feed hold (slowdown and stop).
To restart, set ON the start input. To cancel, set ON the reset input.
Program selection 20 Program selection 21 Program selection 22 Program selection 23
Input
Input signal for specifying a program number (No.1 - No.16) at program selection.
Inoperative.
Palletizing
Input
ON: Palletizing mode OFF: Sequential mode
(While the easy, external point designation or pulse train input mode is selected, this input is invalid.)
Inoperative.
Wait for input
Output
ON when the system is waiting for an input during program execution.
Inoperative.
Pausing
Output
ON when an axis has slowed down and stopped after recognizing pause input. (OFF when the pause mode is canceled.)
Ready
Output
ON when the teach pendant and RS232C are inoperative and no error is generated.
CD CD
c/T o
"o
O m
CD
3 ~o
O
o
CD O
235
