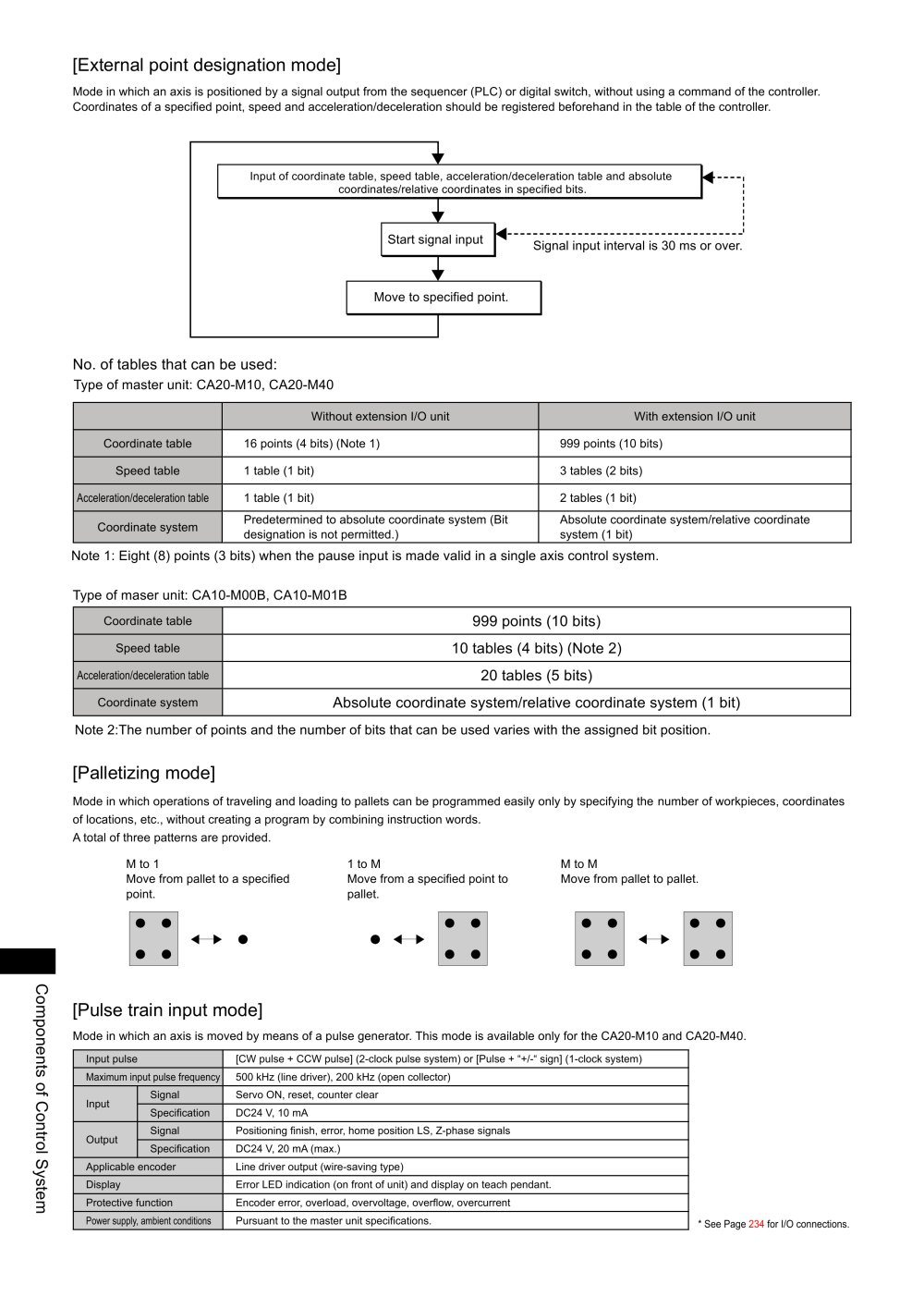

| | | [External point designation mode] | | |
| | | |
| | | Mode in which an axis is positioned by a signal output from the sequencer (PLC) or digital switch, without using a command of the controller. Coordinates of a specified point, speed and acceleration/deceleration should be registered beforehand in the table of the controller. | | |
| | | |
| | | Input of coordinate table, speed table, acceleration/deceleration table and absolute coordinates/relative coordinates in specified bits. | | |
| | | |
| | | Start signal input | | |
| | | Signal input interval is 30 ms or over. | | |
| | | |
| | | |
| | | Move to specified point. | | |
| | | |
| | | No. of tables that can be used: Type of master unit: CA20-M10, CA20-M40 | | |
| | | |
| | | | | | | | | | | | Without extension I/O unit | With extension I/O unit | | | | Coordinate table | 16 points (4 bits) (Note 1) | 999 points (10 bits) | | | | Speed table | 1 table (1 bit) | 3 tables (2 bits) | | | | Acceleration/deceleration table | 1 table (1 bit) | 2 tables (1 bit) | | | | Coordinate system | Predetermined to absolute coordinate system (Bit designation is not permitted.) | Absolute coordinate system/relative coordinate system (1 bit) | | | | Note 1 : Eight (8) points (3 bits) when the pause input is made valid in a single axis control system. Type of maser unit: CA10-M00B, CA10-M01B | | | | Coordinate table | 999 points (10 bits) | | | | Speed table | 10 tables (4 bits) (Note 2) | | | | Acceleration/deceleration table | 20 tables (5 bits) | | | | Coordinate system | Absolute coordinate system/relative coordinate system (1 bit) | | | | | | | | | | |
| | | |
| | | Note 2:The number of points and the number of bits that can be used varies with the assigned bit position. [Palletizing mode] Mode in which operations of traveling and loading to pallets can be programmed easily only by specifying the number of workpieces, coordinates of locations, etc., without creating a program by combining instruction words. A total of three patterns are provided. | | |
| | | |
| | | M to 1 Move from pallet to a specified point. | | 1 to M Move from a specifed point to pallet. | | M to M Move from pallet to pallet. | | |
| | | |
| | | |
| | | [Pulse train input mode] Mode in which an axis is moved by means of a pulse generator. This mode is available only for the CA20-M10 and CA20-M40. | | |
| | | |
| | | | | | | | | | | Input pulse | [CW pulse + CCW pulse] (2-clock pulse system) or [Pulse + "+/-" sign] (1-clock system) | | | | Maximum input pulse frequency | 500 kHz (line driver), 200 kHz (open collector) | | | | Input | Signal | Servo ON, reset, counter clear | | | | Specification | DC24 V, 10 mA | | | | Output | Signal | Positioning finish, error, home position LS, Z-phase signals | | | | Specification | DC24 V, 20 mA (max.) | | | | Applicable encoder | Line driver output (wire-saving type) | | | | Display | Error LED indication (on front of unit) and display on teach pendant. | | | | Protective function | Encoder error, overload, overvoltage, overflow, overcurrent | | | | Power supply, ambient conditions | Pursuant to the master unit specifications. | | | | | | | | | | |
| | | o —h | | |
| | | |
| | | o o r-t-—5 o S (/) r-t- CD 3 | | |
| | | |
| | | * See Page 234 for I/O connections. | | |
| | | |
| | | |
| | | 230 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
