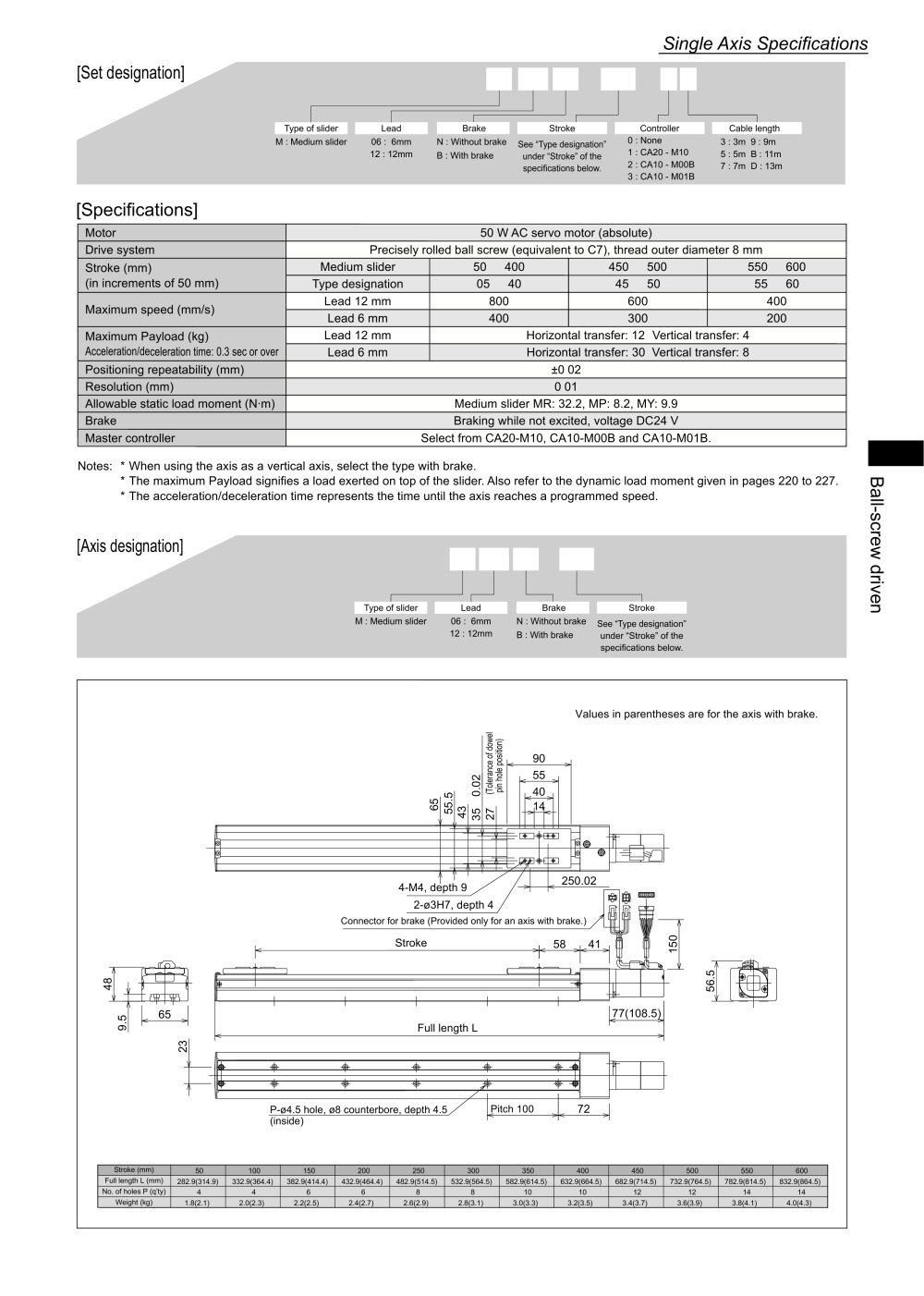

| | | Single Axis Specifications | | |
| | | |
| | | | | | | | | | | | | [Set designation] | BA2 - | 07D - | ST - M 12 N - 40 - 1 3 1 1^ J L | | | | | Type of slider | Lead | Brake Stroke Controller | Cable length | | | | | M : Medium slider | 06 : 6mm | N : Without brake See "Type designation" 0 : None | 3 : 3m 9 : 9m | | | | | | 12 : 12mm | B : With brake under "Stroke" of the 1 : CA20 - M10 | 5 : 5m B : 11m | | | | | | | specifications below. 2 : CA10 - M00B | 7 : 7m D: 13m | | | | | | | 3 : CA10 - M01B | | | | | | | | | | | | | |
| | | |
| | | [Specifications] | | |
| | | |
| | | | | | | | | | | | | Motor | 50 W AC servo motor (absolute) | | | | Drive system | Precisely rolled ball screw (equivalent to C7), thread outer diameter 8 mm | | | | Stroke (mm) (in increments of 50 mm) | Medium slider | 50 ~ 400 | 450 ~ 500 | 550 ~ 600 | | | | Type designation | 05 ~ 40 | 45 ~ 50 | 55 ~ 60 | | | | Maximum speed (mm/s) | Lead 12 mm | 800 | 600 | 400 | | | | Lead 6 mm | 400 | 300 | 200 | | | | Maximum Payload (kg) Acceleration/deceleration time: 0.3 sec or over | Lead 12 mm | Horizontal transfer: 12 Vertical transfer: 4 | | | | Lead 6 mm | Horizontal transfer: 30 Vertical transfer: 8 | | | | Positioning repeatability (mm) | ±0.02 | | | | Resolution (mm) | 0.01 | | | | Allowable static load moment (Nm) | Medium slider MR: 32.2, MP: 8.2, MY: 9.9 | | | | Brake | Braking while not excited, voltage DC24 V | | | | Master controller | Select from CA20-M10, CA10-M00B and CA10-M01B. | | | | | | | | | | | | |
| | | |
| | | Notes: * When using the axis as a vertical axis, select the type with brake. * The maximum Payload signifies a load exerted on top of the slider. Also refer to the dynamic load moment given in pages 220 to 227. * The acceleration/deceleration time represents the time until the axis reaches a programmed speed. | | |
| | | |
| | | — o CD v CD 13 | | |
| | | [Axis designation] | | |
| | | BB07D - ST - M 12 N - 40 | | |
| | | |
| | | |
| | | Type of slider M : Medium slider | | Lead | | Brake | | Stroke | | |
| | | |
| | | |
| | | 06 : 6mm 12 : 12mm | | N : Without brake B : With brake | | |
| | | See "Type designation" under "Stroke" of the specifications below. | | |
| | | |
| | | |
| | | |
| | | |
| | | Values in parentheses are for the axis with brake. | | |
| | | |
| | | LO CD | | |
| | | |
| | | Stroke ,58 41. | | |
| | | |
| | | CO | | |
| | | |
| | | lisp | | |
| | | |
| | | 65 | | |
| | | LO CTI | | |
| | | |
| | | Full length L | | |
| | | |
| | | |
| | | co CM | | |
| | | |
| | | Pitch 100 XN,_ 72 ,| | | |
| | | P-04.5 hole, 08 counterbore, depth 4.5/ (Inside) | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | | | | FulllengthL(mm) | 282.9(314.9) | 332.9(364.4) | 382.9(414.4) | 432.9(464.4) | 482.9(514.5) | 532.9(564.5) | 582.9(614.5) | 632.9(664.5) | 682.9(714.5) | 732.9(764.5) | 782.9(814.5) | 832.9(864.5) | | | | No. ofholes P (q'ty) | 4 | 4 | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 14 | 14 | | | | Weight (kg) | 1.8(2.1) | 2.0(2.3) | 2.2(2.5) | 2.4(2.7) | 2.6(2.9) | 2.8(3.1) | 3.0(3.3) | 3.2(3.5) | 3.4(3.7) | 3.6(3.9) | 3.8(4.1) | 4.0(4.3) | | | | | | | | | | | | | | | | | | | | |
| | | |
