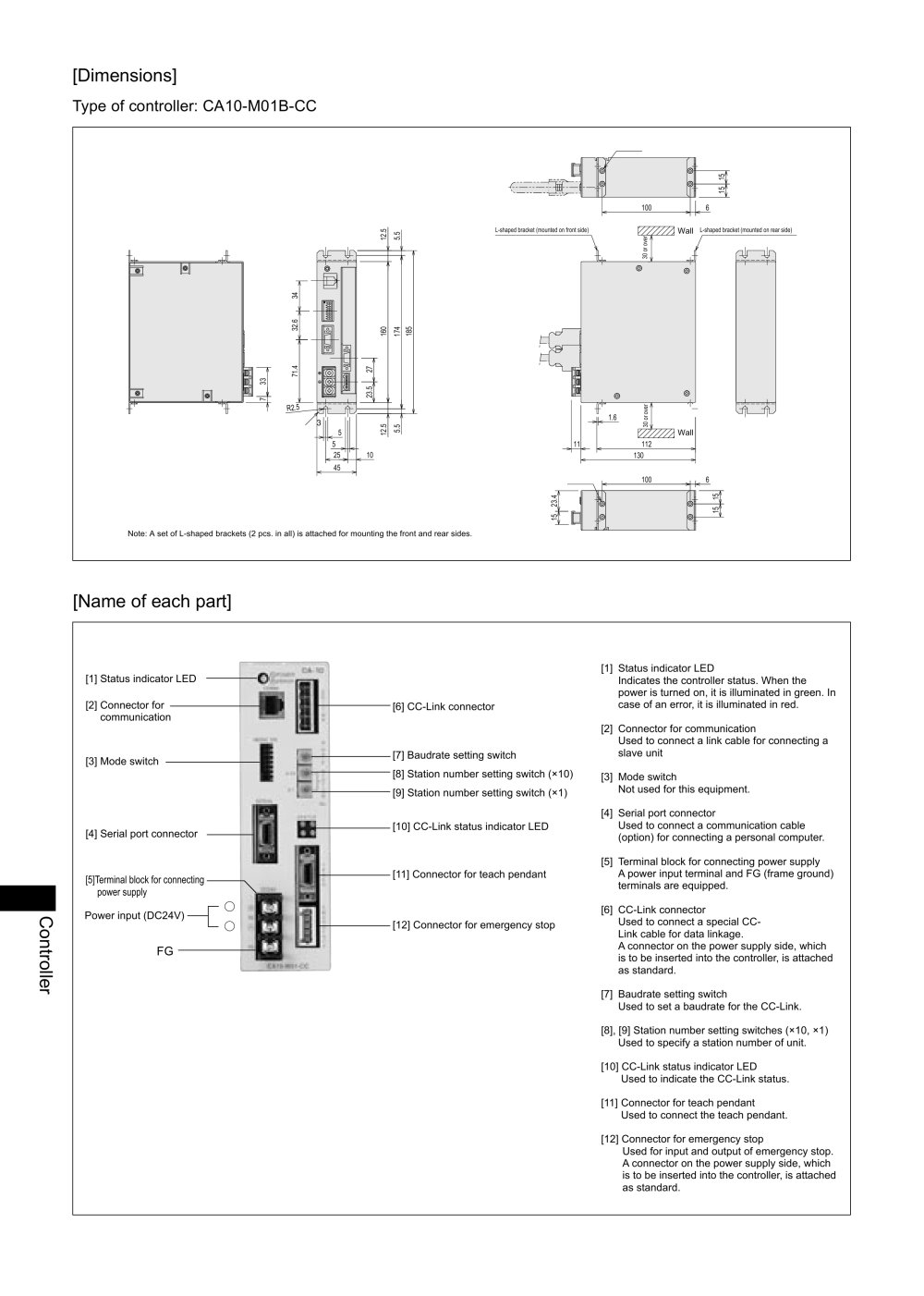

| [I] Status indicator LED Indicates the controller status. When the power is turned on, it is illuminated in green. In case of an error, it is illuminated in red. [2] Connector for communication Used to connect a link cable for connecting a slave unit [3] Mode switch Not used for this equipment. [4] Serial port connector Used to connect a communication cable (option) for connecting a personal computer. [5] Terminal block for connecting power supply A power input terminal and FG (frame ground) terminals are equipped. [6] CC-Link connector Used to connect a special CC- Link cable for data linkage. A connector on the power supply side, which is to be inserted into the controller, is attached as standard. [7] Baudrate setting switch Used to set a baudrate for the CC-Link. [8], [9] Station number setting switches (*10, *1) Used to specify a station number of unit. [10] CC-Link status indicator LED Used to indicate the CC-Link status. [II] Connector for teach pendant Used to connect the teach pendant. [12] Connector for emergency stop Used for input and output of emergency stop. A connector on the power supply side, which is to be inserted into the controller, is attached as standard. |
