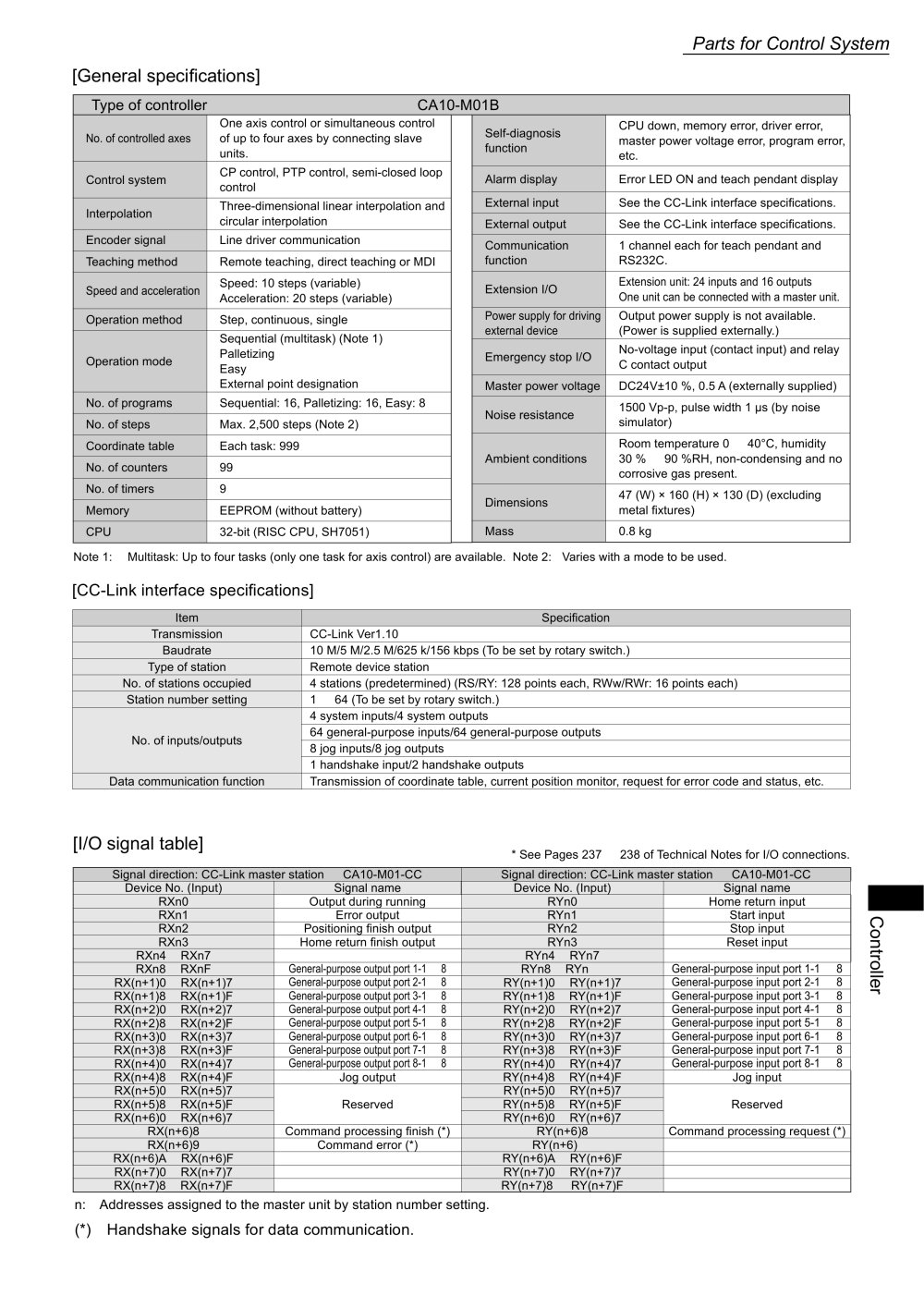

Parts for Control System
[General specifications]
Type of controller CA10-M01B
No. of controlled axes
One axis control or simultaneous control of up to four axes by connecting slave units.
Self-diagnosis function
CPU down, memory error, driver error, master power voltage error, program error, etc.
Control system
CP control, PTP control, semi-closed loop control
Alarm display
Error LED ON and teach pendant display
Interpolation
Three-dimensional linear interpolation and circular interpolation
External input
See the CC-Link interface specifications.
External output
See the CC-Link interface specifications.
Encoder signal
Line driver communication
Communication function
1 channel each for teach pendant and RS232C.
Teaching method
Remote teaching, direct teaching or MDI
Speed and acceleration
Speed: 10 steps (variable) Acceleration: 20 steps (variable)
Extension I/O
Extension unit: 24 inputs and 16 outputs One unit can be connected with a master unit.
Operation method
Step, continuous, single
Power supply for driving external device
Output power supply is not available. (Power is supplied externally.)
Operation mode
Sequential (multitask) (Note 1)
Palletizing
Easy
External point designation
Emergency stop I/O
No-voltage input (contact input) and relay C contact output
Master power voltage
DC24V±10 %, 0.5 A (externally supplied)
No. of programs
Sequential: 16, Palletizing: 16, Easy: 8
Noise resistance
1500 Vp-p, pulse width 1 us (by noise simulator)
No. of steps
Max. 2,500 steps (Note 2)
Coordinate table
Each task: 999
Ambient conditions
Room temperature 0 — 40°C, humidity 30 % — 90 %RH, non-condensing and no corrosive gas present.
No. of counters
99
No. of timers
9
Dimensions
47 (W) x 160 (H) x 130 (D) (excluding metal fixtures)
Memory
EEPROM (without battery)
CPU
32-bit (RISC CPU, SH7051)
Mass
0.8 kg
Note 1: Multitask: Up to four tasks (only one task for axis control) are available. Note 2: Varies with a mode to be used.
[CC-Link interface specifications]
Item
Specification
Transmission
CC-Link Ver1.10
Baudrate
10 M/5 M/2.5 M/625 k/156 kbps (To be set by rotary switch.)
Type of station
Remote device station
No. of stations occupied
4 stations (predetermined) (RS/RY: 128 points each, RWw/RWr: 16 points each)
Station number setting
1 — 64 (To be set by rotary switch.)
No. of inputs/outputs
4 system inputs/4 system outputs
64 general-purpose inputs/64 general-purpose outputs
8 jog inputs/8 jog outputs
1 handshake input/2 handshake outputs
Data communication function
Transmission of coordinate table, current position monitor, request for error code and status, etc.
[I/O signal table]
L ° J * See Pages 237 - 238 of Technical Notes for I/O connections.
Signal direction: CC-Link master station <- CA10-M01-CC
Signal direction: CC-Link master station — CA10-M01-CC
Device No. (Input)
Signal name
Device No. (Input)
Signal name
RXn0
Output during running
RYn0
Home return input
RXnl
Error output
RYn1
Start input
RXn2
Positioning finish output
RYn2
Stop input
RXn3
Home return fnish output
RYn3
Reset input
RXn4 - RXn7
RYn4 - RYn7
RXn8 - RXnF
General-purpose output port 1-1 — 8
RYn8 - RYn F
General-purpose input port 1-1 — 8
RX(n+1)0 - RX(n+1)7
General-purpose output port 2-1 — 8
RY(n+1)0 - RY(n+1)7
General-purpose input port 2-1 — 8
RX(n+1)8 - RX(n+1)F
General-purpose output port 3-1 — 8
RY(n+1)8 - RY(n+1)F
General-purpose input port 3-1 — 8
RX(n+2)0 - RX(n+2)7
General-purpose output port 4-1 — 8
RY(n+2)0 - RY(n+2)7
General-purpose input port 4-1 — 8
RX(n+2)8 - RX(n+2)F
General-purpose output port 5-1 — 8
RY(n+2)8 - RY(n+2)F
General-purpose input port 5-1 — 8
RX(n+3)0 - RX(n+3)7
General-purpose output port 6-1 — 8
RY(n+3)0 - RY(n+3)7
General-purpose input port 6-1 — 8
RX(n+3)8 - RX(n+3)F
General-purpose output port 7-1 — 8
RY(n+3)8 - RY(n+3)F
General-purpose input port 7-1 — 8
RX(n+4)0 - RX(n+4)7
General-purpose output port 8-1 — 8
RY(n+4)0 - RY(n+4)7
General-purpose input port 8-1 — 8
RX(n+4)8 - RX(n+4)F
Jog output
RY(n+4)8 - RY(n+4)F
Jog input
RX(n+5)0 - RX(n+5)7
Reserved
RY(n+5)0 - RY(n+5)7
Reserved
RX(n+5)8 - RX(n+5)F
RY(n+5)8 - RY(n+5)F
RX(n+6)0 - RX(n+6)7
RY(n+6)0 - RY(n+6)7
RX(n+6)8
Command processing finish (*)
RY(n+6)8
Command processing request (*)
RX(n+6)9
Command error (*)
RY(n+6) 9
RX(n+6)A - RX(n+6)F
RY(n+6)A - RY(n+6)F
RX(n+7)0 - RX(n+7)7
RY(n+7)0 - RY(n+7)7
RX(n+7)8 - RX(n+7)F
RY(n+7)8 ~ RY(n+7)F
n: Addresses assigned to the master unit by station number setting.
(*) Handshake signals for data communication.
