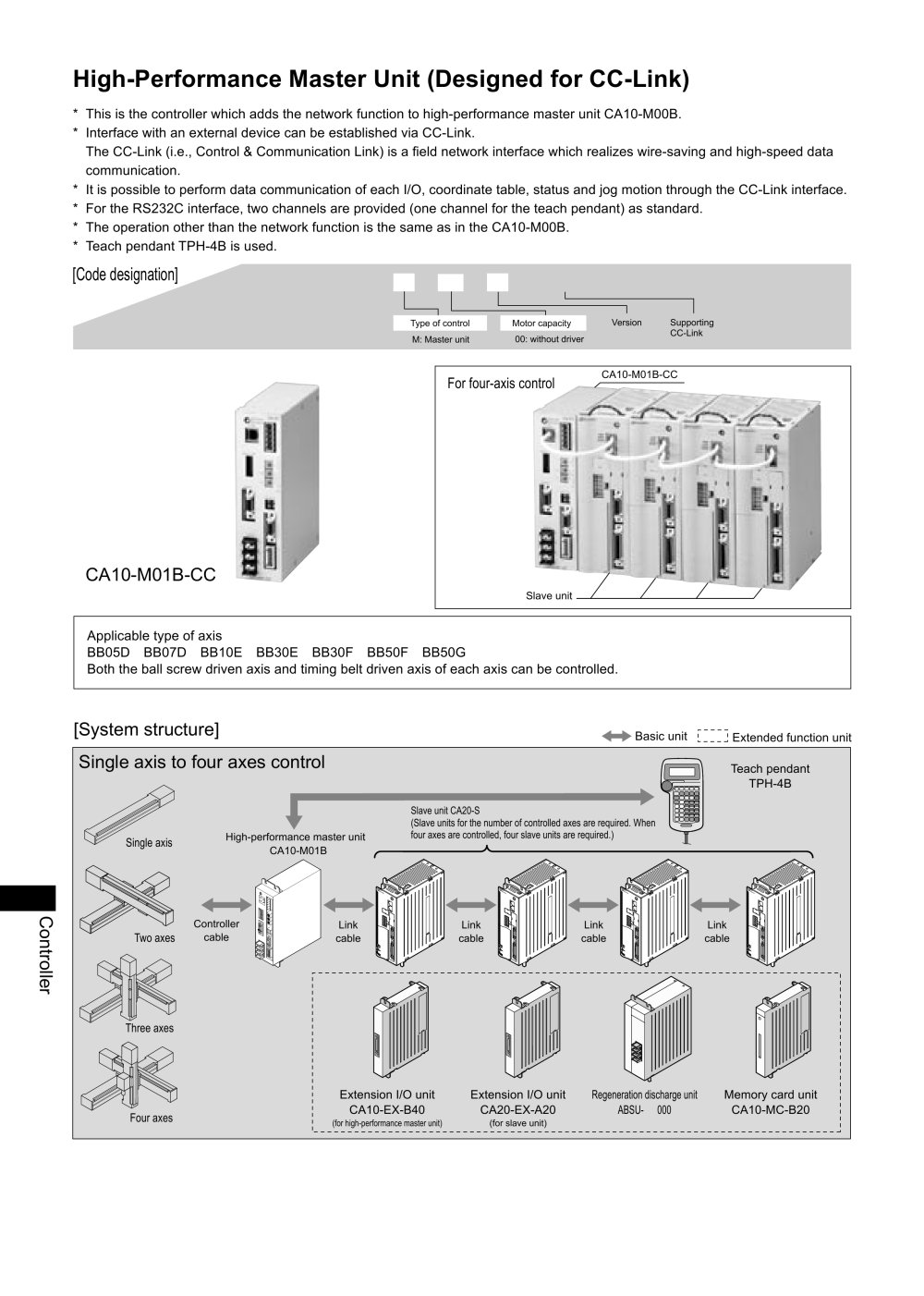

| High-Performance Master Unit (Designed for CC-Link) * This is the controller which adds the network function to high-performance master unit CAI 0-M00B. * Interface with an external device can be established via CC-Link. The CC-Link (i.e., Control & Communication Link) is a field network interface which realizes wire-saving and high-speed data communication. * It is possible to perform data communication of each I/O, coordinate table, status and jog motion through the CC-Link interface. * For the RS232C interface, two channels are provided (one channel for the teach pendant) as standard. * The operation other than the network function is the same as in the CAI 0-M00B. * Teach pendant TPH-4B is used. | |||||||||||||||||||||
| [Code designation] | |||||||||||||||||||||
| CA 10 - M 01 B - CC | |||||||||||||||||||||
| Type of control Motor capacity Version Supporting CC-Link M: Master unit 00: without driver | |||||||||||||||||||||
| CA10-M01B-CC | |||||||||||||||||||||
| Applicable type of axis BB05D, BB07D, BB10E, BB30E, BB30F, BB50F, BB50G Both the ball screw driven axis and timing belt driven axis of each axis can be controlled. | |||||||||||||||||||||
| [System structure] | |||||||||||||||||||||
| Basic unit ;____j Extended function unit | |||||||||||||||||||||
| C o t r o e | |||||||||||||||||||||
| 204 | |||||||||||||||||||||
