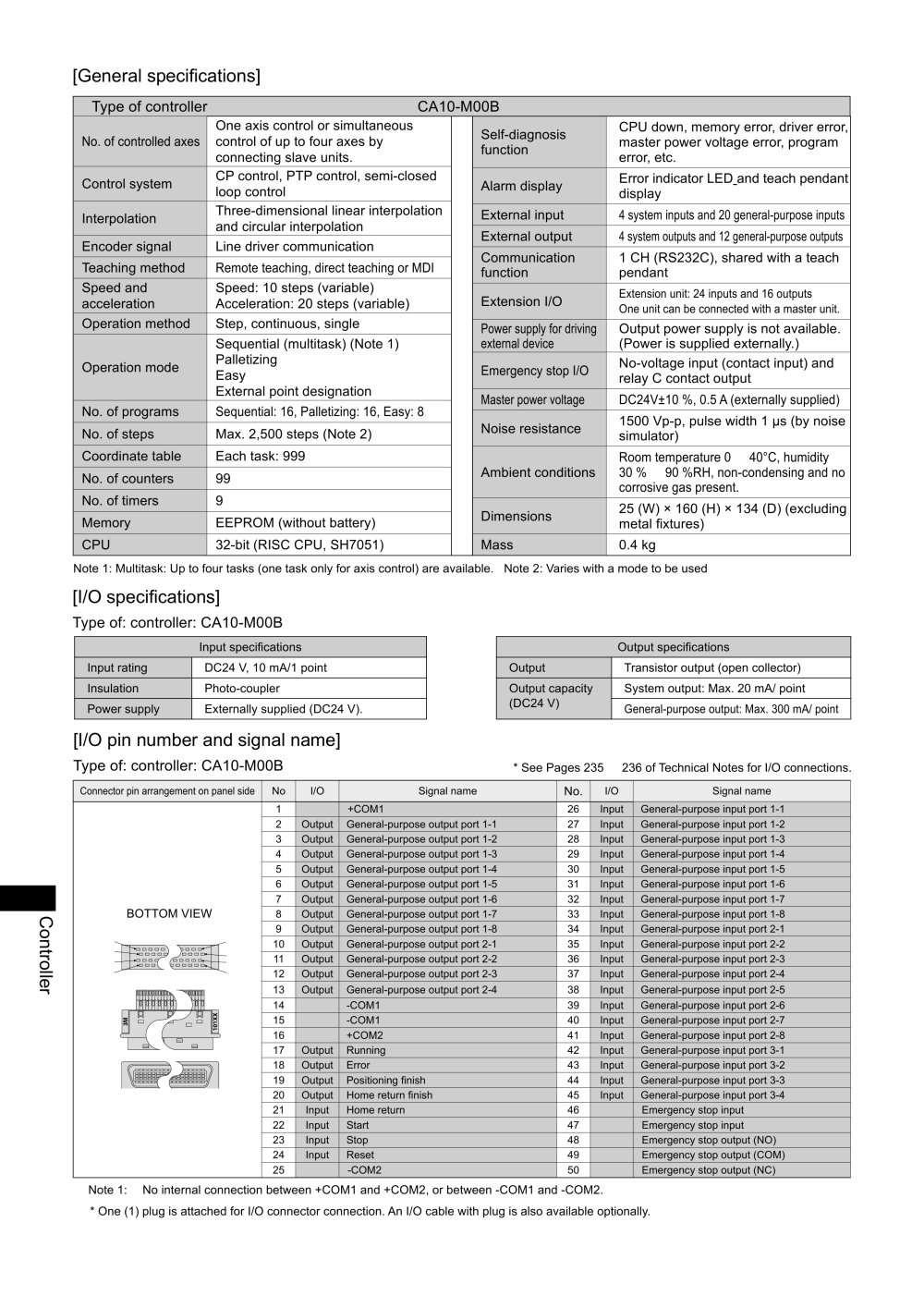

[General specifications]
Type of controller
CA10-M00B
No. of controlled axes
One axis control or simultaneous control of up to four axes by connecting slave units.
Control system
CP control, PTP control, semi-closed loop control
Interpolation
Three-dimensional linear interpolation and circular interpolation
Encoder signal
Line driver communication
Teaching method
Remote teaching, direct teaching or MDI
Speed and acceleration
Speed: 10 steps (variable) Acceleration: 20 steps (variable)
Operation method
Step, continuous, single
Operation mode
Sequential (multitask) (Note 1)
Palletizing
Easy
External point designation
No. of programs
Sequential: 16, Palletizing: 16, Easy: 8
No. of steps
Max. 2,500 steps (Note 2)
Coordinate table
Each task: 999
No. of counters
99
No. of timers
9
Memory
EEPROM (without battery)
CPU
32-bit (RISC CPU, SH7051)
Self-diagnosis function
CPU down, memory error, driver error, master power voltage error, program error, etc.
Alarm display
Error indicator LED.and teach pendant display
External input
4 system inputs and 20 general-purpose inputs
External output
4 system outputs and 12 general-purpose outputs
Communication function
1 CH (RS232C), shared with a teach pendant
Extension I/O
Extension unit: 24 inputs and 16 outputs One unit can be connected with a master unit.
Power supply for driving external device
Output power supply is not available. (Power is supplied externally.)
Emergency stop I/O
No-voltage input (contact input) and relay C contact output
Master power voltage
DC24V±10 %, 0.5 A (externally supplied)
Noise resistance
1500 Vp-p, pulse width 1 us (by noise simulator)
Ambient conditions
Room temperature 0 — 40°C, humidity 30 % — 90 %RH, non-condensing and no corrosive gas present.
Dimensions
25 (W) x 160 (H) x 134 (D) (excluding metal fixtures)
Mass
0.4 kg
Note 1: Multitask: Up to four tasks (one task only for axis control) are available. Note 2: Varies with a mode to be used
[I/O specifications]
Type of: controller: CA10-M00B
Input specifications
Output specifications
Input rating
DC24 V, 10 mA/1 point
Output
Transistor output (open collector)
Insulation
Photo-coupler
Output capacity
System output: Max. 20 mA/ point
Power supply
Externally supplied (DC24 V).
(DC24 V)
General-purpose output: Max. 300 mA/ point
[I/O pin number and signal name] Type of: controller: CA10-M00B
I I I
* See Pages 235 -
- 236 of Technical Notes for I/O connections.
No.
Connector pin arrangement on panel side
No
I/O
Signal name
I/O
Signal name
+COM1
26 27
Input Input
General-purpose input port 1-1
Output
General-purpose output port 1-1
General-purpose input port 1-2
Output Output Output
General-purpose output port 1-2
28
29 30
Input Input Input
General-purpose input port 1-3
General-purpose output port 1-3
General-purpose input port 1-4
General-purpose output port 1-4
General-purpose input port 1-5
Output Output Output
General-purpose output port 1-5
31 32 33
Input Input Input
General-purpose input port 1-6
General-purpose output port 1-6
General-purpose input port 1-7
(BOTTOM VIEW)
General-purpose output port 1-7
General-purpose input port 1-8
C
O
t
r
l
e
9 10
11
Output Output Output
General-purpose output port 1-8
34 35 36
Input Input Input
General-purpose input port 2-1
50
26­27­1 -
2
General-purpose output port 2-1
General-purpose input port 2-2
-49 -25 -24
General-purpose output port 2-2
General-purpose input port 2-3
12 13 14
Output Output
General-purpose output port 2-3
37 38 39
Input Input Input
General-purpose input port 2-4
General-purpose output port 2-4
General-purpose input port 2-5
-COM1
General-purpose input port 2-6
15 16 17
-COM1
40 41 42
Input Input Input
General-purpose input port 2-7
+COM2
General-purpose input port 2-8
Output
Running
General-purpose input port 3-1
18 19 20
Output Output Output
Error
43 44 45
Input Input Input
General-purpose input port 3-2
Positioning finish
General-purpose input port 3-3
Home return finish
General-purpose input port 3-4
21 22 23
Input Input Input
Home return
46 47 48
Emergency stop input
Start
Emergency stop input
Stop
Emergency stop output (NO)
24 25
Input
Reset
49 50
Emergency stop output (COM)
-COM2
Emergency stop output (NC)
Note 1: No internal connection between +COM1 and +COM2, or between -COM1 and -COM2.
* One (1) plug is attached for I/O connector connection. An I/O cable with plug is also available optionally.
