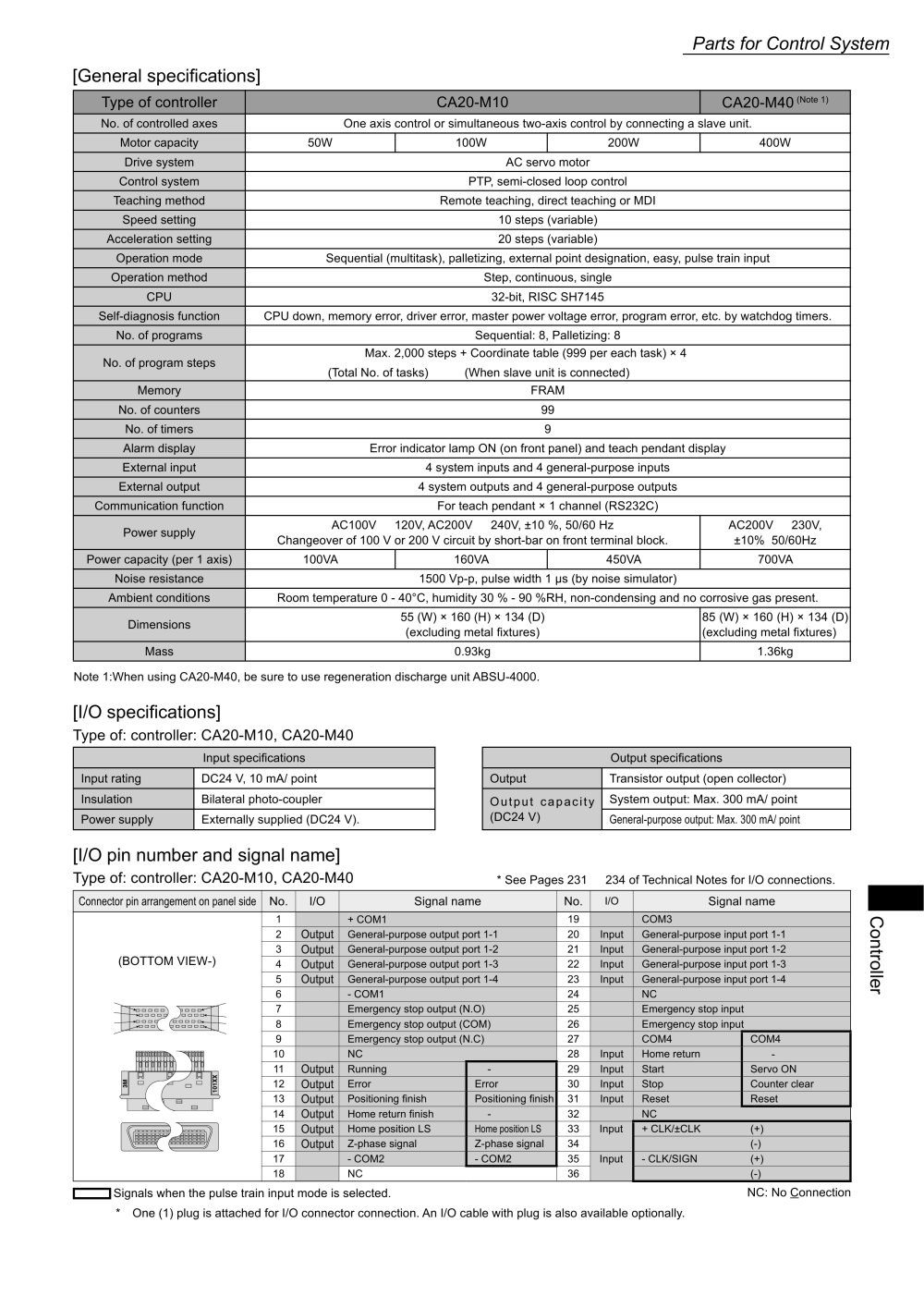

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Parts for Control System | | | | | | | | | | [General specifications] | | | | | | | | | | | | | | | | | | | | Type of controller | CA20-M10 | CA20-M40 <Note 1) | | | | No. of controlled axes | One axis control or simultaneous two-axis control by connecting a slave unit. | | | | Motor capacity | 50W | 100W | 200W | 400W | | | | Drive system | AC servo motor | | | | Control system | PTP, semi-closed loop control | | | | Teaching method | Remote teaching, direct teaching or MDI | | | | Speed setting | 10 steps (variable) | | | | Acceleration setting | 20 steps (variable) | | | | Operation mode | Sequential (multitask), palletizing, external point designation, easy, pulse train input | | | | Operation method | Step, continuous, single | | | | CPU | 32-bit, RISC SH7145 | | | | Self-diagnosis function | CPU down, memory error, driver error, master power voltage error, program error, etc. by watchdog timers. | | | | No. of programs | Sequential: 8, Palletizing: 8 | | | | No. of program steps | Max. 2,000 steps + Coordinate table (999 per each task) * 4 (Total No. of tasks) (When slave unit is connected) | | | | Memory | FRAM | | | | No. of counters | 99 | | | | No. of timers | 9 | | | | Alarm display | Error indicator lamp ON (on front panel) and teach pendant display | | | | External input | 4 system inputs and 4 general-purpose inputs | | | | External output | 4 system outputs and 4 general-purpose outputs | | | | Communication function | For teach pendant * 1 channel (RS232C) | | | | Power supply | AC100V - 120V, AC200V - 240V, ±10 %, 50/60 Hz Changeover of 100 V or 200 V circuit by short-bar on front terminal block. | AC200V - 230V, ±10% 50/60Hz | | | | Power capacity (per 1 axis) | 100VA | 160VA | 450VA | 700VA | | | | Noise resistance | 1500 Vp-p, pulse width 1 us (by noise simulator) | | | | Ambient conditions | Room temperature 0 - 40°C, humidity 30 % - 90 %RH, non-condensing and no corrosive gas present. | | | | Dimensions | 55 (W) * 160 (H) * 134 (D) (excluding metal fixtures) | 85 (W) x 160 (H) x 134 (D) (excluding metal fixtures) | | | | Mass | 0.93kg | 1.36kg | | | | | | | | | | | | | | | | | | | | Note 1:When using CA20-M40, be sure to use regeneration discharge unit ABSU-4000. [I/O specifications] Type of: controller: CA20-M10, CA20-M40 | | | | | | | | | | | | | | | | | Input specifications | | | | Input rating | DC24 V, 10 mA/ point | | | | Insulation | Bilateral photo-coupler | | | | Power supply | Externally supplied (DC24 V). | | | | | | | | | | | | | | | | Output specifications | | | | Output | Transistor output (open collector) | | | | Output capacity (DC24 V) | System output: Max. 300 mA/ point | | | | General-purpose output: Max. 300 mA/ point | | | | | | | | | | | | | | | | | | | | | [I/O pin number and signal name] Type of: controller: CA20-M10, CA20-M40 | | | | | | See Pages 231 — 234 of Technical Notes for I/O connections. | | | | | | | | | | | | | | | | | | | | | | | | | | | No. | I/O | Signal name | No. | I/O | Signal name | | | | 1 | | + COM1 | 19 | | COM3 | | | | 2 | Output | General-purpose output port 1-1 | 20 | Input | General-purpose input port 1-1 | | | | 3 | Output | General-purpose output port 1-2 | 21 | Input | General-purpose input port 1-2 | | | | 4 | Output | General-purpose output port 1-3 | 22 | Input | General-purpose input port 1-3 | | | | 5 | Output | General-purpose output port 1-4 | 23 | Input | General-purpose input port 1-4 | | | | 6 | | - COM1 | 24 | | NC | | | | 7 | | Emergency stop output (N.O) | 25 | | Emergency stop input | | | | 8 | | Emergency stop output (COM) | 26 | | Emergency stop input | | | | 9 | | Emergency stop output (N.C) | 27 | | COM4 | COM4 | | | | 10 | | NC | 28 | Input | Home return | - | | | | 11 | Output | Running | - | 29 | Input | Start | Servo ON | | | | 12 | Output | Error | Error | 30 | Input | Stop | Counter clear | | | | 13 | Output | Positioning finish | Positioning finish | 31 | Input | Reset | Reset | | | | 14 | Output | Home return finish | - | 32 | | NC | | | | 15 | Output | Home position LS | Home position LS | 33 | Input | + CLK/±CLK (+) | | | | 16 | Output | Z-phase signal | Z-phase signal | 34 | t (-) | | | | 17 | | - COM2 | - COM2 | 35 | Input | - CLK/SIGN (+) | | | | 18 | | NC | 36 | | t (-) | | | | | | | | | | | | | | | | | | | Connector pin arrangement on panel side | | | | | | | | | | C O t r l e | | | | | | (BOTTOM VIEW-) | | | | | | | | | | | | | | 35 | | | | | | 1920 12- | | | | | | | | | | -36 -17 -18 | | | | | | | | | | | | | | NC: No Connection | | | | | | Signals when the pulse train input mode is selected. * One (1) plug is attached for I/O connector connection. An I/O cable with plug is also available | | | | | | | | | | optionally. | | | | | | | | | | 199 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
