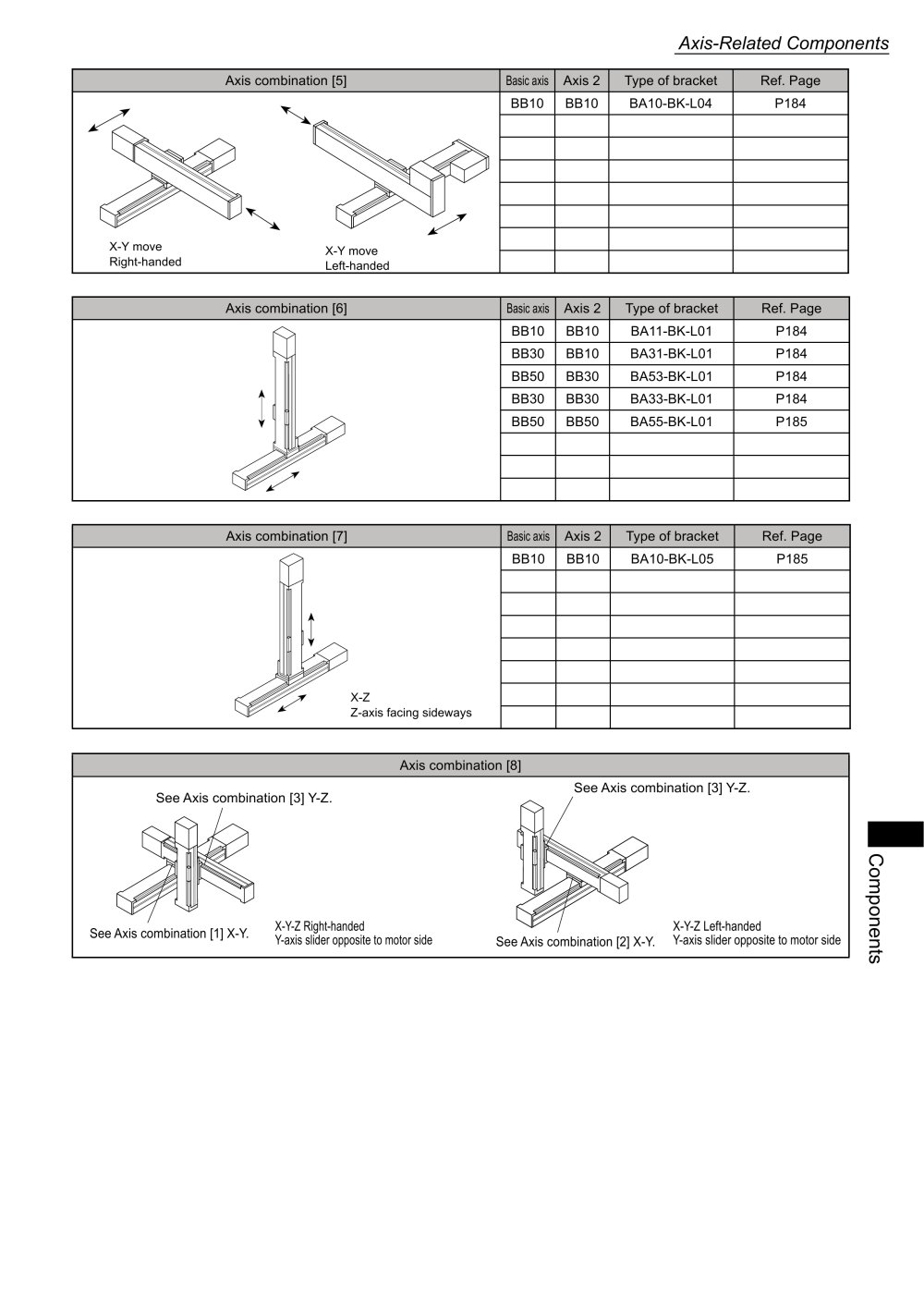

| | | Axis-Related Components | | |
| | | |
| | | | | | | | | | | | | Axis combination [5] | Basic axis | Axis 2 | Type of bracket | Ref. Page | | | | X-Y move X-Y move Right-handed Left-handed | BB10 | BB10 | BA10-BK-L04 | P184 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | Axis combination [6] | Basic axis | Axis 2 | Type of bracket | Ref. Page | | | | | BB10 | BB10 | BA11-BK-L01 | P184 | | | | BB30 | BB10 | BA31-BK-L01 | P184 | | | | BB50 | BB30 | BA53-BK-L01 | P184 | | | | BB30 | BB30 | BA33-BK-L01 | P184 | | | | BB50 | BB50 | BA55-BK-L01 | P185 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | Axis combination [7] | Basic axis | Axis 2 | Type of bracket | Ref. Page | | | | *^ Z-axis facing sideways | BB10 | BB10 | BA10-BK-L05 | P185 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| | | |
