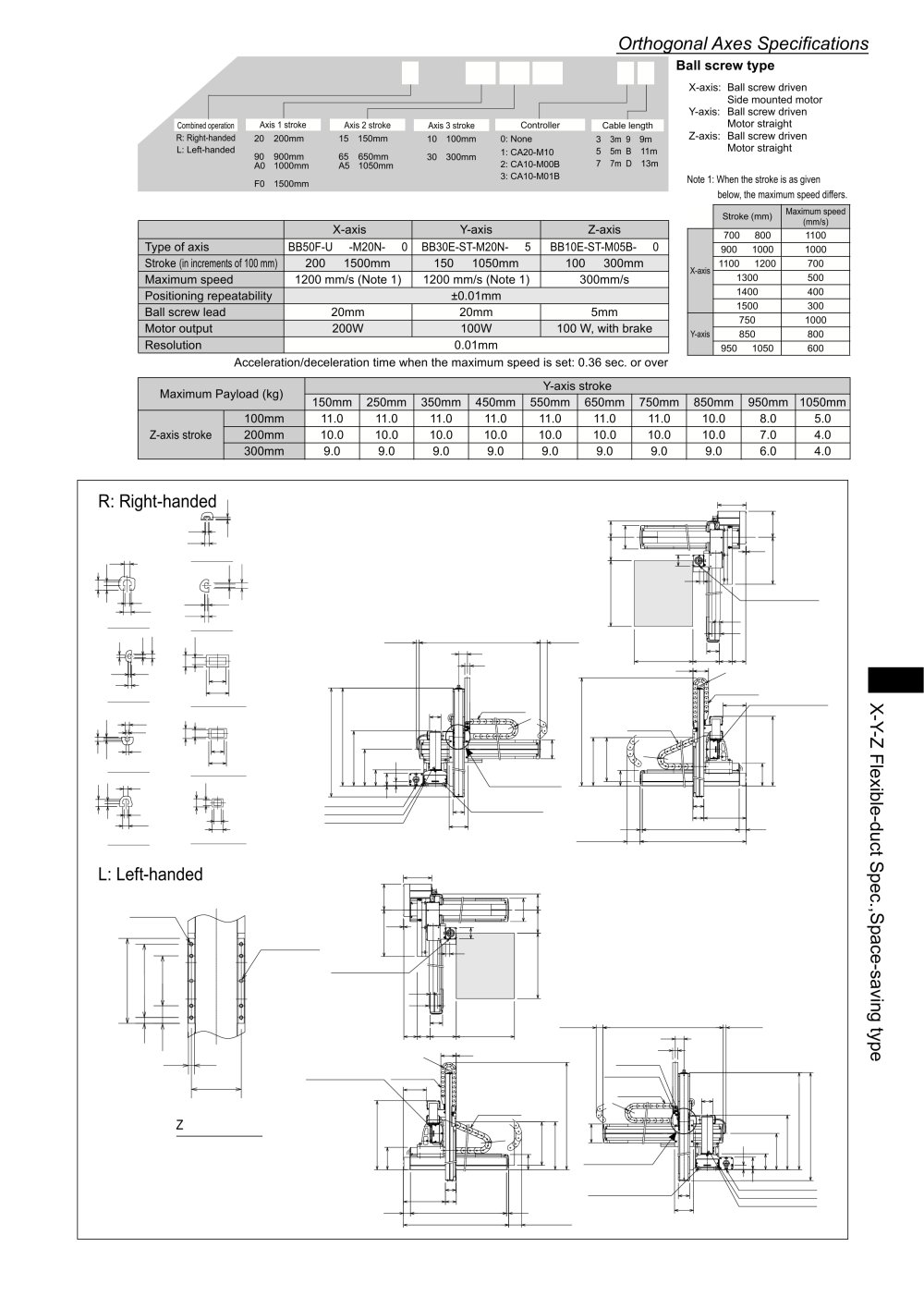

Orthogonal Axes Specifications
[Set designation] ßA2 _ /\5 — A3A R G - 40 45 30 - OF 2 3 Bal1 screw type
X-axis: Ball screw driven
Side mounted motor
Y-axis: Ball screw driven Motor straight
Z-axis: Ball screw driven Motor straight
Note 1: When the stroke is as given
below, the maximum speed differs.
Axis 1 stroke
Axis 2 stroke
Controller 0: None 1: CA20-M10 2: CA10-M00B 3: CA10-M01B
Combined operation R: Right-handed L: Left-handed
Axis 3 stroke
Cable length 3 : 3m 9 : 9m 5 : 5m B : 11m 7 : 7m D: 13m
20 : 200mm
15 : 150mm
10 : 100mm
90 : 900mm AO : 1000mm
F0 : 1500mm
65 : 650mm A5 : 1050mm
30 : 300mm
[Specifications]
Stroke (mm)
Maximum speed (mm/s)
700 ~ 800
1100
900 ~ 1000
1000
X-axis
1100 ~ 1200
700
1300
500
1400
400
1500
300
750
1000
Y-axis
850
800
950 ~ 1050
600
X-axis
Y-axis
Z-axis
Type of axis
BB50F-U □ -M20N- □ 0
BB30E-ST-M20N- □ 5
BB10E-ST-M05B- □ 0
Stroke (in increments of 100 mm)
200 ~ 1500mm
150 ~ 1050mm
100 ~ 300mm
Maximum speed
1200 mm/s (Note 1)
1200 mm/s (Note 1 )
300mm/s
Positioning repeatability
±0.01mm
Ball screw lead
20mm
20mm
5mm
Motor output
200W
100W
100 W, with brake
Resolution
0.01mm
Acceleration/deceleration time when the maximum speed is set: 0.36 sec. or over
Maximum Payload (kg)
Y-axis stroke
150mm
250mm
350mm
450mm
550mm
650mm
750mm
850mm
950mm
1050mm
Z-axis stroke
100mm
11.0
11.0
11.0
11.0
11.0
11.0
11.0
10.0
8.0
5.0
200mm
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
7.0
4.0
300mm
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
6.0
4.0
R: Right-handed sj
195
Detail 'E'of T-slot
T-slot for M4 hexagon nut (T-slot F)
135
Detail'A"d T-slot
Stroke Y +37 8
MIN.20
MAX.60
60
m
|,58,|
36
8
Flexible duct(3) ¥ 1.159.5 I T-slot for M8 hexagon bolt (T-slot D)
Detail B of T-slot
Section of flexible duct (1)
+6
Z
Z
3
Detail'C'of T-slct
+
60
Section of flexible duct (2)
4
.Slider unit
#1
T-slot tot M4 hexagon nut (T-slot E)/, T-slot tot M4 hexagon nut (T-slot B)/, T-slot tot M4 hexagon nut (T-slot C)/
T-slot tor MS hexagon bolt (T-slot A)
15
T-slot range tor M8 hexagon bolt
4S.3
MAX.100
Stroke X +326
Section of flexible duct (3)
Detail D of T-slot
L: Left-handed
8-M5 depth15
2 6
2-05H7, depth 5, hole pitch 68±0.02
T-slot tor M4 hexagon nut (T-slot F)
MAX.60
Stroke Y +37 8
V1IN20
50
36
0
8-M5 depth15 2-fl5H7, depth 5, hole
T-slot for M6 hexagon bolt (T-slot D) Flexible duct (3) _ \ ,159.5^
pitch 68±0.02
Flexible duct (2)
68
+6
+
Z-axis slider unit
Slider unit
\ T-slot for M4 hexagon nut (T-slot E) \ T-slot for M4 hexagon nut (T-slot B) \ T-slot for M4 hexagon nut (T-slot C)
T-slot tor M8 hexagon bolt (T-slot A)
48 3
Stroke X +326
MAX.100
149
