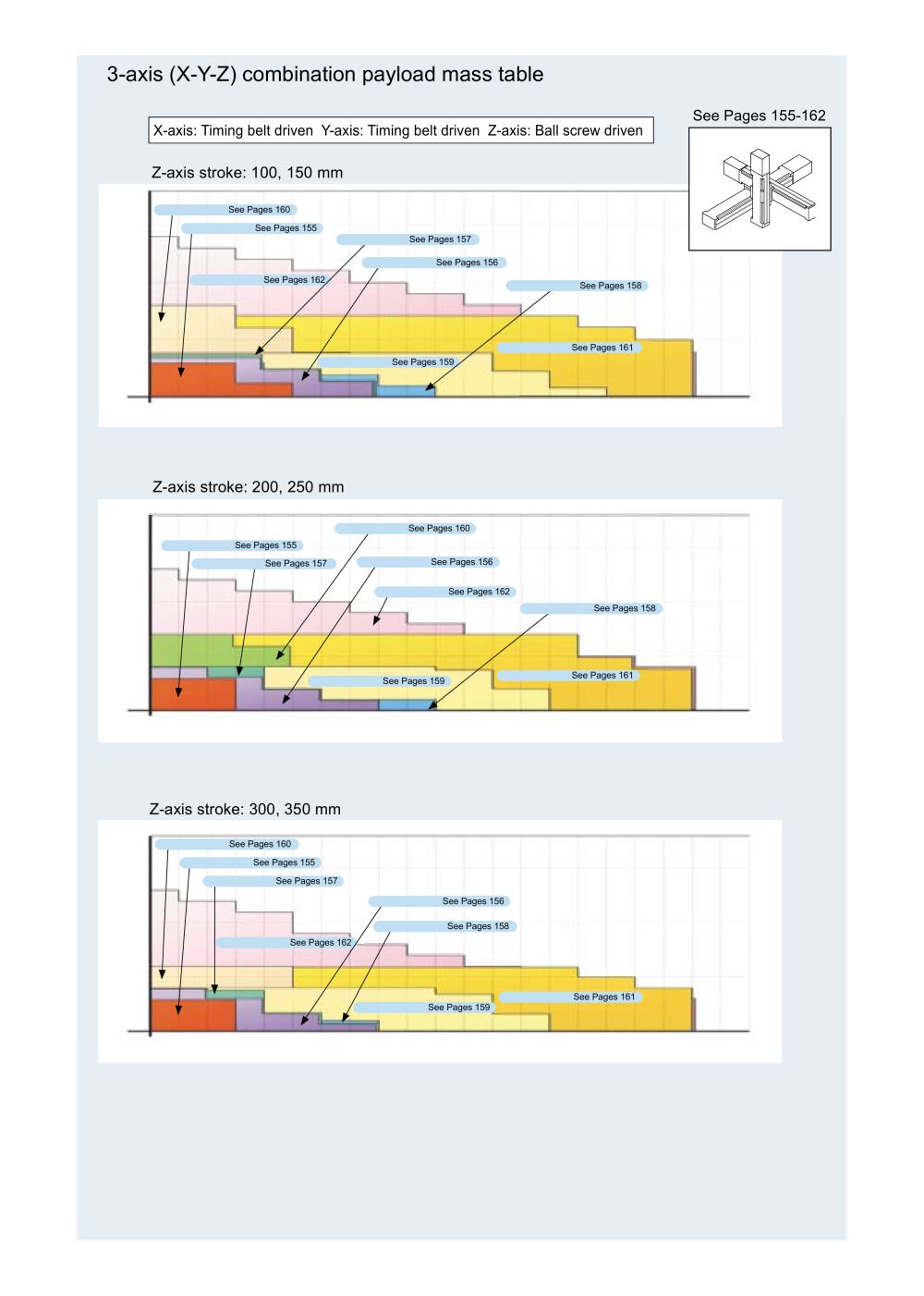

■ 3-axis (X-Y-Z) combination payload mass table

See Pages 155-162

X-axis: Timing belt manufacturer driven Y-axis: Timing belt driven Z-axis: Supplier of ball screw driven

Z-axis stroke: 100, 150 mm

Payload

(kg))

100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050

Axis 2 stroke (mm)

Z-axis stroke: 200, 250 mm

100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050

Axis 2 stroke (mm)

Z-axis stroke: 300, 350 mm

Payload (kg)

BA2-L3-A3B See Pages 160

BA2-L1 -J3A See Pages 155

BA2-L1-A3F See Pages 157

BA2-L1 -A3C See Pages 156 BA2-L3-A3E See Pages 158

BA2-L5-A3B See Pages 162

Ш1

BA2-L5-A3A See Pages 161

BA2-L3-A3G See Pages 159

100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050

Axis 2 stroke (mm)
