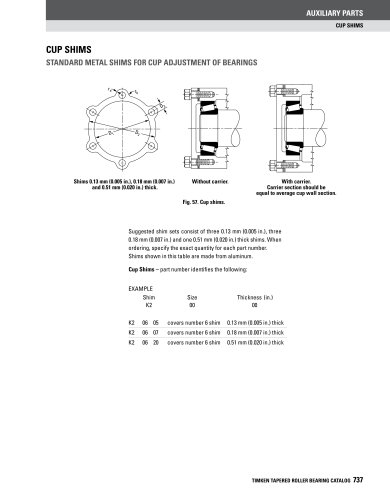

AUXILIARY F^/RFiTS CUPSHIMS CUP SHIMS STANDARD METAL SHIMS FOR CUP ADJUSTMENT OF BEARINGS Shims 0.13 mm (0.005 in.), 0.18 mm (0.007 in.) Without carrier. With carrier. and 0.51 mm (0.020 in.) thick. Carrier section should be equal to average cup wall section. Fig. 57. Cup shims. Suggested shim sets consist of three 0.13 mm (0.005 in.), three 0.18 mm (0.007 in.) and one 0.51 mm (0.020 in.) thick shims. When ordering, specify the exact quantity for each part number. Shims shown in this table are made from aluminum. Cup Shims - part number identifies the following: EXAMPLE Shim Size Thickness (in.) K2 00 00 K2 06 05 covers number 6 shim 0.13 mm (0.005 in.) thick K2 06 07 covers number 6 shim 0.18 mm (0.007 in.) thick K2 06 20 covers number 6 shim 0.51 mm (0.020 in.) thick timken tapered roller bearing catalog 737
