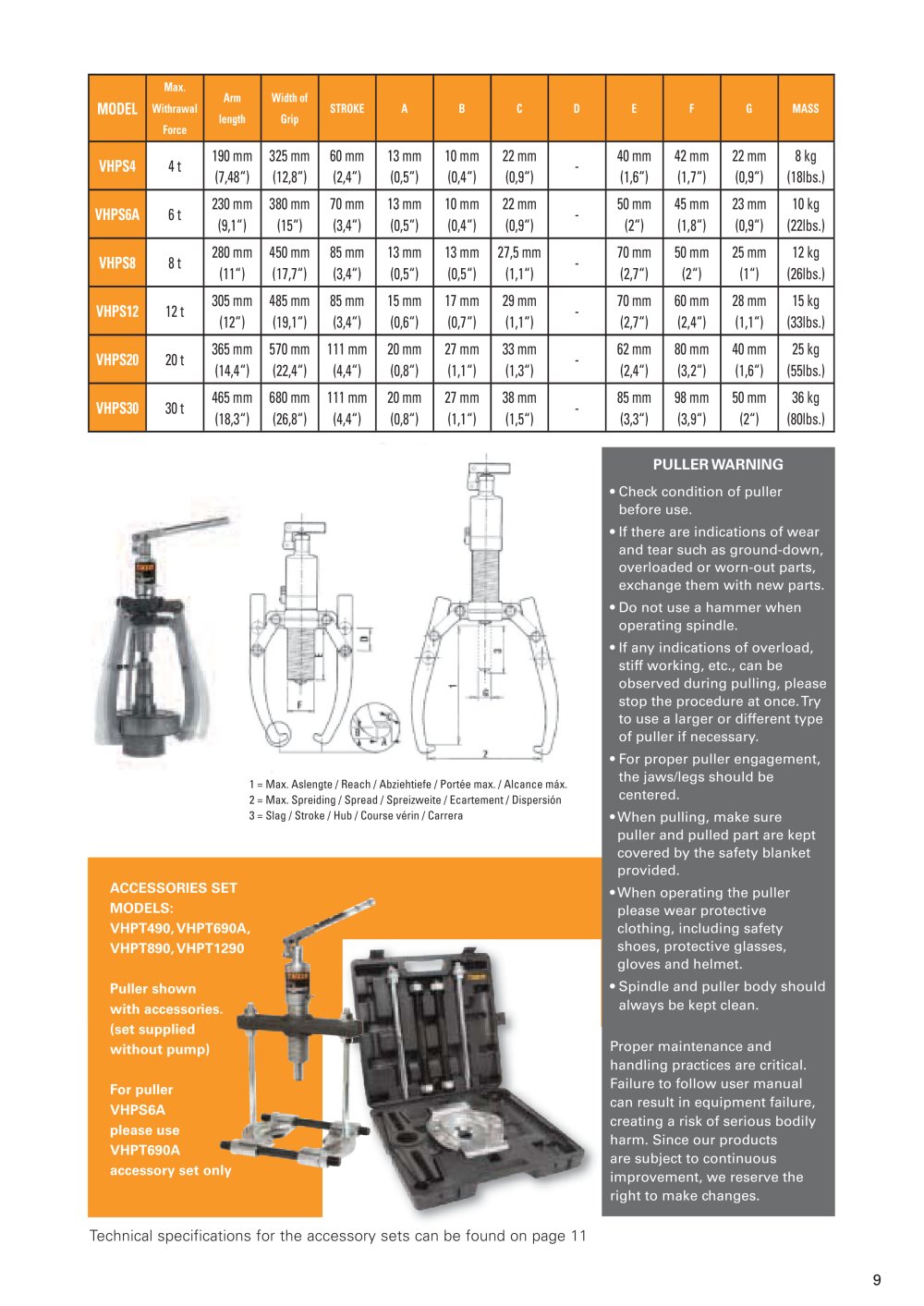

Max. Withrawal ForceArm lengthWidth of GripSTROKEABCDEFGMASS MODEL VHPS4 4 t190 mm (7,48“)325 mm (12,8“)60 mm (2,4“)13 mm (0,5“)10 mm (0,4“)22 mm (0,9“)-40 mm (1,6“)42 mm (1,7“)22 mm (0,9“)8 kg(18lbs.) VHPS6A 6 t230 mm (9,1“)380 mm (15“)70 mm (3,4“)13 mm (0,5“)10 mm (0,4“)22 mm (0,9“)-50 mm (2“)45 mm (1,8“)23 mm (0,9“)10 kg (22lbs.) VHPS8 8 t280 mm (11“)450 mm (17,7“)85 mm (3,4“)13 mm (0,5“)13 mm (0,5“)27,5 mm (1,1“)-70 mm (2,7“)50 mm (2“)25 mm (1“)12 kg (26lbs.) VHPS12 12 t305 mm (12“)485 mm (19,1“)85 mm (3,4“)15 mm (0,6“)17 mm (0,7“)29 mm (1,1“)-70 mm (2,7“)60 mm (2,4“)28 mm (1,1“)15 kg (33lbs.) VHPS20 20 t365 mm (14,4“)570 mm (22,4“)111 mm (4,4“)20 mm (0,8“)27 mm (1,1“)33 mm (1,3“)-62 mm (2,4“)80 mm (3,2“)40 mm (1,6“)25 kg (55lbs.) VHPS30 30 t465 mm (18,3“)680 mm (26,8“)111 mm (4,4“)20 mm (0,8“)27 mm (1,1“)38 mm (1,5“)-85 mm (3,3“)98 mm (3,9“)50 mm (2“)36 kg (80lbs.)
PULLER WARNING • Check condition of puller before use.• If there are indications of wear and tear such as ground-down, overloaded or worn-out parts, exchange them with new parts.• Do not use a hammer when operating spindle.• If any indications of overload, stiff working, etc., can be observed during pulling, please stop the procedure at once. Try to use a larger or different type of puller if necessary.• For proper puller engagement, the jaws/legs should be centered.• When pulling, make sure puller and pulled part are kept covered by the safety blanket provided.• When operating the puller please wear protective clothing, including safety shoes, protective glasses, gloves and helmet.• Spindle and puller body should always be kept clean.Proper maintenance and handling practices are critical. Failure to follow user manual can result in equipment failure, creating a risk of serious bodily harm. Since our products are subject to continuous improvement, we reserve the right to make changes. 1 = Max. Aslengte / Reach / Abziehtiefe / Portée max. / Alcance máx.2 = Max. Spreiding / Spread / Spreizweite / Ecartement / Dispersión3 = Slag / Stroke / Hub / Course vérin / Carrera ACCESSORIES SETMODELS:VHPT490, VHPT690A, VHPT890, VHPT1290 Puller shown with accessories.(set supplied without pump)For puller VHPS6A please use VHPT690A accessory set only Technical specifications for the accessorysets can be found on page 11 9
