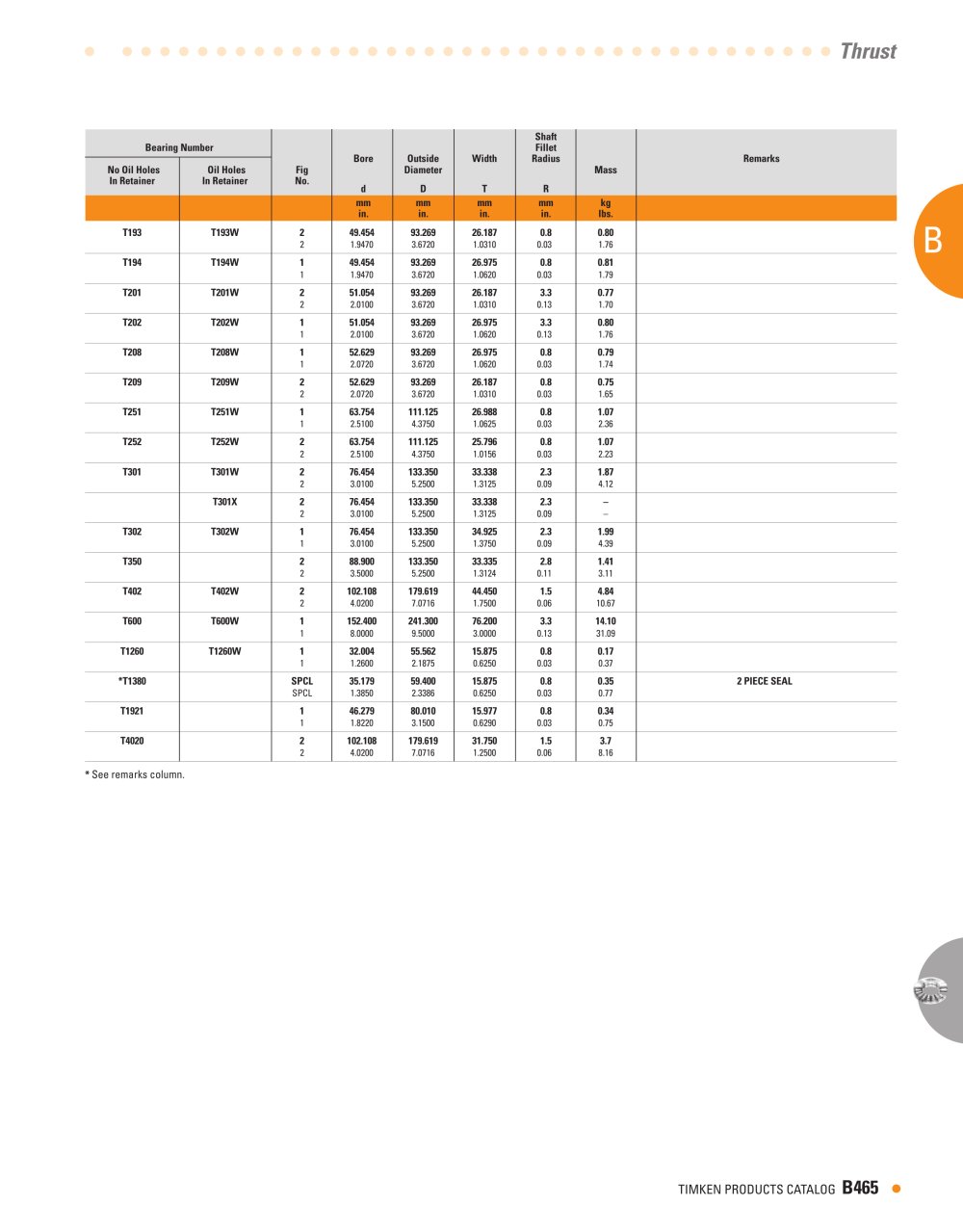

ROLLER BEARINGS - 467 / 476 Pages

A
A
AB

TIMKEN PRODUCTS CATALOG B465
Thrust BeTahrirnugsst
T 193 T 193W 2 49.454 93.269 26.187 0.8 0.80
2 1.9470 3.6720 1.0310 0.03 1.76
T 194 T 194W 1 49.454 93.269 26.975 0.8 0.81
1 1.9470 3.6720 1.0620 0.03 1.79
T 201 T 201W 2 51.054 93.269 26.187 3.3 0.77
2 2.0100 3.6720 1.0310 0.13 1.70
T 202 T 202W 1 51.054 93.269 26.975 3.3 0.80
1 2.0100 3.6720 1.0620 0.13 1.76
T 208 T 208W 1 52.629 93.269 26.975 0.8 0.79
1 2.0720 3.6720 1.0620 0.03 1.74
T 209 T 209W 2 52.629 93.269 26.187 0.8 0.75
2 2.0720 3.6720 1.0310 0.03 1.65
T 251 T 251W 1 63.754 111.125 26.988 0.8 1.07
1 2.5100 4.3750 1.0625 0.03 2.36
T 252 T 252W 2 63.754 111.125 25.796 0.8 1.07
2 2.5100 4.3750 1.0156 0.03 2.23
T 301 T 301W 2 76.454 133.350 33.338 2.3 1.87
2 3.0100 5.2500 1.3125 0.09 4.12
T 301X 2 76.454 133.350 33.338 2.3 –
2 3.0100 5.2500 1.3125 0.09 –
T 302 T 302W 1 76.454 133.350 34.925 2.3 1.99
1 3.0100 5.2500 1.3750 0.09 4.39
T 350 2 88.900 133.350 33.335 2.8 1.41
2 3.5000 5.2500 1.3124 0.11 3.11
T 402 T 402W 2 102.108 179.619 44.450 1.5 4.84
2 4.0200 7.0716 1.7500 0.06 10.67
T 600 T 600W 1 152.400 241.300 76.200 3.3 14.10
1 8.0000 9.5000 3.0000 0.13 31.09
T 1260 T 1260W 1 32.004 55.562 15.875 0.8 0.17
1 1.2600 2.1875 0.6250 0.03 0.37
*T1380 S PCL 35.179 59.400 15.875 0.8 0.35 2 PIECE SEAL
SPCL 1.3850 2.3386 0.6250 0.03 0.77
T 1921 1 46.279 80.010 15.977 0.8 0.34
1 1.8220 3.1500 0.6290 0.03 0.75
T 4020 2 102.108 179.619 31.750 1.5 3.7
2 4.0200 7.0716 1.2500 0.06 8.16
S haft
Bearing Number Fillet
Bore Outside Width R adius R emarks
No Oil Holes Oil Holes Fig Diameter Mass
In Retainer In Retainer No.
d D T R
mm mm mm mm kg
in. in. in. in. lbs.
* See remarks column.

ROLLER BEARINGS
  1. P. 1

  2. P. 462

    A AB Roler BearingsA •B460 TIMKEN PRODUCTS CATALOGTAPERED ROLLER THRUST BEARINGsTYPE TTSV• Designed with a full complement of controlled contour...
  3. P. 463

    AAAB•TIMKEN PRODUCTS CATALOG B461Thrust BeTahrirnugsstTAPERED ROLLER THRUST BEARINGsTYPE TTSP• The types TTSP and TTSPS (not shown) thrust...
  4. P. 464

    A AB Roler BearingsA •B462 TIMKEN PRODUCTS CATALOG*T114 *T114W 1 25.654 55.562 15.875 0.8 – T 114 AND T114W HAVE 2 BORES, OTHER1 1.0100 2.1875...
  5. P. 465

    AAAB•TIMKEN PRODUCTS CATALOG B463Thrust BeTahrirnugsstTAPERED ROLLER THRUST BEARINGsTYPE TTC-TTCS• The types TTC, TTCS and TTCL (not shown)...
  6. P. 466

    A AB Roler BearingsA •B464 TIMKEN PRODUCTS CATALOGT 152 2 38.354 72.619 20.638 0.8 0.352 1.5100 2.8590 0.8125 0.03 0.77T 157 T 157W 1 39.954 72.619...
  7. P. 467

  8. P. 468

    A AB Roler Bearings•B466 TIMKEN PRODUCTS CATALOGNotes
  9. P. 469

    A BThrust Bearings•TIMKEN PRODUCTS CATALOG B467AUXILIARY PARTScup shimsSta ndard metal shims for cup adjustment bearingsK20605 K20607 K20620 4 6.4...
  10. P. 470

    AB • B468 TIMKEN PRODUCTS CATALOGAUXILIARY PARTScup shimsSta ndard metal shims for cup adjustment bearingsK22505 K22507 K22520 6 15.7 159.5 190.5...
  11. P. 471

    BA•TIMKEN PRODUCTS CATALOG B469Thrust BearingsAUXILIARY PARTST50605 0.13 63.50.005 2.50T50606 0.18 12.7 35.1 60.5 14.20.007 0.50 1.38 2.38 0.56T50607...
  12. P. 472

    AB • B470 TIMKEN PRODUCTS CATALOGAUXILIARY PARTSThe designs shown in figures 1 to 6 show various methods ofusing standard locknuts, lockwashers,...
