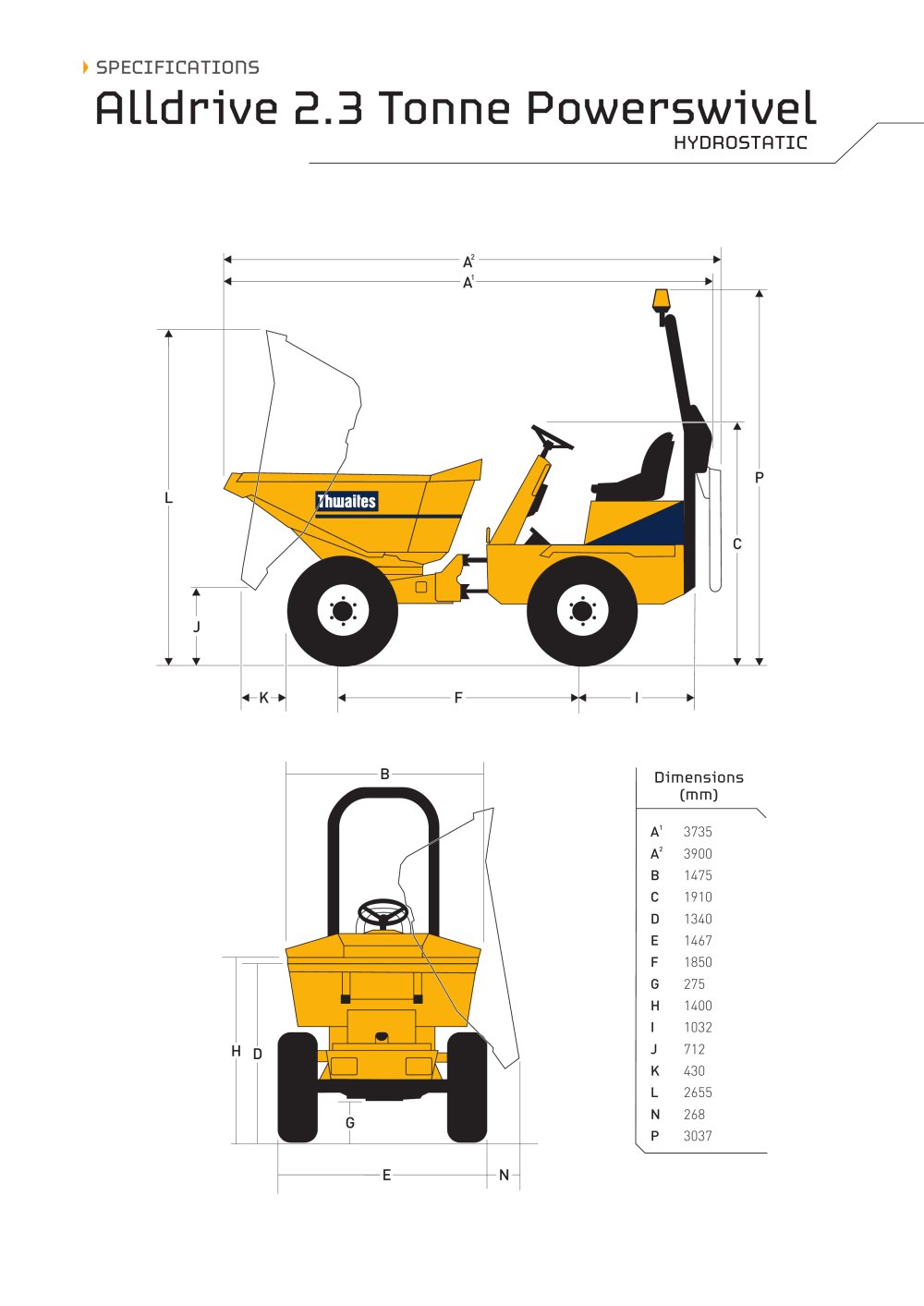

Alldrive 2.3 Tonne Powerswivel

HYDROSTATICSPECIFICATIONS

A

2

A

1

P L

P

C K F IJ

B Dimensions(mm)

A
1 3735 A
2 3900 B 1475 C 1910 D 1340 E 1467 F 1850 G 275 H 1400 I 1032

H D

J 712 K 430 L 2655

G

N 268 P 3037

E N
