SPECIFICATIONS

1.5 Tonne Hi-swivel - 40842 Alldrive 1.5 Tonne Hi-Swivel

A

2

A

1

P LR C UT J K F I

E

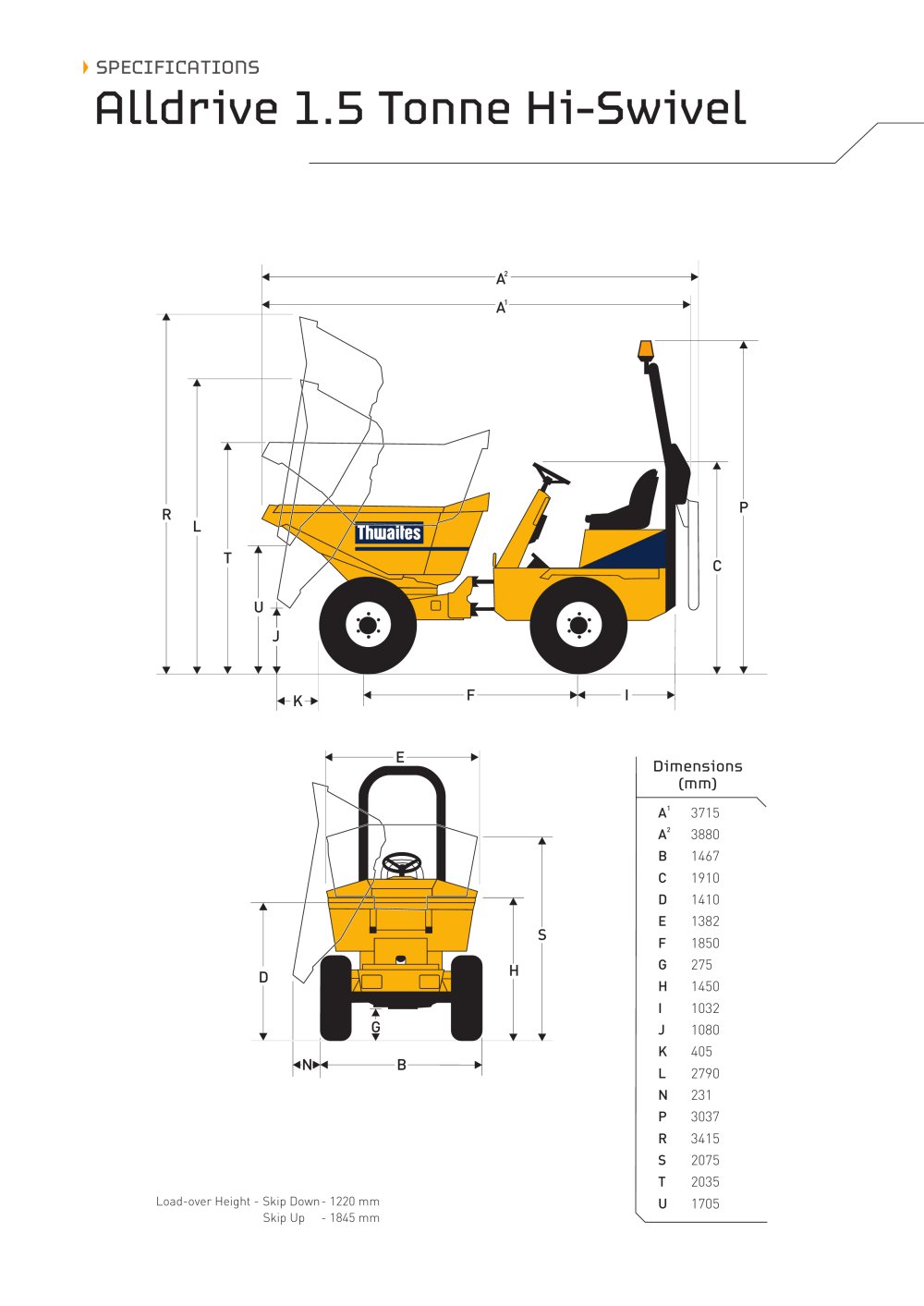

Dimensions(mm)

A
1 3715 A
2 3880 B 1467 C 1910 D 1410 E 1382 F 1850

HS

G 275

D

H 1450 I 1032

G

J 1080 K 405

N B

L 2790 N 231 P 3037 R 3415 S 2075 T 2035
Load-over Height - Skip Down- 1220 mmSkip Up- 1845 mm U 1705
