Optomechanics

Tools of the trade - Vol 18 - 36188 Compact Lab Jack

Mounting Basics

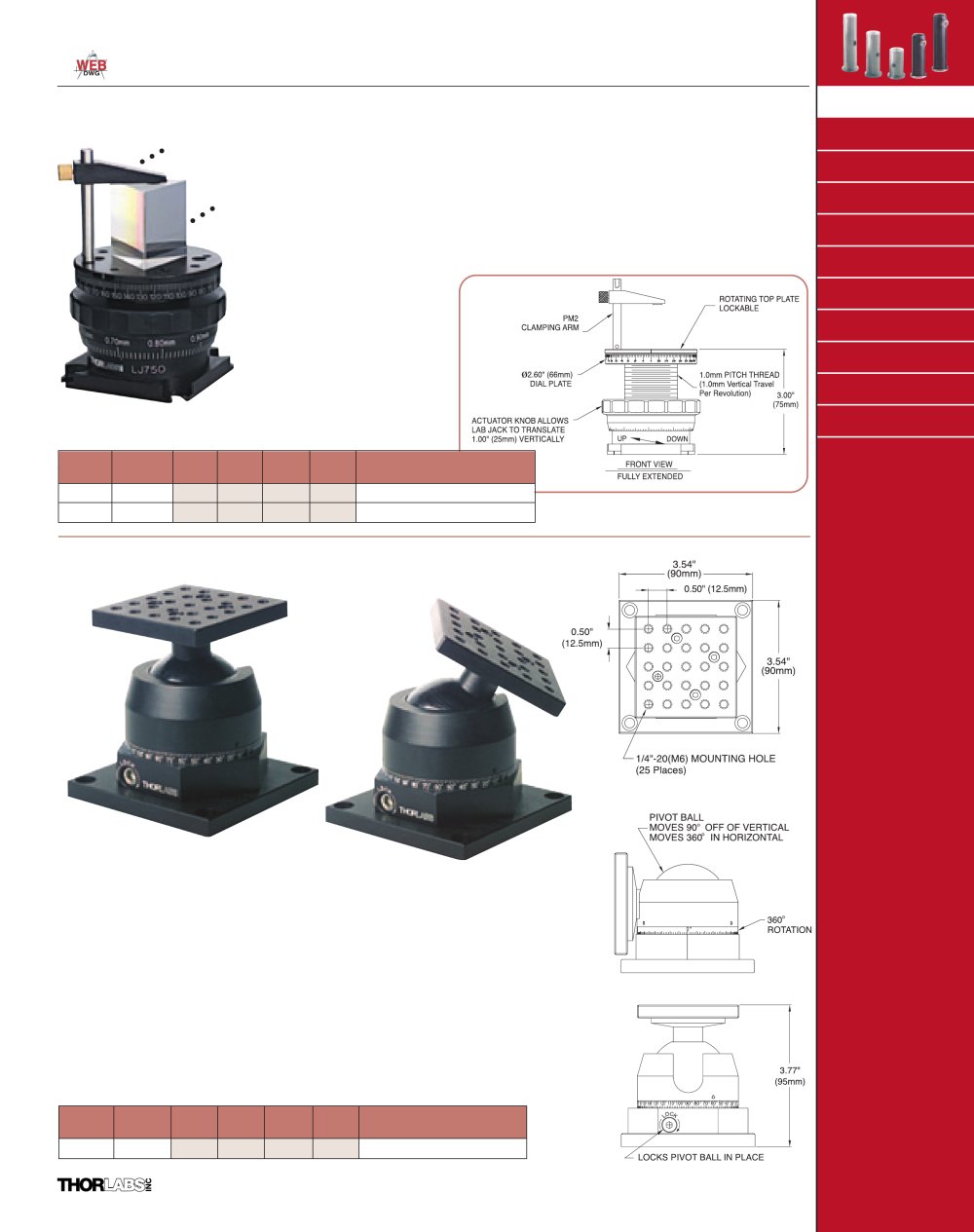

The LJ750 is a compact vertical translation platform. The large actuator knob isgraduated in 10µm increments allowing calibrated vertical height changes. 1/4"-20 (M6), #8-32 (M4), and #6-32 (M4) mounting holes are provided on the top platform. Additionally, the top platform can be rotated 360°and locked in place.

Optical Rails

PM2 CLAMPING ARM (included with LJ750)

Mirror Mounts

PRISMS See our expanded Optics section.

Lens Mounts

â–

High Stability Lab Jack

â–

2" (50mm) Fully Collapsed

Filter MountsRotation

â–

3" (75mm) Fully Extended

â–

Parallel to within ±0.005"Over Entire Range

Post Mounted

â–

200 lbs (90kg)Static Load Capacity

Adapters V-MountsApertures

LJ750

& Iris Diaphragms Lens Tubes Cage Systems

METRIC ITEM#ITEM#$£ ¥DESCRIPTION LJ750*LJ750/M*$299.00£224.25 313,95¥50,830Compact Lab JackPM2PM2/M$14.00£10.50 14,70¥2,380Clamping Arm * One PM2 (PM2/M) included.

Super Base

SL20

The SL20 Super Base is a high precision ball and socket mounting platform that provides free spherical motion over a complete hemisphere.The locking mechanism ensures a positive holding force that can support 50kgcentralized loads or 27N-m (20 ft-lbs) cantilever loads.Applications include flexible inspection systems (video or optical microscope), target positioning, and detection systems.

â–

Rapid Angular Positioning

â–

Full ±90°and 360°Rotation

â–

Single Lock (3/16" Socket) Mechanism Provides Smooth 3 Axes of Rotation Plus Positive Locking

METRIC ITEM#ITEM#$£ ¥DESCRIPTION SL20SL20/M$258.00£193.50 270,90¥43,860Super Base Ball Stage

Sales: 973-579-7227

85
