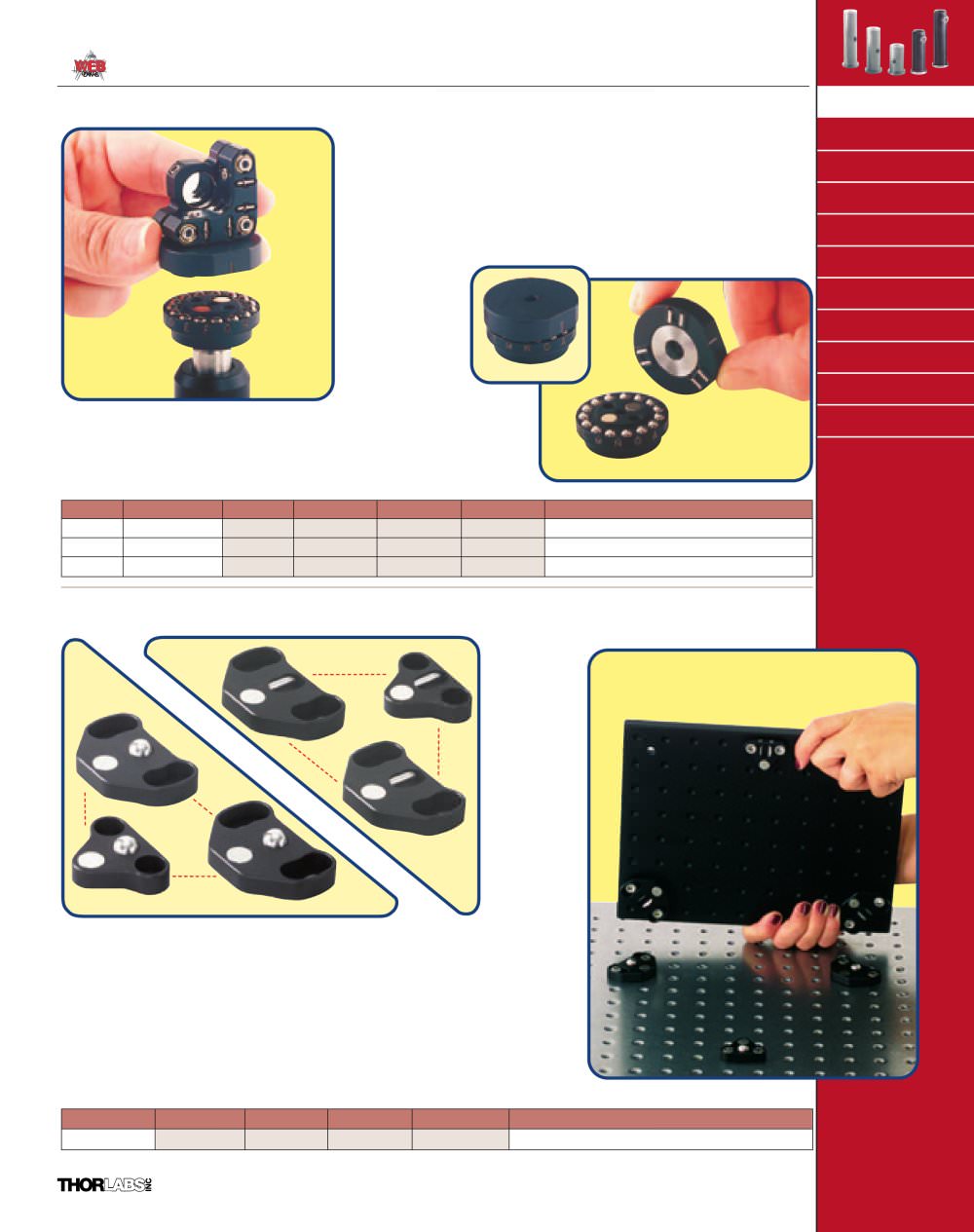

Tools of the trade - Vol 18 - 36188 Indexing Mounting Base

Mounting Basics

This optic mount is ideal for redirecting a laser to multiple targets on your opticaltable. Applications include: precise switching of shared laser systems, directing optical signals to multiple test instruments, and easy exchange of optical components (with extra top mounts).For best performance, ensure that the NX1F is securely attached to its supportstructure. A series of (3) #8-32 (M4-0.7) mounting holes are provided for non- post mounting applications.

Optical Rails Mirror Mounts Lens Mounts Filter MountsRotation Post Mounted Adapters V-MountsApertures

NX1FNX1BNX1FT

& Iris Diaphragms Lens Tubes

â–

Rotates in 15 discrete Steps to Allow PreciseRe-directing of Shared Laser

Cage Systems

â–

Repeatability Better than 10µrad

â–

#8-32 (M4) Mounting Holes.

ITEM#METRIC ITEM#$£ ¥DESCRIPTION NX1FNX1F/M$79.00£59.25 82,95¥13,43015 Position Indexing Mount NX1BNX1B/M$42.00£31.50 44,10¥7,140Extra Bottom PlateNX1FTNX1FT/M$37.00£27.75 38,85¥ 6,290Extra Top Plate

Kinematic Breadboard Seats

BOTTOMPLATESET TOPPLATESET Slotted design allows the 3 V-Grooves to be aligned to a common center for greatest stability. The KBS98 kinematic seats can be used to convert any breadboard into a kinematic platformthat can be removed and replaced with a high degree of accuracy. Two of the three seats of each set (top & bottom) have elongated slots to allow the seats to all point to a common center in the middle of the breadboard.

â–

3 Radial V-Groove Kinematic Design

â–

Build your Own Kinematic Base System with our Breadboards

â–

Magnetically Coupled with High strength Rare-Earth Magnets

â–

1/4"-20 (M6) 1" (25mm) Centers Turns Any Breadboard into a Kinematic Base

ITEM# $£ ¥DESCRIPTION KBS98*$128.00£96.00 134,40¥21,760Complete 6 Piece Kinematic Seat Set
*Universal Design, Imperial and Metric compatible

Sales: 973-579-7227

83
