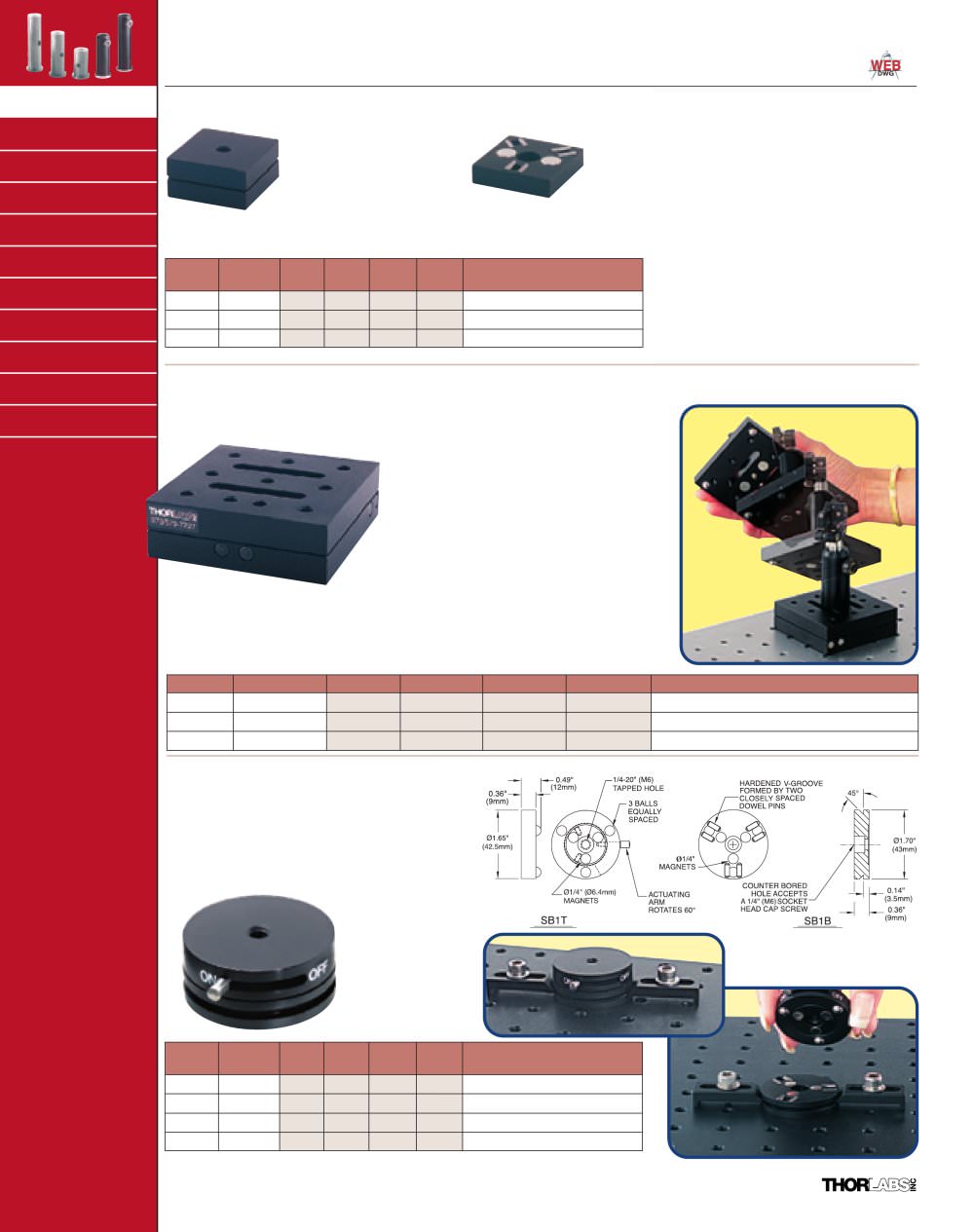

Optomechanics

Kinematic Base Plates 1 x 1

Mounting Basics

This kinematic base consists of

two plates: a top mounting plate and a bottom base plate. The two plates are magnetically coupled using two pairs of high strength magnets.

The top plate can be removed and replaced, automatically repositioning to an exact location with the repeatability of a micro-radian.

The bottom plate can be fastened using a center-located #8 (M4) counterbore.

KB1X1

#8-32 (M4) Mounting Hole 0.50 Assembly Height

KBB1X1

#8 (M4) Counter bore Mounting Hole

Filter Mounts


Post Mounted		METRIC
Adapters	ITEM#	ITEM#	$	£	€	¥	DESCRIPTION
Adapters	KB1X1	KB25/M	$ 68.00	£ 51.00	€ 71,40	¥11,560	Full Assembly, 1" (25mm) x 1" (25mm)
V-Mounts	KBT1X1	KBT25/M	$ 35.00	£ 26.25	€ 36,75	¥ 5,950	Top Plate, 1" (25mm) x 1" (25mm)
	KBB1X1	KBB25/M	$ 35.00	£ 26.25	€ 36,75	¥ 5,950	Bottom Plate, 1" (25mm) x 1" (25mm)

& Iris Diaphragms

Kinematic Base Plates 3 x 3

KB3X3: Kinematic Base

This kinematic base consists of two plates: a top mounting plate and a bottom base plate. The two plates are magnetically coupled using two pairs of high strength magnets.

The optic mount is ideal for redirecting a laser to multiple targets on your optical table. Applications include: precise switching of shared laser systems, directing optical signals to multiple test instruments, and easy exchange of optical components (with extra top mounts).

The bottom plate can be fastened to an optical bench using two 1/4"-20 (M6) clearance slots. These mounting slots can be accessed with the top plate in place.

3 x 3 Kinematic Base


ITEM#	METRIC ITEM#	$	£	€	¥	DESCRIPTION
KB3X3	KB75/M	$ 82.00	£ 61.50	€ 86,10	¥ 13,940	Full Assembly, 3" (75mm) x 3" (75mm) x 1" (25mm)
KBT3X3	KBT75/M	$ 42.00	£ 31.50	€ 44,10	¥ 7,140	Top Plate only, 3" (75mm) x 3" (75mm)
KBB3X3	KBB75/M	$ 42.00	£ 31.50	€ 44,10	¥ 7,140	Bottom Plate only, 3" (75mm) x 3" (75mm)

Switchable Kinematic Base

This compact kinematic base is designed to allow easy '^9mm' removal and exact repositioning of the top plate.

An ON/OFF switch allows the magnetic force that firmly holds the two plates together to be interrupted for easy separation.

HARDENED V-GROOVE FORMED BY TWO CLOSELY SPACED DOWEL PINS

COUNTER BORED HOLE ACCEPTS A1/4" (MS) SOCKET HEAD CAP SCREW

Removable top plate 01.68" (042.7mm)

SB1B


ITEM#	METRIC ITEM#	$	£	€	¥	DESCRIPTION
SB1	SB1/M	$ 88.00	£ 66.00	€ 92,40	¥14,960	Complete Kinematic Base
SB1T	SB1T/M	$ 56.00	£ 42.00	€ 58,80	¥ 9,520	Top Plate Switchable Kinematic Base
SB1B*	SB1B*	$ 38.00	£ 28.50	€ 39,90	¥ 6,460	Bottom Plate Switchable Kinematic Base
CL6*	CL6*	$ 5.45	£ 4.09	€ 5,72	¥ 926	Low Profile Table Clamp

THOR <H

Sales: 973-579-7227
