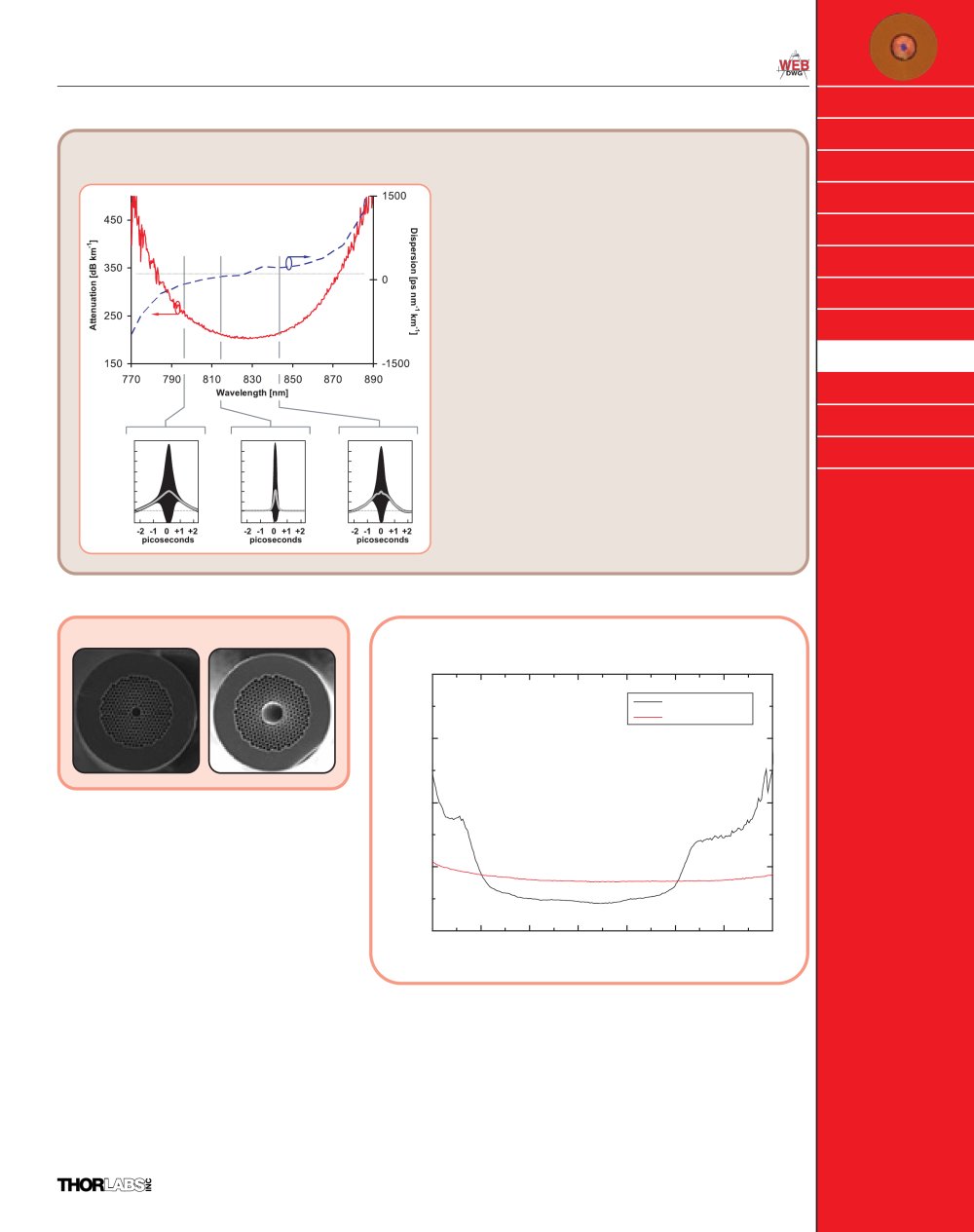

Application Example - Delivery of fs-pulses from a Ti:Sapphire Laser
Optical Switches
Rackbox Systems
Since most of the optical power is located in the core and cladding holes and not in the glass, the non-linearity of hollow core fibers can be 2-3 orders of magnitude smaller than that of conventional fibers. In combination with the fact that dispersion crosses zero within the operating waveband, this makes these fibers ideally suited for the delivery of ultra-short
high power optical pulses.
This is demonstrated here for the delivery of 150 fs / 8 nJ pulses from a Ti:sapphire laser over a 1.5 m long fiber. Around
the zero dispersion wavelength the pulses leave the fiber virtually undistorted, despite the fact that the peak power
exceeds 100 kW.
Low non-linearity and anomalous dispersion at any wavelength
also makes is possible to transmit more powerful pulses in a
soliton regime23. Peak powers of up to >2 MW have been
transmitted without causing damage to the fiber.
1) Gobel et al., June 1, Opt. Lett., Vol. 29, (11 ), 07/2004
2) Ouzounov et al., Science, Vol. 301, 09/2003
3) Luan et al., Opt. Express, Vol. 12, 03/2004
Connectors/ Termination Tools
Single-Mode Fiber
Rare Earth Doped
Single-Mode: PM
Photonic Crystal Fiber
Multimode Fiber:
Graded Index
Multimode Fiber: Step Index
Waveguide Circuits
-2 -1 0 +1 +2 picoseconds
-2-1 0+1 +2 picoseconds
Transmission Spectra - 7-Cell & 19-Cell PCFs
100
75
50
Core size - 7 and 19 cell cores
Hollow core fibers are available in two core sizes, optimized for different application requirements:
7 cell core:
■ Larger Continuous Operating Bandwidth
■ Smaller Number of Core Modes and Parasitic Surface Modes
19 cell core:
■ Larger Mode Field Diameter
■ Lower M2 of Fundamental Mode (more Gaussian-like) Resulting in Increased Coupling Efficiency to High-mode Quality Lasers and Conventional Fibers
■ Lower Attenuation
■ Lower Dispersion and Dispersion Slope
■ Lower Optical Non-linearity
■ Higher Breakdown Power Threshold
25
0
1500
1525
1550
1575
1600
1625
1650
1675
Wavelength [nm]
The graph compares typical transmission spectra for a 7 cell (HC-1550-02) and a 19 cell core fiber (HC19- 1550-01), both designed for operation at 1550 nm. The peaks in the transmission band of the 19 cell fiber are due to surface modes (modes at the boundary between core and cladding) that become degenerate in its propagation constant with the fundamental mode at certain wavelengths.
