Optomechanics

Swivel Post Clamp Three independent controls facilitate angular and height adjustment. Brass thumbscrews with hex sockets are used for greater holding powerwithout risking damage to the mating posts.

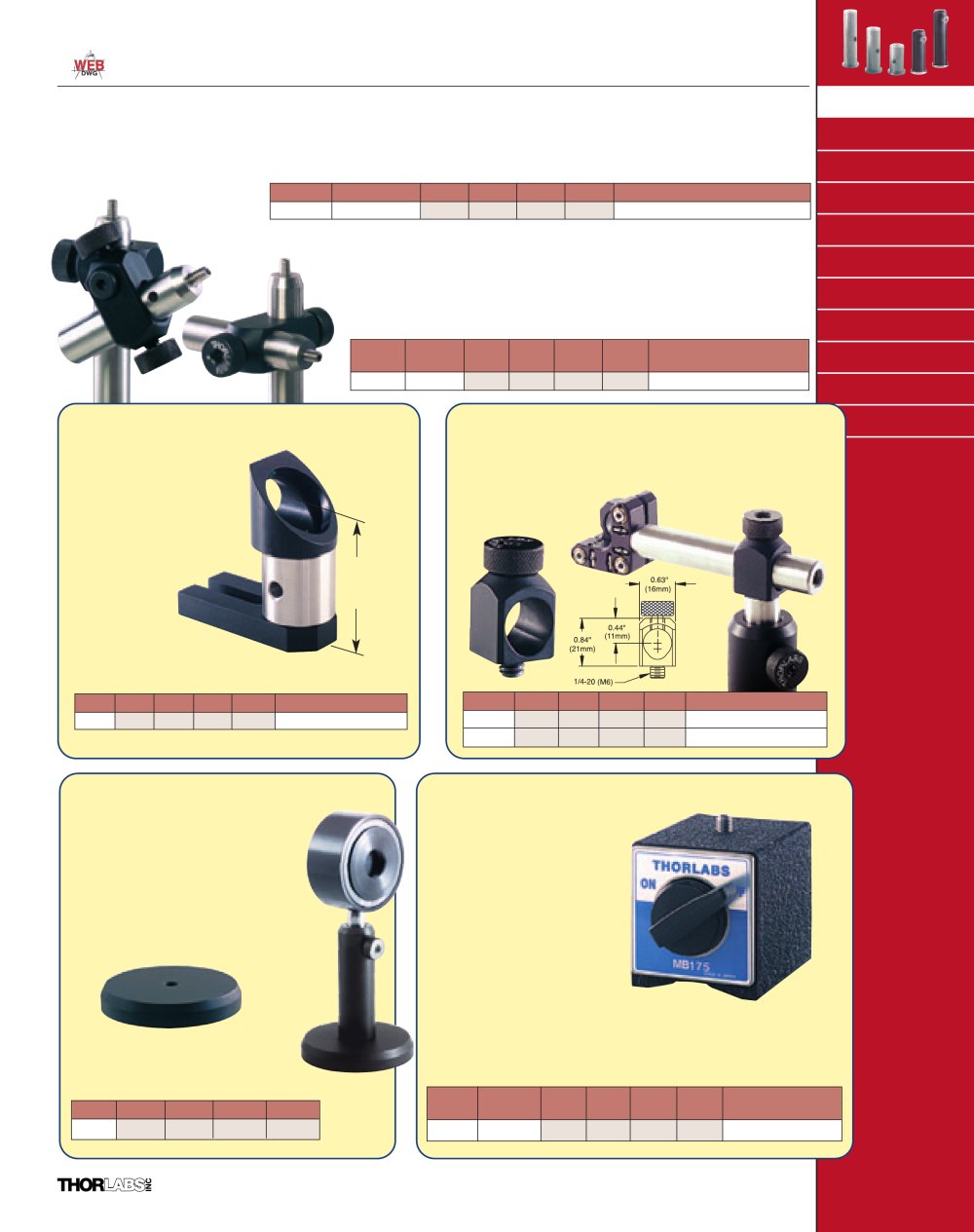

Tools of the trade - Vol 18 - 36188 Swivel & Right Angle Post Clamps

Mounting Basics Optical Rails Mirror Mounts

ITEM#METRIC ITEM#$£ ¥DESCRIPTION

Lens Mounts

SWC RA90 SWCSWC/M$ 23.00£ 17.25 24,15¥ 3,9101.2" (30mm) x 1.3" (33mm) x 5/8" (16mm)

Filter MountsRotation

Right Angle Post Clamp

Post Mounted

These clamps are used to mount two 1/2" diameter posts (our TR series) at right angles to each other. Double bored for two stable lines of contact between theposts and clamp.

Adapters V-MountsApertures

METRIC ITEM#ITEM#$£ ¥SIZE

& Iris Diaphragms

RA90RA90/M$10.45£7.84 10,97¥1,7775/8" (16mm) x 2.2" (56mm)

Lens Tubes

45° Mirror Holders Ø 0.5" Post End Clamp

Cage Systems

These 45°mounts are useful when there is aneed to change theoptical beam height on an optics bench.The completeassembly is shown inthe photograph The RA180 is designed to provide a “T”connection for ourTR-Series posts (see page 70). Additionally this component can be combined with our RA90 (right angle post clamp, page 75)to produce a heavy duty swivel clamp.

BeamHeight 2" Price includes complete assembly as shown in photo. ITEM#$£ ¥DESCRIPTION ITEM#$£ ¥DESCRIPTION H45B2*$40.00£30.0 42,00¥6,80045°Mirror Holder, 1" Optic RA180$ 10.00£ 7.50 10,50¥ 1,700Ø0.5" Post End Clamp (1/4"-20)RA180/M$ 10.00£ 7.50
*Universal Design Imperial &Metric Compatible 10,50¥ 1,700Ø0.5" Post End Clamp (M6)

Instrumentation BaseMagnetic Base

MB175 â–

Ø2.98" (76mm) x 1/2"(12.7mm) thick. This heavy duty magnetic basehas a switchable magnet for quick positioning of optical components. In order to make this product appropriate foroptical bench applications (asopposed to its intended machine shop use) we have precision- ground the two bottom mounting surfaces. Standard 1/4"-20 or M6mounting hole, 175 lbs. ofholding force.

â–

Precision Machined Aluminumfor Flat, Stable Mounting.

â–

Mounting Hole Accepts 1/4"-20or M6 Screw.

IB3 Post Holder Sold Separately

For use with our standard1/2" stainless steel post or our 1" diameter post holders.

METRIC ITEM#$£ ¥ ITEM#ITEM#$£ ¥SIZE IB3*$18.00£13.50 18,90¥3,060 MB175MB175/M$46.00£34.50 48,30¥7,8201.99"W x 2.36"L x 2.16"H
*Imperial &Metric Compatible

Sales: 973-579-7227

75
