Fiber Optics

Highly

Doped Erbium Fibers for 1.53-1.61|im Lasers & Amplifiers

Collimation Packages

Er40-4/125

Liekki Er40-4/125 is a highly doped fiber for L-band amplifiers requiring very low level of PMD and non-linear effects. This fiber is available as a low cutoff and a high cutoff version. The typical fiber

length per application is about 15m.

Optical Characteristics:

■ Peak absorption at 1530nm: 40 ± 4dB/m

■ Mode field diameter at 1550 nm: 6.5 ± 0.5|im

■ Core numerical aperture: 0.2 ± 0.02

■ Fiber cutoff wavelength: 1000-l400nm

Optical Switches

Rackbox Systems

Connectors/ Termination Tools

Single-Mode Fiber

Rare Earth Doped

Er80-8/125

Liekki Er80-8/125 is a large-mode-area single-mode fiber suitable for high-power amplifiers and lasers (output power of 25dBm or more). Good spliceability, high doping and large core make this

fiber ideal for high-peak-power pulse amplification in the eye-safe

Ujim wavelength region.

Optical Characteristics:

■ Peak absorption at 1530 nm: 80 ± 8dB/m

■ Mode field diameter at 1550 nm: 9.5 ± 0.5|im

■ Core numerical aperture: 0.13 ± 0.02

■ Fiber cutoff wavelength: 1100-1400nm

Single-Mode: PM

Photonic Crystal Fiber

Multimode Fiber: Graded Index

Multimode Fiber: Step Index

Waveguide Circuits

Optical Characteristics:

■ Peak absorption at 1530 nm: 110 ± 10dB/m

■ Mode field diameter at 1550 nm: 6.5 ± 0.5|im

■ Core numerical aperture: 0.2 ± 0.02

■ Fiber cutoff wavelength: 800-980nm

Er11

Er110-4/125

Liekki Er110-4/125 is a highly doped fiber for ultra-short pulse amplifiers operating in the 1.5|im wavelength region. Very high erbium concentration minimizes required application fiber length

while providing strong gain and reduced non -linear effects.

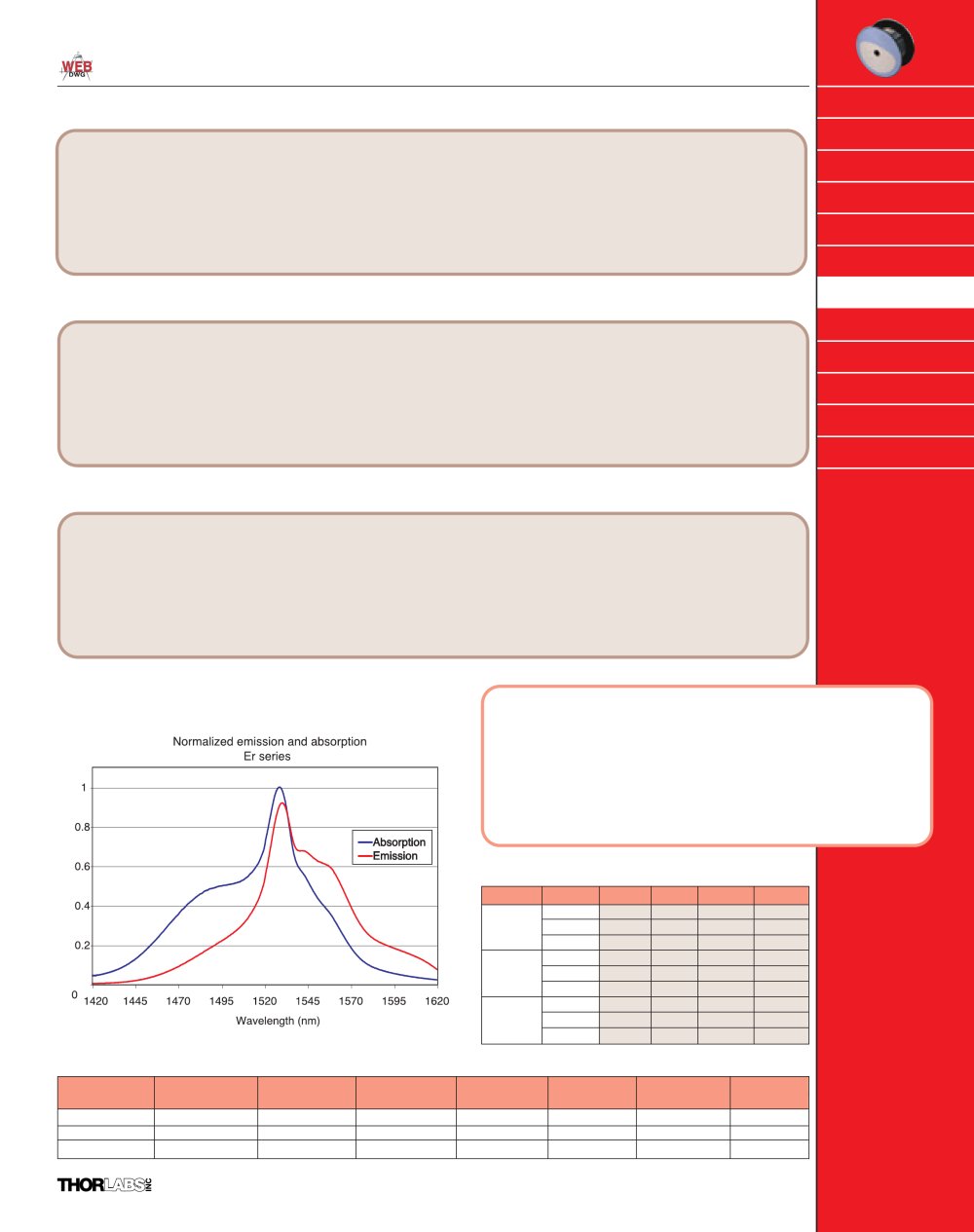

Normalized émission and absorption Er séries

Custom Fibers

To meet your unique needs, Custom erbium, ytterbium and neodymium doped fibers, preforms and core rods, including double clad and other

designs are available upon special request.

Please contact any of our Thorlabs offices or e-mail us your requirements at techsupport@thorlabs.com

PRICE SCHEDULE-Call For Quantities > 250m

1420 1445 1470 1495 1520 1545 1570 1595 1620 Wavelength (nm)

Single-mode Very Highly Er-doped Fiber Specifications


ITEM#	PRICE/m	$	£	€	¥
Er40-4/125	1 to 9m	$ 27.50	£ 20.62	€ 28,88	¥ 4,675
	10 to 49m	$ 22.00	£ 16.50	€ 23,10	¥ 3,740

	50 to 249m	$ 20.00	£ 15.00	€ 21,00	¥ 3,400
Er80-8/125	1 to 9m	$ 152.50	£114.38	€ 160,12	¥ 25,925
	10 to 49m	$ 122.00	£ 91.50	€ 128,10	¥ 20,740
	50 to 249m	$ 110.91	£ 83.18	€ 116,46	¥ 18,855
Er110-4/125	1 to 9m	$ 180.00	£135.00	€ 189,00	¥ 30,600
	10 to 49m	$ 150.00	£112.50	€ 157,50	¥ 25,500
	50 to 249m	$ 141.00	£105.75	€ 148,05	¥ 23,970


	RECOMMENDED	PEAK		CLADDING	COATING
ITEM#	OPERATING X	ABSORPTION	MFD	DIAMETER	DIAMETER	CUTOFF X	NA
Er40-4/125	L band	40 ±4dB/m	6.5 ±0.5nm	125 ±2[im	245 ±15nm	1100-1400nm	0.2 ±0.02
Er80-8/125	C, L band	80 ±8dB/m	9.5 ±0.5um	125 ±2pm	245 ±15um	1100-1400nm	0.13 ±0.02
Er110-4/125	C, L Band	110±10dB/m	6.5 ±0.5nm	125 ±2[im	245 ±15nm	800-980nm	0.2 ±0.02

THOR

Sales: 973-579-7227

875
