Tools of the trade - Vol 18 - 36188 Ball and Socket Post Adapter Filter Mount with 90° Flip Action

â–

50°adjustment cone

Optical Rails

â–

Three 90°positions

â–

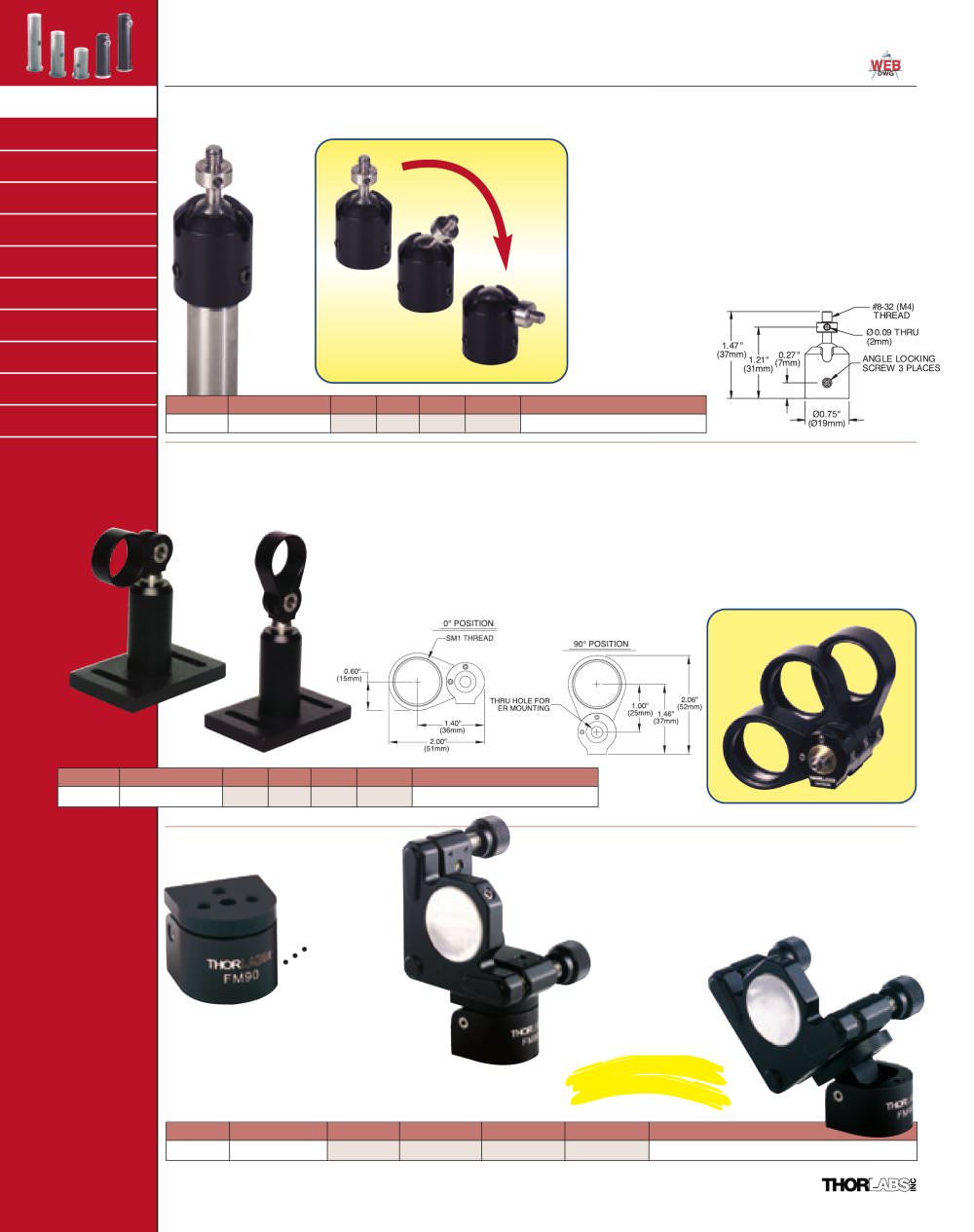

LockableThe TRB1 ball and socket adapter is a versatile positioningmount providing an angular range of 50°in addition to three 90°positions. The mount is easily locked from any one of the three available radially positioned locking screws, all of which double as tension adjusters. The top platform mimics ourstandard TR posts with a #8-32 (M4) stud and a 0.4"(10mm) diameter landing flat.

Mirror Mounts Lens Mounts Filter MountsRotation Post Mounted Adapters

TR Post SoldSeparately. See page 70

V-Mounts Apertures

#8-32 Mounting Featurein Bottom Surface.

& Iris Diaphragms Lens Tubes

ITEM#METRIC ITEM#$£ ¥DESCRIPTION

Cage Systems

TRB1TRB1/M$ 50.00£ 37.50 52,50¥ 8,500Ball & Socket Adapter

The TRF90 Filter Mount combines versatility in a compact, easy-to-operate design. The TRF90 canbe post mounted as an individual unit or mounted on a TR post (See page 70) for stacking filters in a series. A precision detent mechanism provides holding force at the 0°and 90°positions while a nylon set screw allows the mount to be locked.

TRF90 TRB1 â–

Compact, Easy-to-Operate Design

â–

Post and Rod Mounted Design for Greater Flexibility

Post & BaseAssembly Sold Separately â–

Detent Force at 0°and 90°, Lockable Across Entire Range

Simple 90°Flip Motion

ITEM#METRIC ITEM#$£ ¥DESCRIPTION TRF90TRF90/M$ 59.95£ 44.96 62,95¥ 10,192Ø1" Filter Mount with 90°Flip Action FM90

Flip Mount

â–

Highly Repeatable In/Out Function

â–

Kinematic Design Ensures Repeatability

â–

Compact Design Allows for Post Mounting

â–

Precise Indexing of Mirrors IN and OUT of Beam Path Allows Beam to be Diverted for Diagnostics

1/4" (M6) Counter bore Mounting HoleMirror MountNot Included

The FM90 is ideal for applications that requirelaser beams to be redirected for either diagnosticor beam sharing purposes. The hinged designallows an optical mount to be repositioned outside the beam path and when required, “a simple flip of the mount” relocates it back into its original position.

FLIPS90°TO CLEARBEAM PATH

ITEM#METRIC ITEM#$£ ¥DESCRIPTION FM90FM90/M$71.00£53.25 74,55¥12,070Flip Mount
