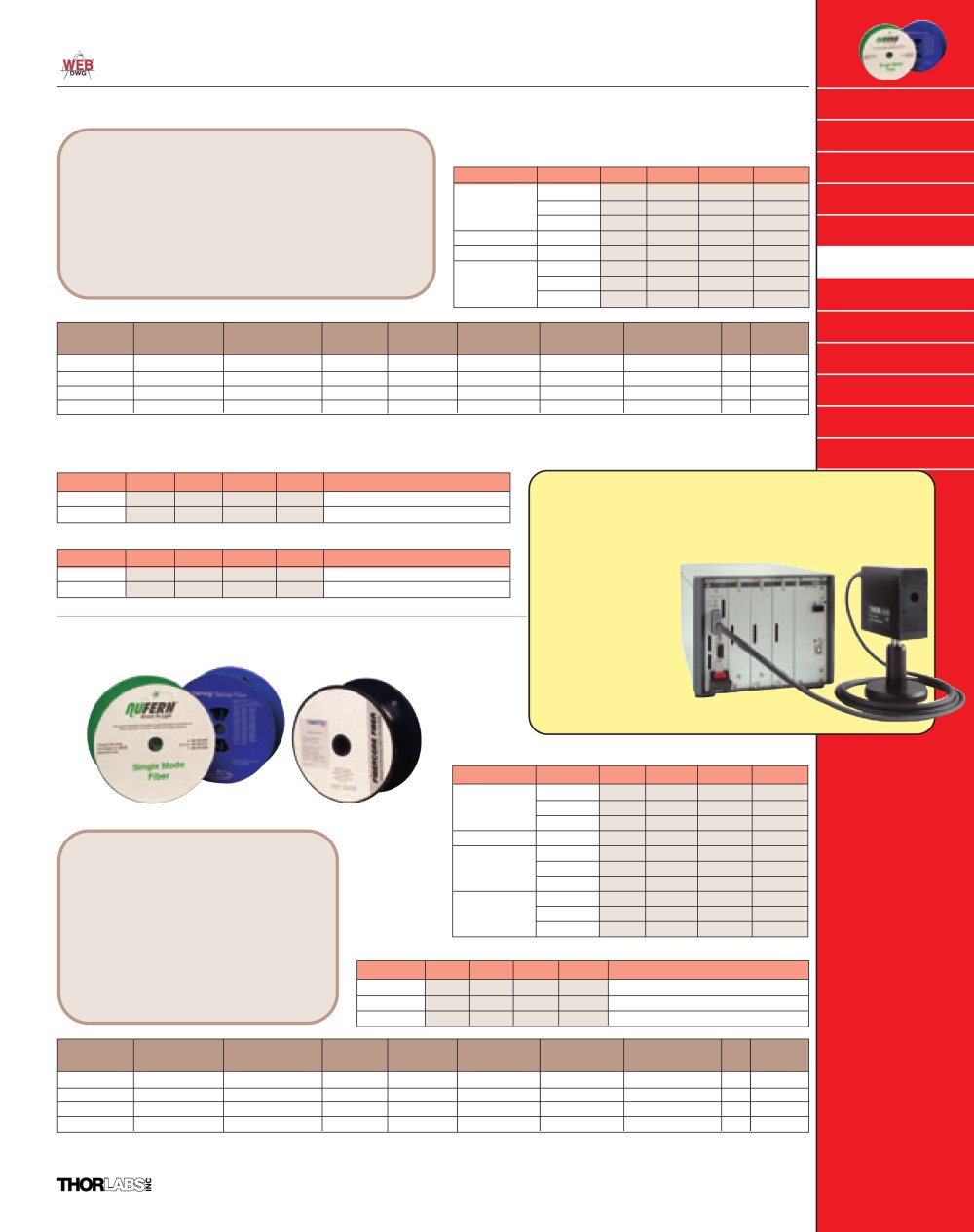

Fiber Optics

Single Mode Fiber: 980nm


Comm.		jtion Packages
O\|		jtical Switches
R	ackbox Systems
Connectors/ Termination Tools

^Features

■ Shipped from Stock

■ No Minimums

PRICE SCHEDULE-Call For Quantities Over 250m


ITEM#	PRICE/m	$	£	€	¥
SM980-5.8-125	1 to 9m	$ 5.25	£ 3.94	€ 5,51	¥ 892
SM980-5.8-125	10 to 49m	$ 3.75	£ 2.81	€ 3,94	¥ 638
	50 to 249m	$ 3.25	£ 2.44	€ 3,41	¥ 552
HI1060-J9	>100m	$ 7.50	£ 5.62	€ 7,88	¥ 1,275
HI980-J9	>100m	$ 12.00	£ 9.00	€ 12,60	¥ 2,040
980HP	1 to 9m	$ 4.75	£ 3.56	€ 4,99	¥ 808
	10 to 49m	$ 3.75	£ 2.81	€ 3,94	¥ 638
	50 to 249m	$ 2.95	£ 2.21	€ 3,10	¥ 502

■ HI1060 and HI980 have 900iim Tight Buffer Outer Jacket

■ SM980-5.8-125 has a MFD Matched to Other Fibers Used in EDFA Pump Laser Pigtails

■ 980HP Offers a Tight Second Mode Cut-off Tolerance

V_,

Single-Mode Fiber ^Rare ^Earth ^Doped


ITEM#	OPERATING WAVELENGTH	MODE FIELD DIAMETER	CLADDING	COATING (ACRYLATE)	CUT-OFF WAVELENGTH	SHORT TERM BEND RADIUS	ATTENUATION	NA	VENDOR
SM980-5.8-125	980/1064/1550nm¹	5.8um	125±1um	245±5%	870-970nm¹	-	3dB/km@980nm	0.14	Fibercore
HI1060-J9	980-1060nm	5.9um(g>980nm	125um	245±5um	920±50nm	-	1.5dB/km@1060nm²	0.14	Corning
HI980-J9	980-1550nm	4.2um(g>980nm	125um	245±5um	930nm	-	<2.5dB/km	0.20	Corning
980HP	980-1600nm	4.2±0.5um@980nm	125±1.5um	245±15um	920±30nm	>6mm	<3.5dB/km@980nm	0.20	Nufern

Single-Mode: PM

Photonic Crystal Fiber

IMIIUI..QdlJ dbMJ Step Index

1) operating wavelength range is typically 200nm above the cutoff wavelength.

2) attenuation @1310nm is <0.40db/km and @ <1550nm is <0.30db/km

veguide Circuits

STANDARD LENGTHS


ITEM#	$	£	€	¥	DESCRIPTION
HI1060-10	$ 81.20	£ 60.90	€ 85,26	¥ 13,804	10 meters HI1060 with 900um Jacket
HI1060-100	$ 756.40	£ 567.30	€ 794,22	¥128,588	100 meters HI1060 with 900um Jacket
STANDARD LENGTHS
ITEM#	$	£	€	¥	DESCRIPTION
HI980-10	$ 99.40	£ 74.55	€ 104,37	¥ 16,898	10 meters HI980 with 900um Jacket
HI980-100	$ 882.80	£ 662.10	€ 926,94	¥150,076	100 meters HI980 with 900um Jacket

Polarization Measurement Systems

■ Free Space Beam and "In-Fiber" Polarimetry

■ DOP, ER & PDL/PMD Measurements

■ 400nm-1700nm (4 Models)

■ 70dB Dynamic Range

■ SOP Accuracy ±0.2°(on Poincaré Sphere)

See Pages

806-808 PAX5700

Single Mode Fiber: 1060-1620nm

PRICE SCHEDULE-Call For Quantities Over 250m


ITEM#	PRICE/m	$		£		€		¥
	1 to9m	$	4.75	£	3.56	€	4,99	¥	808
1060XP	10 to49m	$	3.75	£	2.81	€	3,94	¥	638
	50 to249m	$	2.95	£	2.21	€	3,10	¥	502
SMF-28-J9	<100m	$	0.65	£	0.49	€	0,68	¥	110
	1 to9m	$	4.75	£	3.56	€	4,99	¥	808
1310BHP	10 to49m	$	3.75	£	2.81	€	3,94	¥	638
	50 to249m	$	2.95	£	2.21	€	3,10	¥	502
	1 to9m	$	4.75	£	3.56	€	4,99	¥	808
1550BHP	10 to49m	$	3.75	£	2.81	€	3,94	¥	638
	50 to249m	$	2.95	£	2.21	€	3,10	¥	502

eatures

■ Shipped from Stock

■ No Minimums

■ Fibers have Acrylate Coatings

■ SMF-28 has a 900_Fm Tight Buffer

Outer Jacket

■ Exceptional Core/clad Concentricity

Specifications

■ 1060XP, 1310 BHP & 1550BHP Offer

Tight Second Mode Cut-off Tolerances

STANDARD LENGTHS (Longer Lengths Available)


ITEM#	$	£	€	¥	DESCRIPTION
SMF-28-10	$ 6.50	£ 4.88	€ 6,82	¥ 1,105	10 meters SMF-28-J9 with 900um Jacket
SMF-28-100	$ 50.00	£ 37.50	€ 52,50	¥ 8,500	100 meters SMF-28-J9 with 900um Jacket
SMF-28-1000	$ 450.95	£ 338.21	€ 473,50	¥ 76,662	1000 meters SMF-28-J9 with 900um Jacket


ITEM#	OPERATING WAVELENGTH	MODE FIELD DIAMETER	CLADDING	COATING	CUT-OFF WAVELENGTH	SHORT TERM BEND RADIUS	ATTENUATION MAXIMUM	NA	VENDOR
1060XP	1060-1600nm	6.2±0.5um(g>1060nm	125±1.5um	250±15um	920±30nm	>6mm	<1.5dB/km¹	0.14	Nufern
SMF-28-J9	1260-1600nm	9.3um/10.5um	125±1.0um	250±5um	<1260	-	<0.40dB/km	0.13	Corning
1310BHP	1300-1620nm	8.6um²/9.7um³	125±1.0um	245±15um	1260±30nm	>6mm	<0.5dB/km^2, ³	0.13	Nufern
1550BHP	1460-1620nm	9.5±0.5um(g>1550nm	125±1.0um	250±15um	1400±50nm	>6mm	<0.5dB/km@1550nm	0.13	Nufern

1) attenuation 2.1db/km@980nm and1.5db/km@1060nm 2) @1310nm 3) @1550nm

THOR

Sales: 973-579-7227

865
