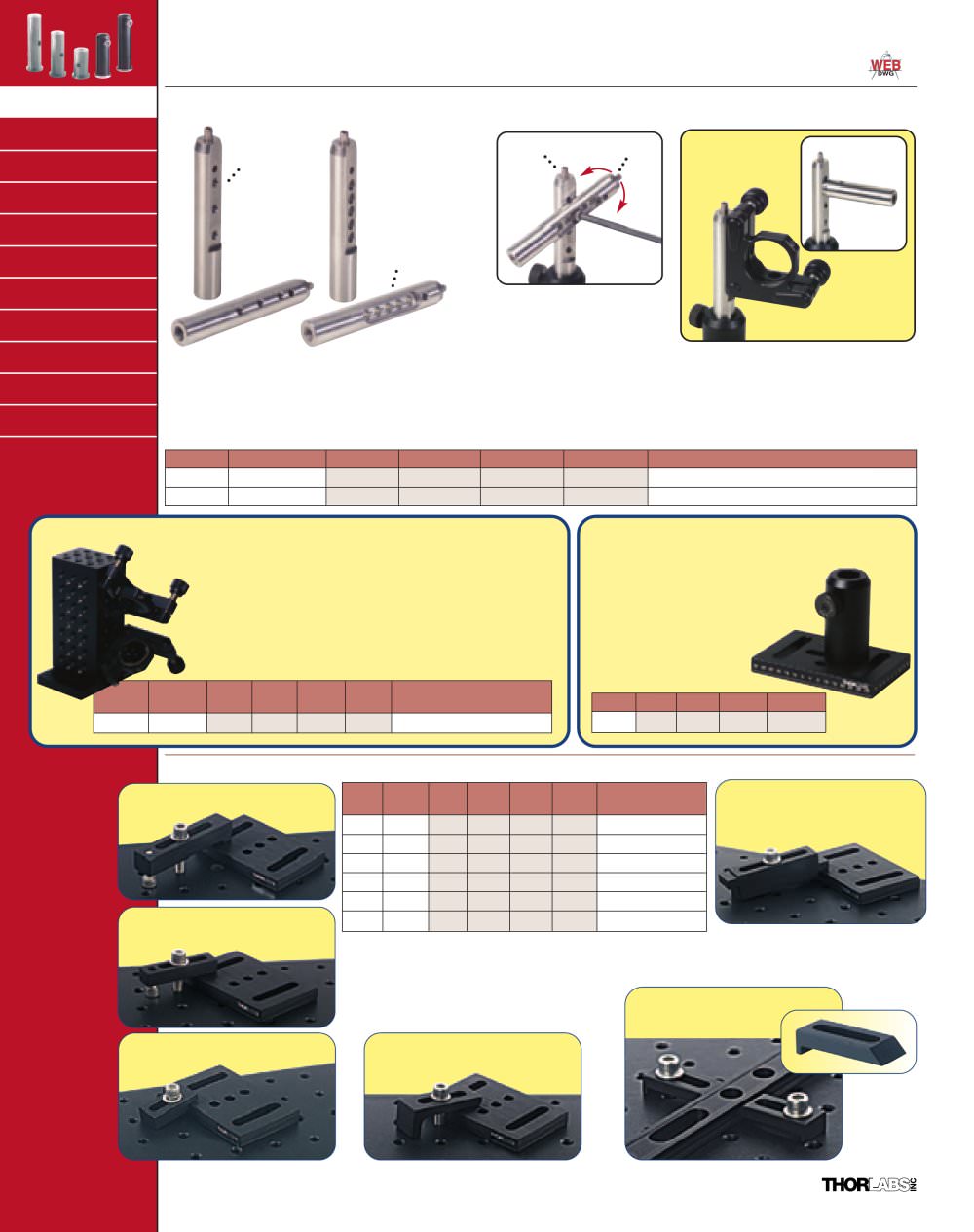

Optomechanics

Construction-Ready Posts

Mounting Basics

TR3T

#8-32 (M4) Taps

TR3C


	Mirror Mounts
	Lens Mounts
	Filter Mounts
	Rotation Post Mounted
	Adapter
	V-Mounts

#8 (M4) Counterbores

Apertures

& Iris Diaphragms

These TR posts have been designed for rigid construction. The TR3C (TR75C/M) offers five #8 (M4) counter bores and a mounting flat while the TR3T (TR75T/M) offers three #8-32 (M4) tapped holes and a mounting flat. Not only can these two TR posts be joined together for rigid structures but, common opto-mechanics including kinematic mirror mounts can be fastened to the large landing area for superior stability.

TR3C (TR75C/M) Offers Five #8 (M4) Counter Bores and Mounting Flat TR3T (TR75T/M) Offers Three #8-32 (M4) Tapped Holes and Mounting Flat Ideal for Compact, Rigid Structures

Lens Tubes

Cage Systems


ITEM#	METRIC ITEM#	$	£	€	¥	DESCRIPTION
TR3T	TR75T/M	$ 13.00	£ 9.75	€ 13,65	¥ 2,210	90° Tapped Construction Post
TR3C	TR75C/M	$ 14.00	£ 10.50	€ 14,70	¥ 2,380	90° Counter Bored Construction Post

1/4"-20 (M6) & #8-32 (M4) Tapped Tombstone M

Suitable for fixing a multitude of optical components

Equipped with 1/4"-20 (M6) and #8-32

(M4) tapped holes at standard spacing

Comes with a BA2 mounting base 160 total tapped holes for mounting

Horizontally Adjustable Mounting Base

Adjustable across length of base

■ Locking/Unlocking via Rotating the Postholder

■ Graduations in "mm" on

two sides of the base


ITEM#	$	£	€	¥
BA2T1*	$19.00	£14.25	€19,95	¥3,230

DESCRIPTION

1/4"-20(M6) and #8-32 (M4) Tombstone

¥20,060

•Universal Design Imperial and Metric Compatible.


ITEM#	METRIC ITEM#	$	£	€	¥	SIZE
CL1*	CL1*	$ 6.90	£ 5.20	€ 7,25	¥ 1,173	5/8" x 3/4" x 3"
CL2	CL2/M	$ 6.40	£ 4.80	€ 6,72	¥ 1,088	5/8" x 5/8" x 3"
CL3	CL3/M	$ 4.75	£ 3.10	€ 4,99	¥ 808	3/8" x 1/2" x 2"
CL4*	CL4*	$ 5.50	£ 4.10	€ 5,78	¥ 935	3/8"x 5/8"x 1-3/8"
CL5*	CL5*	$ 4.20	£ 2.70	€ 4,41	¥ 714	3/4" x 3/4" x 2"
CL6*	CL6*	$ 5.45	£ 4.09	€ 5,72	¥ 926	Miniature Rail Clamp

CL1: General Purpose Clamp, most Applications Require Two Clamps for Stable Lockdown.

•Universal Design Imperial and Metric Compatible.

The CL series of optical clamps include four standard designs (CL1, CL2, CL3, and CL5) which will suffice for all but the most specialized applications. When space is at a premium, our CL4 clamp is

recommended.

f CL6: For Use with Our RLA Series Optical Rails.

See Page 102.

IMS

Hardware sold separately, see page 99.

CL5: Our Most Popular General Purpose Clamp.
