WÊB

Fiber Optics

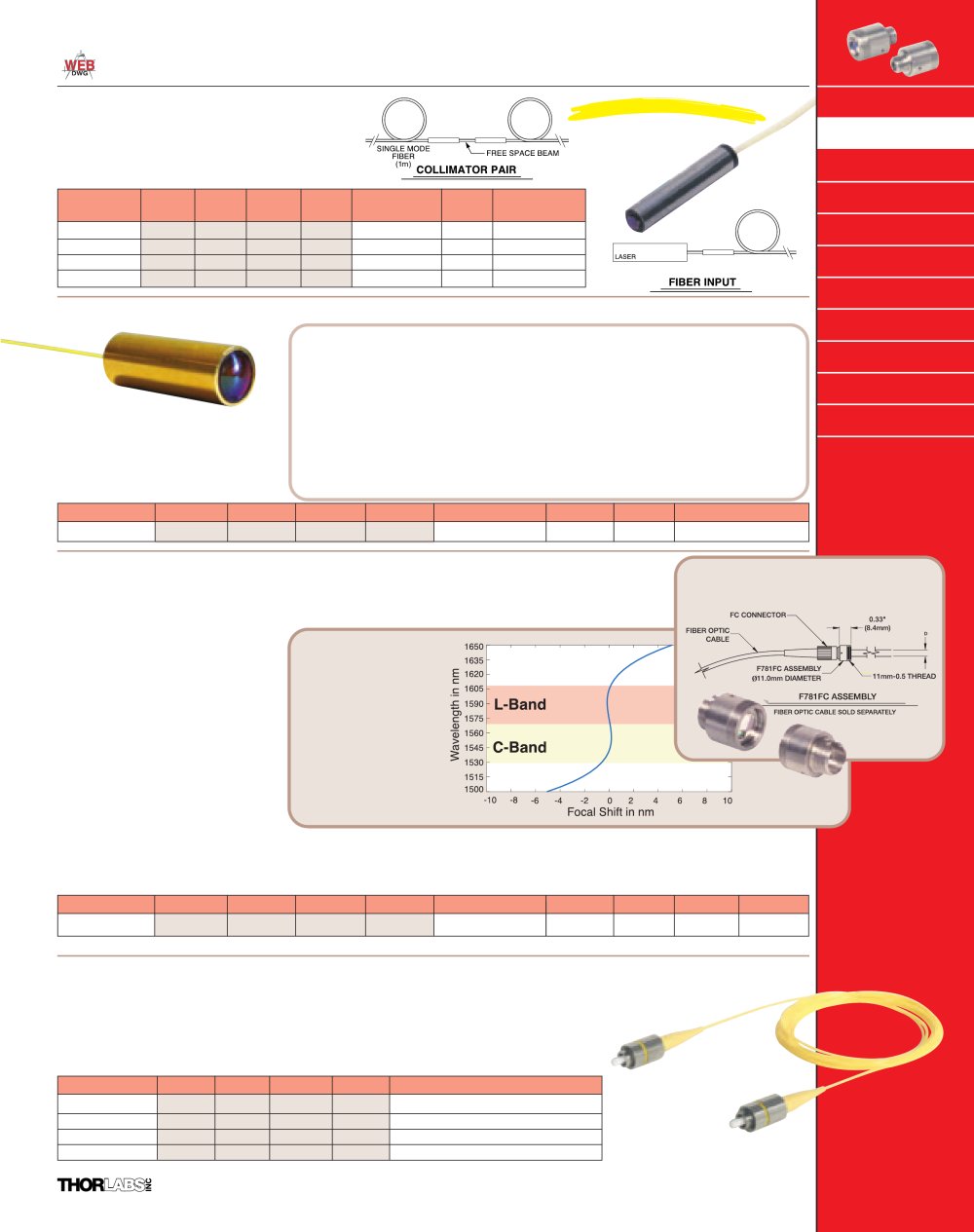

GRIN Fiber Collimators

Maximum Power 300mW

All Surfaces AR Coated

Collimation Packages

01.8mm Clear Aperture AR Coated all Surfaces

Input Coupler Output Collimator

^N-FREE SPACE BEAM

COLLIMATOR PAIR

ptical Switches


					OPERATING		END
ITEM#	$	£	€	¥	WAVELENGTH	FIBER	PREPARATION
50-1310	$ 79.95	£ 59.96	€ 83,95	¥ 13,592	1310nm	SMF-28	None
50-1310-FC	$ 108.00	£ 81.00	€ 113,40	¥ 18,360	1310nm	SMF-28	FC Connector
50-1550	$ 56.85	£ 42.64	€ 59,69	¥ 9,664	1550nm	SMF-28	None
50-1550-FC	$ 82.00	£ 61.50	€ 86,10	¥ 13,940	1550nm	SMF-28	FC Connector

ackbox Systems

ngle-Mode Fiber

FIBER INPUT

Rare Earth Doped

Single Mode Collimator

Single-Mode: PM

Specifications

■ Beam Diameter (1/e²): 5 mm

■ AR Coating Range: 1470 - 1630 nm

■ Fiber Type: Corning SMF-28 (Single Mode Fiber), 250 urn

■ Fiber Length: 1m

■ Fiber Connector: FC/APC Narrow Key

■ Aligned at: 1550nm

Photonic Crystal Fiber

■ Coupling Efficiency: > 60 %

■ Back Reflection: < -55dB

■ Package Dimensions Max: 16 mm

Dia. x 44 mm Length Cylindrical Au

Coated Stainless Tube

■ Operating Temperature: 0 to 50° C

■ Storage Temperature: -40°C to +70° C

Multimode Fiber: Graded Index

OMS102-4-APC 016mm

Multimode Fiber: Step Index

The OMS102-4 offers superior back reflection (coupling into fiber) performance and is gold coated for those applications requiring hermetic sealing.


ITEM#	$	£	€	¥	AR COATING'	D²	e³	WORKING DISTANCE
OMS102-4-APC	$ 108.00	£ 60.00	€ 90,00	¥ 14,400	1470 - 1630nm	5mm	<0.5mrad	200mm

FC Fiber Collimation Packages

In many DWDM applications and systems, both in the lab and production, chromatic errors can have vital effects on overall efficiency. Since the wavelength band is quite wide, from 80 to 120nm, the chromatic aberrations can be rather severe if the

lens used is not achromatic (insensitive to different wavelengths). This achromatic collimating lens is custom designed by Thorlabs to incorporate diffractive components along with the refractive, aspheric properties of the lens to keep the chromatic aberrations

The graph shows the focal length shift as a function of wavelength in the range graphed,

which encompasses the

entire C&L Bands, the

Maximum Focal Shift

Range: 0.0102 urn.

minimized over the entire C and L bands, 1500-1650nm. It is diffraction limited and the focal shift is below 10nm over the whole range 1500-1650nm.

■ Diffraction Limited Achromatic Collimating Lens 1500 - 1650nm

■ Wide Wavelength Band 1500 - 1650nm with Extremely Low Focal Shift < 0.010 urn

One Single Element Design Diffraction Limited Performance Popular FC connector interface

ITEM#

€

AR COATING

NAlens

F(mm)

$ 192.00

£ 144.00 € 201,60 ¥ 32,640

4.55

F781FC-1550

1500-1650nm

0.86mm

0.13°

0.55

1) See data on AR Coatings at www.thorlabs.com

2) Calculated 1/e² diameter @ 1 focal length from lens; fiber: SMF-28

3) Calculated beam full angle of divergence; fiber: SMF-28

AR Coated (One End) Fiber Patch Cables

■ Ideal for Use with Our Collimation Packages to minimize Fresnel Losses

■ SMF-28™ Fiber, 1m Length (Cutoff wavelength < 1260nm)

■ AR Coated FC/PC Connector (One End): R<0.5%, 1300nm ±100nm or 1550nm ±100nm

■ Uncoated FC/PC or FC/APC Input Connector

Corning SMF-28

Single Mode Fiber

900|jm Hytrel Jacket

Typical Return loss >23dB


ITEM#	$	£	€	¥	DESCRIPTION
P1-SMF28-FC-1-13	$ 78.50	£ 58.88	€ 82,42	¥ 13,345	FC/PC AR Coated - FC/PC, 1300nm
P1-SMF28-FC-1-15	$ 78.50	£ 58.88	€ 82,42	¥ 13,345	FC/PC AR Coated - FC/PC, 1550nm
P5-SMF28-FC-1-13	$ 89.90	£ 67.42	€ 94,40	¥ 15,283	FC/PC AR Coated - FC/APC, 1300nm
P5-SMF28-FC-1-15	$ 89.90	£ 67.42	€ 94,40	¥ 15,283	FC/PC AR Coated - FC/APC, 1350nm

Uncoated

FC/PC or FC/APC

Connector

AR Coated

(indicated) FC/PC Connector Only

Sales: 973-579-7227
