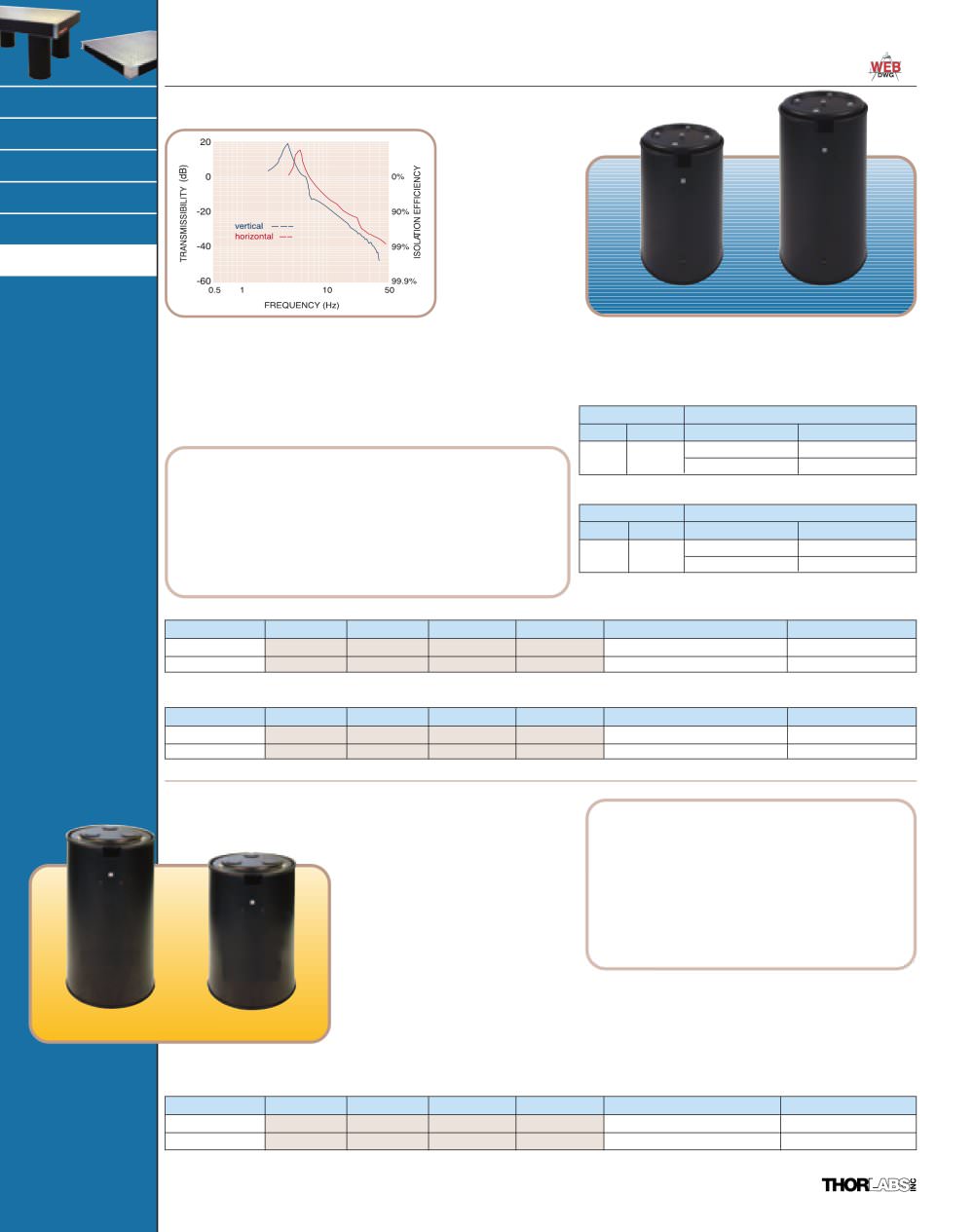

Tables & Breadboards

Pump&Go™ Non-Magnetic Passive Isolation

ScienceDesk™

Breadboards

iti

Vertical and Horizontal Transmissibility of Thorlabs Pump&Go™ NonMagnetic Passive Vibration Isolators.

Breadboard Supports

Optical Tables

90% w z o

39% o

Table Supports

Non-Magnetic

FREQUENCY (Hz)

Pump&Go™ Non-Magnetic passive isolators are designed specifically for use with Non-Magnetic tabletops The most cost-effective vibration isolators available, are ideal for removing floor vibrations in the critical 10Hz to 50Hz frequency range. Pump&Go™ isolators provide simple, effective vibration isolation with excellent horizontal and vertical stability. They inflate with a foot pump (PTA126) and isolate without air consumption. A choice of load capacity is provided


Pump&Go™ Standard Vibration-Isolation Data*
Resonant Frequency		Transmissibility (Isolation Efficiency)
Vertical	Horizontal	Vertical	Horizontal
<5Hz	<4Hz	<6dB at resonance	<9.2dB at resonance
<5Hz	<4Hz	<0.25dB(>75%) @ 10Hz	<0.13dB(>87%) @ 10Hz

Pump&Go™ Heavy Duty Vibration-Isolation Data*
Resonant Frequency		Transmissibility (Isolation Efficiency)
Vertical	Horizontal	Vertical	Horizontal
<5.5Hz	<4.5Hz	<6.5dB at resonance	<9-0dB at resonance
		<0.4dB(>60%) @ 10Hz	<0.25dB(>25%) @ 10Hz

to match your application. These passive isolation systems provide the same features as our popular Pump&Go™ isolators, but designed with fully Non-Magnetic material.

Specifications ■ Load Capacity

(Set of four):

•Standard: 275-1100kg (600-2425 lbs)

• Heavy duty: 550-2200kg

(1200-4850 lbs)

Height: 600 and 700mm

(24 and 28")

Air Pressure Required:

550kPa (80psi) Maximum

Finish: Black Paint


Standard Pump&Go™ Non-Magnetic Isolators				(4' x 8' x 12.2") table. Heavier tables or loads will have a lower vertical resonant frequency, higher transmissibility at resonance, and lower transmissibility at 10Hz.
ITEM					DESCRIPTION	HEIGHT
ITEM	$	£	€	¥	DESCRIPTION	HEIGHT
NTP502	$ 7,520.80	£ 4,424.00	€ 6.636,00	¥ 1,238,720	Pump&Go™ Set of 4	24" (600mm)
NTP503	$ 7,894.80	£ 4,644.00	€ 6.966,00	¥ 1,300,320	Pump&Go™ Set of 4	28" (700mm)
Other heights available upon request. Please contact your local sales office for a quotation including shipping.
Heavy Duty Pump&Go™ Non-Magnetic Isolators
ITEM					DESCRIPTION	HEIGHT
ITEM	$	£	€	¥	DESCRIPTION	HEIGHT
NTH502	$ 7,854.00	£ 4,620.00	€ 6.930,00	¥ 1,293,600	Pump&Go™ Heavy-Duty Set of 4	24" (600mm)
NTH503	$ 8,217.80	£ 4,834.00	€ 7.251,00	¥ 1,353,520	Pump&Go™ Heavy-Duty Set of 4	28" (700mm)

Other heights available upon request. Please contact your local sales office for a quotation including shipping.

Non-Magnetic Rigid Isolation Systems

Many environments and applications do

Specifications

not warrant vibration isolation. In such cases, it is only necessary to have a nonisolating support structure. Thorlabs' rigid isolation systems are economical support structures strong enough to support an optical table under heavy load.

Maximum Load Capacity (Set of four):

2500kg (5500 lbs)

Height Adjustment: +15mm, -6mm (+0.6", -0.25")

Leveling Adjustment: Manual Leveling Adjustment on Each Support to Compensate for Uneven Floors

Finish: Black Paint

Thorlabs offers large diameter free standing nonisolating supports designed to

support tabletops without cumbersome tie bars. Each non-isolating support has three adjustment screws to level or adjust the table height over a 21mm (0.85") range using an open-end wrench.

These non-isolating supports have a 2500kg (5500 lbs) load capacity for a set of four. They are available in two standard heights — 600mm, and 700mm (24" and 28") to allow any table surface to be supported at a standard 910mm (36") height. Special heights are available on request.

NTL502

Non-Magnetic Rigid Non-Isolating Supports


ITEM					DESCRIPTION	HEIGHT
ITEM	$	£	€	¥	DESCRIPTION	HEIGHT
NTL502	$ 3,179.00	£ 1,870.00	€ 2.805,00	¥ 523,600	Rigid Support Set of 4	24" (600mm)
NTL503	$ 3,546.20	£ 2,086.00	€ 3.129,00	¥ 584,080	Rigid Support Set of 4	28" (700mm)

Other sizes, series and material available upon request. Please contact your local sales office for a quotation including shipping.
