Tools of the trade - Vol 18 - 36188 PM100 and PM200 Series High Sensitivity Optical Power Meters

Detectors Power Meters

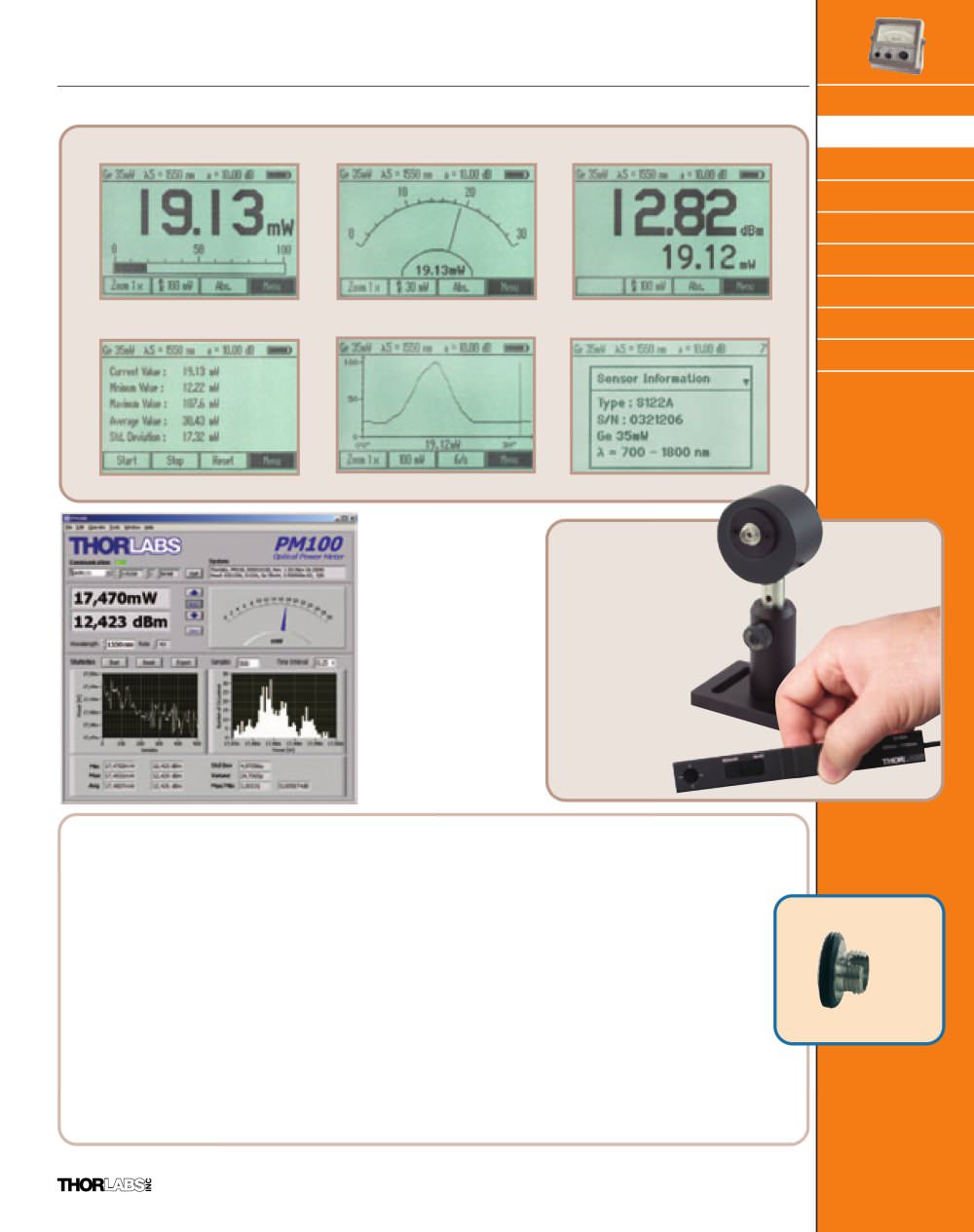

Display Screens for PM100 Series Console

CCD Camera Spectrometer Optical ChopperBeam Profiler & Fabry-PerotDigital Delay GeneratorTemperature Large Display w/Analog Bar graph Power versus Time Display Dual Display in dBm and mW Sensor Information Statistic Function Display Analog Needle for Peak Detection
ControllerFilter Wheel & Shutter The console has a built in RS232 interface andcomes with a complete set of drivers (LabVIEW™,LabWINDOWS™/CVI). The application softwareenables remote control ofthe unit and allows the user to view, acquire and store the measurementdata on a PC. SPECIALTY SYSTEMSThorlabs also offers twonew PM100 based power meter systems. Our PM130 series utilizes a low profile sensormount, and the PM140series incorporates an integrating sphere for the sensor element. See page 792 for sensor specifications.
PM140 SeriesIntegrating Sphere See page 791. PM130 SeriesUltra Slim Sensor See page 790.

General Console Specifications:

â–  Accuracy: ±1% (console)
â–  Display: 240 x 160 pixel LCD with Backlight
â–  Resolution: 0.01% Full Scale
â–  Display Format: Digit, Analog Needle, Line Plot, Statistics and Menu Screens
â–  SampleRates: Digital 3Hz – Analog 6Hz
â–  Resolution: 12 bit (1mV)
â–  PC Communication: RS-232

Analog Output:

FIBER ADAPTERS
â–  Baud Rate: 2400-115,200bps
â–  Voltage Range: 0 – 4.095V
â–  Dimensions: 230 x 95 x 55mm
â–  Resolution: 12 bit (1mV)

Data Acquisition:

â–  Sample Rate: 6 Hz
â–  Power Range (at Peak Wavelength):
â–  Power Range: Software Adjustable
SM05FC • PM120 Si Sensor: 50nW – 50mW• PM121 Si Sensor: 500nW – 500mW • PM122 Ge Sensor: 35nW – 35mW • PM210 3W Thermal Sensor: 20mW – 3W • PM212 10W Thermal Sensor: 20mW – 10W• PM213 30W Thermal Sensor: 100mW – 30W
â–  Connector: SMA

Power Management:

See Page 173
â–  Battery Pack: NiMH, 1500mAh, 3.6V
â–  Charger: 2 hr. Battery Charger Included
â–  Charger Power Supply: • Input: 85 – 265 VAC, 50 – 60 Hz• Output: 9VDC @ 1.1A Sales: 973-579-7227
