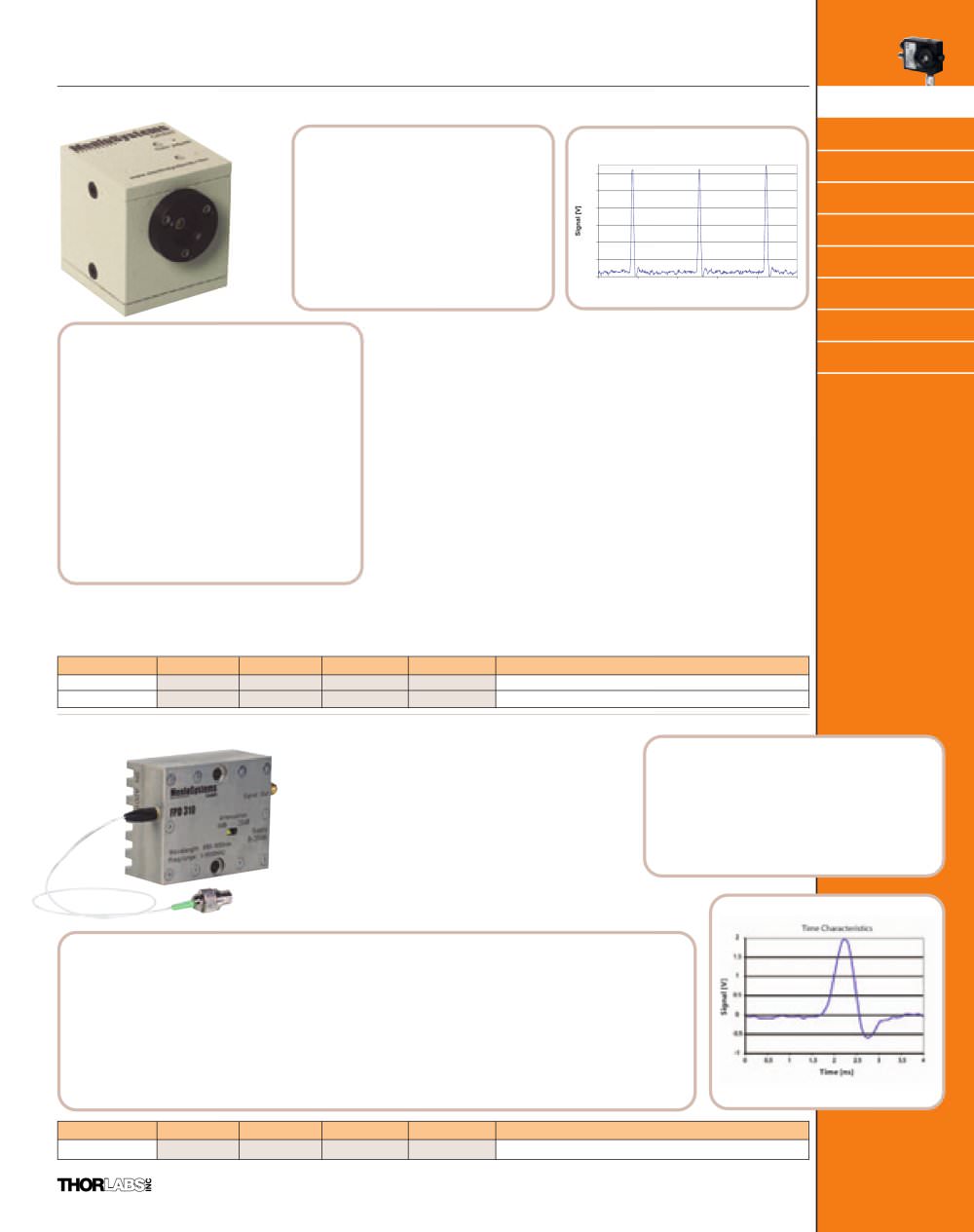

■ High Speed Response (up to 1GHz)

■ Small Size 60x47x50mm

■ Continuously Adjustable Gain:

• 1x to 100x (APD210)

• 1x to 10x (APD310)

■ SM05 Compatible

For applications that require greater sensitivity than can be attained with traditional PIN photodiodes, the APD Series Avalanche Photodiodes can provide an extremely sensitive alternative. The APDs are sensitive enough and fast enough for the characterization of pulsed lasers on the nanosecond scale.

The APD210 silicon APD provides exceptional performance for low light level applications in the 400 to 1000nm range, while the APD310 covers the InGaAs range of 850-1650nm. The APD maintains high gain stability over the 0° to 40°C temperature range by utilizing a temperature compensation circuit which adjusts the -150 VDC bias to ensure operation near the breakdown voltage. A 40dB gain amplifier is integrated into the package and is AC coupled to the output BNC. The output is matched to a 50Q impedance. The detector has an electronic bandpass of 1MHz to 1GHz and offers a user accessible potentiometer providing a continuous gain adjustment.

The APD Series has SM05 threads for easy integration into Thorlabs entire family of lens tubes and cage assemblies. The bottom of the detector has a metric

mounting. The compact packaging allows the APD to be directly substituted

on the bench top.

supply.

■ Power Supply: +12V to +15V (Included)

■ Current Consumption: 160mA

■ Max Incident Power: 10mW

■ Operating Temperature: 10-40 °C

■ Spectral Range: 400-1000nm/850-1650nm

■ Detector Diameter: 0.5mm/0.03mm

■ Frequency Range: 1MHz-1GHz

■ Output Impedance: 50Q

■ Connectors: BNC

• 2.5 x 10⁵ V/W (APD210)

• 2.5 x 10⁴ V/W (APD310)

(M4) mounting hole and an M4 to 8-32 adapter for post into an existing setup while maintaining a small footprint

The unit comes with an external wall mounted +15VDC

For experiments requiring high bandwidths and extremely short rise times choose the Menlo Systems photoreceiver. An easy-to-use InGaAs-PIN photodiode package with integrated high gain, low noise RF amplifier. It offers a well-balanced combination of gain, bandwidth and low noise.

The module features an ultrafast fiber coupled photoreceiver with an integrated radio frequency amplifier all in one compact housing. Rise time is 500ps, the 1-dB-bandwidth lies at 1GHz. The user can switch in between two gain settings. Through its compact housing OEM integration can be easily achieved.

■ 1dB Bandwidth at 1 GHz

■ Ultrafast Response (1MHz-1.8GHz)

■ OEM Package with FC/APC Pigtail

(SMF-28)

■ Two Gain Settings

■ Supply Voltage: +8 to +20V

■ Current Consumption: 250mA

■ Max Incident Power: 2mW

■ Operating Temp: 10-40 °C

■ Spectral Range: 1000-1650nm

■ Frequency Range: 1MHz - 1.8GHz

■ Rise Time: 500ps

• 1:5 x 10⁴V/W @1GHz, 1560nm

• 2:5 x 10²V/W @1GHz, 1560nm Noise Figure: 2dB

Output Impedance: 50Q Connections:

Input - SMF-28 pigtail (FC/APC) Output - SMA
