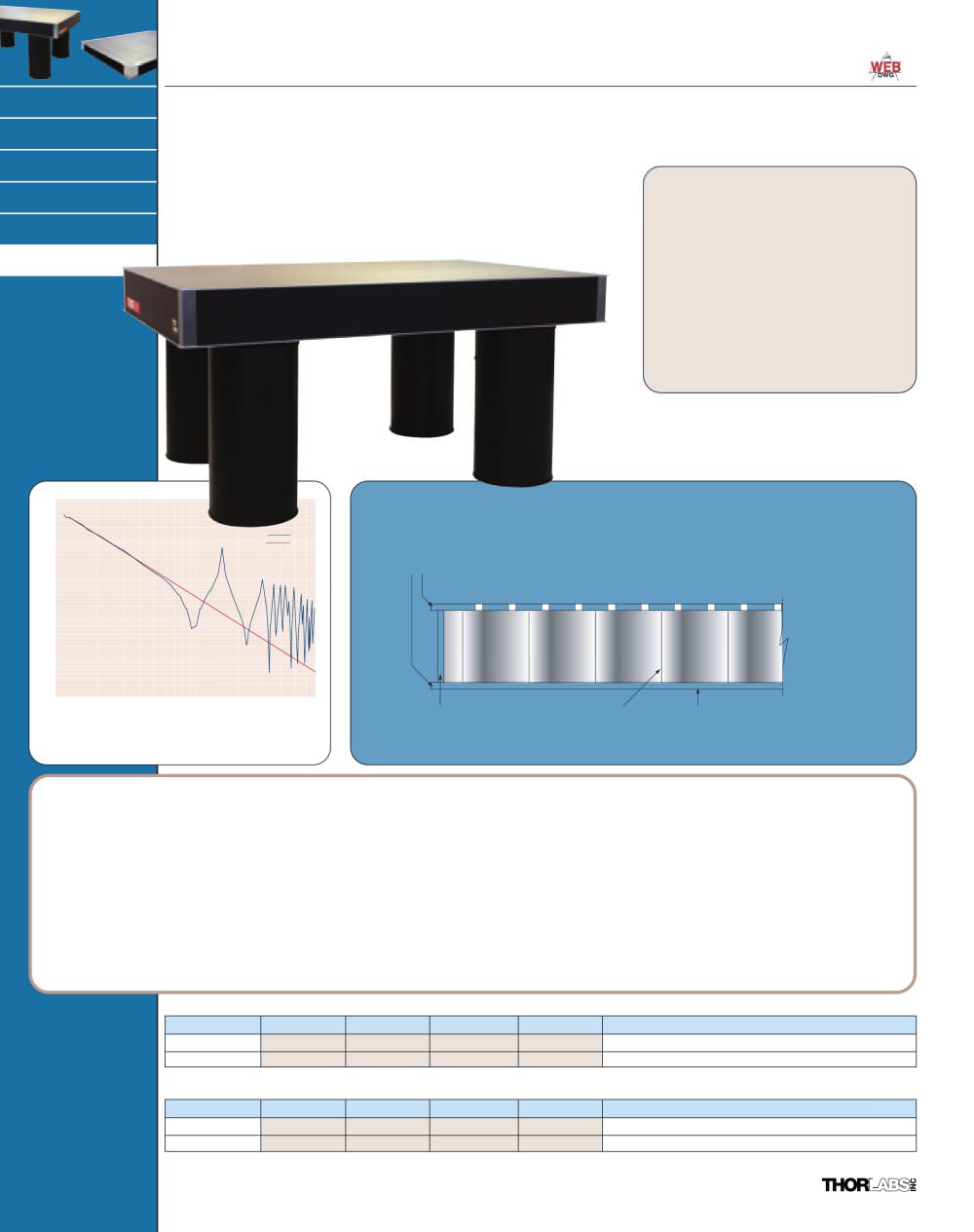

Tools of the trade - Vol 18 - 36188 Performance™ SeriesNon-Magnetic Optical Tables Performance™ Series

BreadboardsBreadboard Thorlabs Non-Magnetic Performance™ optical tables are a cost-effective choice for general purpose applications. These tables utilizesimilar construction techniques and the same high quality materials as the StableTop™ range. With a single aluminum core and broadband damping, this series offers dynamic rigidity and stiffness better than other cost-competitive tabletops.The Performance series tabletops are ideally suited for less demanding generalphotonics applications, such as general spectroscopy and multimode fiber opticalsetups. They are also good for micro-positioning and non-interferometric applications.
Supports â–  Optical Tables Non-Magnetic 304L Stainless Steel Topand Bottom Plate
Table Supports â–  Athermalized Design for ExcellentThermal Stability
Non-Magnetic â–  Minimal Deflection Under Load
â–  High Density Aluminum Honeycomb Core
â–  Excellent Surface Flatness, Achievedby Using Thermally Matched Material
â–  Flatness: ±0.1mm (±0.004") Over any 1m
2 â–  Double Plate, Single Honeycomb Core
NTM11109 US Patent5402734 Optical Table NTM11109 is shown with self-leveling isolation system NTS503, shown on page67. For our full line of non-magnetic vibration isolation systems, see pages 67-68. 316L Stainless SteelAvaliable upon Request
10 -6

Non-Magnetic Performance™ Series

10 -7 Performance SeriesIdeal Rigid Body Cross Section ofTabletop withTriple-plate Design
non-magnetic 304L stainless steel top and bottom skin (same material prevents bowing with temperature change) 10 -8 -9 Compliance (in./lb) 10 10 -10 10 -11 101001000Frequency (Hertz) aluminum side walls aluminum honeycomb hot press bonded Typical Compliance curve for PerformanceSeries I Tabletop - measured at table corner
(provides greater stiffness) (provides a high strength to weight ratio) (entire table bonded under high pressureand temperature providing greater rigidity and stiffness)

SPECIFICATIONS

â–  Core: High-density Plated AluminumHoneycomb
â–  Maximum Screw Length: 16mm (5/8")
â–  Table thickness: 8.3" (210mm)
â–  Dynamic Deflection Coefficient
-3 (Max):<1.3 x 10
â–  Flatness: Flatness: ±0.1mm (±0.004")Over any 1m
â–  Mounting Hole Pattern: *
2 •Metric: M6 on 25mm Centers•Imperial: 1/4"-20 on 1" Centers
â–  Relative Tabletop Motion
-9 (Max): <0.27nm(10.5 x 10
â–  Construction: Double Plate, AluminumHoneycomb Core in.)*
â–  Edge to first hole center:
â–  Deflection Under Load
-5 113kg (250 lbs):<1.65µm (6.5 x 10
â–  Top and Bottom plates: •Metric Models: 50mm on all Sides• Imperial Models 4.1' Width: 2.0"on Ends & 2.6" on Sides• Imperial Models 4.9' Width: 2.0"on Ends & 2.5" on Sides in.)* •Matched Materials for Athermalized Design•Non-Magnetic 304L Stainless Steel,5mm Thick
*Measured on a 4.1 x 8 ft. x 8.3 in. table with isolatortransmissibility T<0.01 above 10 Hz, environmental vibrationsPSD <10 -9 g 2 /Hz. Non-Magnetic Optical Tables, 1/4"–20 – Stocked for Immediate Delivery
ITEM#$£ ¥DIMENSIONS (L xW xH) NTM11109$6,664.00 £3,920.00 5.880,00 ¥ 1,097,6008' x 4.1' x 8.3"NTM11114$8,887.60 £5,228.00 7.842,00 ¥ 1,463,84010' x 4.9' x 8.3" Non-Magnetic Optical Tables, M6 Metric – Stocked for Immediate Delivery
ITEM#$£ ¥DIMENSIONS (L xW xH) NTM51509$6,664.00 £3,920.00 5.880,00 ¥ 1,097,6002500 x 1250 x 210mmNTM51514$8,887.60 £5,228.00 7.842,00 ¥ 1,463,8403000 x 1500 x 210mm Please contact your local sales office for a quotation including shipping 64 Sales: 973-579-7227
