Tools of the trade - Vol 18 - 36188 Vibration Isolation Accessories

BreadboardsBreadboard Supports Optical Tables Table Supports Non-Magnetic Vibration Isolation Systemsavailable on pages 60-62.

Specifications

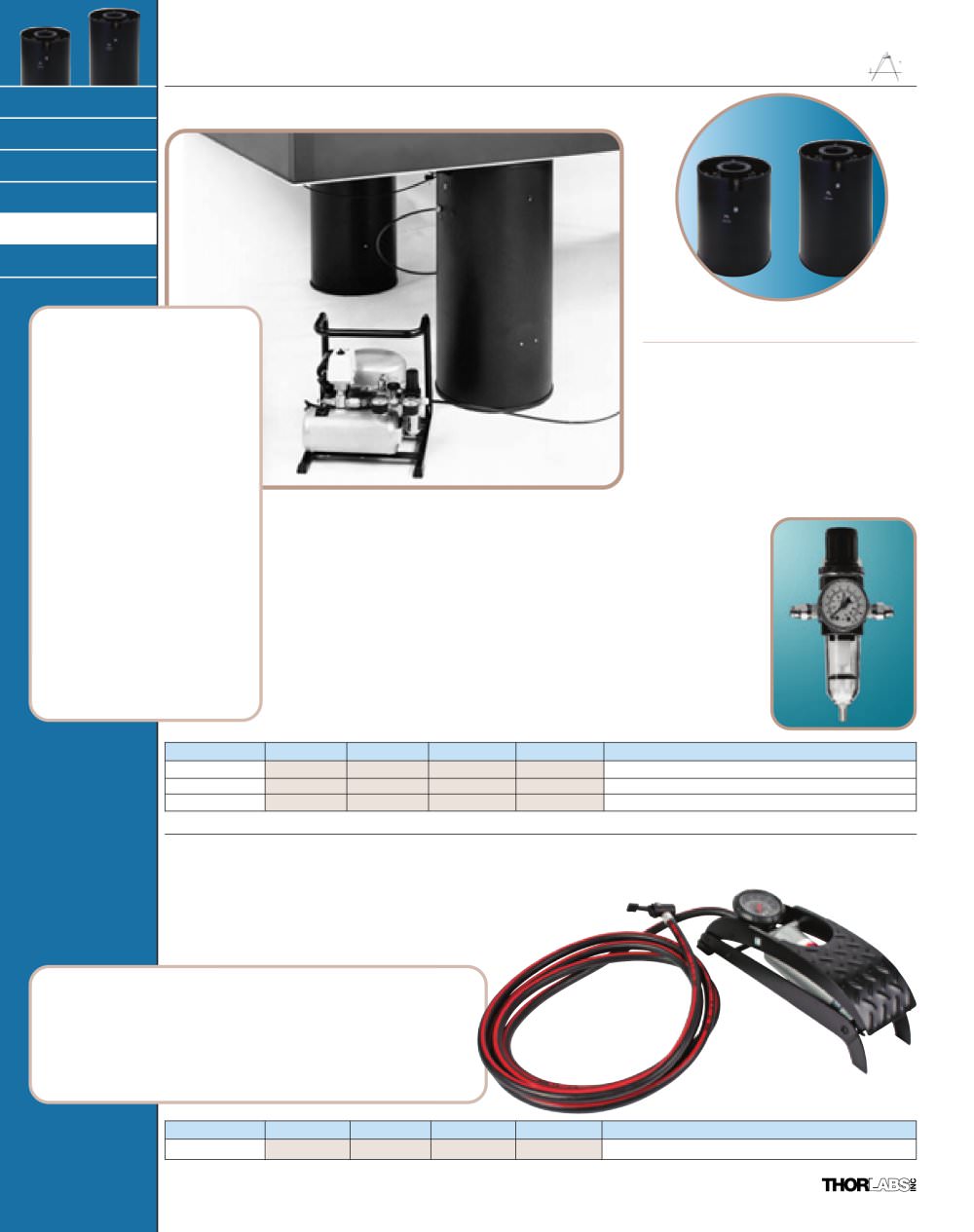

â–  Air Pressure: 825 kPa (120psi) maximum Air Filter/Regulator Water and particles commonly found incompressed air can be damaging to a vibration-isolation system. This compact filter/regulator is recommended for use with all Thorlabs SuperDamp™ isolators. It regulates the air pressure supplied to the isolators whileremoving moisture and particles down to 5µm.The fittings accept the 6mm diameter plastic tubing supplied with theSuperDamp isolators.Each filter/regulator comes complete with a wall mountingbracket (not requiredwith Thorlabs compressor).
â–  Air Delivery: • for 115 VAC/60 Hz Versionat 0kPa (0psi): 20 l /min(0.7 cfm) at 825 kPa (120 psi): 13 l /min (0.45 cfm)•for 220 VAC/50Hz Versionat 0 kPa (0psi): 17 l /min(0.6 cfm) at 825 kPa (120psi): 11 l /min (0.4 cfm) Air Compressors
â–  Power: For laboratories not equipped with a compressed air supply,Thorlabs provides a low-noise air compressor that is self-contained, lightweight, and compact. Due to the low noise emitted (35dB at 1m), the compressor will not interfere with sensitive experiments.Each system includes its own air regulator, filter, and receiver tankwith pressure gage, safety valve, drain, and line pressure gauge.Thorlabs offers models for both 115 VAC/60 Hz operation(PTA011) and 220 VAC/50 Hz operation (PTA511). Both units are delivered ready for use with appropriate wall plug installed. To pressurize passive vibration isolation systems where a constant supply of air is notnecessary, Thorlabs supplies this foot pump. It is supplied with a Schraeder-type connector, pressure gauge and extended tubing to allow convenient positioning. • 115 VAC/60 Hz Version:160 W, 2.2 A• 220 VAC/50 Hz Version:125 W, 1.1 A
â–  Noise Level: 35dB (A) at 1m
â–  Dimensions: (L W H):305mm 330mm 300mm(12" 13" 11.8")
â–  Weight: 13.4 kg (29.5 lb) Air Compressors & Air Filter Regulator
ITEM$£ ¥DESCRIPTION PTA011*$535.50 £315.00 472,50 ¥88,200Air Compressor-110/115 V-60Hz PTA013$71.40£42.00 63,00¥11,760Air FilterPTA511*$535.50 £315.00 472,50 ¥88,200Air Compressor-220/240 V-50Hz *Air filter included

Foot Pump for Passive Isolation Systems

Features Specifications

â–  Extended Hose for use with thePassive Isolation Products
â–  Maximum pump pressure: 100psi
â–  Connects to Standard SchraederValves
â–  Hose length: 2 meters ( 6ft)
â–  Integrated Pressure Gauge
ITEM$£ ¥DESCRIPTION PTA126$39.10£23.00 34,50¥6,440Foot Pump 62 Sales: 973-579-7227
