Optical Systems

The Pyrex reference cell can be used in an undergraduate or graduate level laboratoryenvironment. Pyrex material is a rugged material resistant to chipping and cracking. The cells are made with flat windows of optical quality Schott Borofloat to give good light transmission. The Pyrex cells are tested for optical throughput before shipping . A laser diode source and power meter is used to test the cell throughput. The output power of the laser source is measured using the power meter to establish a base line. The power is measured again with the cell in the optical path. An acceptable power level percentage through the cell is above 84%. The fill material is also tested. A tunable laser diode is used to scan over one of the absorption peaks. The laser system is adjusted to scan over one of the absorption wavelengths for the fill material. The wavelengths for the different fill materials are; Rubidium 780nm, Cesium 852nm, Sodium 589nm, Potassium 764nm and Iodine 632nm. The atomic elements have various absorption lines at different wavelengths. Our cell testing is performed at lines that are well defined and are accessible using a laser diode source. The cell absorption lines are measured using linear absorption measurement. Our Pyrex reference cells are excellent filters for this type of experiment. The graphs below show the absorption spectrum for Rubidium and Cesium reference cells.

PPLN Devices Spherical Singlets Multi-element Lenses Cylindrical Lenses Aspheric Lenses Mirrors Windows & Diffusers Prisms

Specifications

Gratings

â–

Material: Borofloat Glass

â–

Cell Diameter: 25mm

Diffractive Optics

â–

Fill Stem: <10mm

â–

Window Angle: 0°

Polarization Optics

â–

Window Type: Flat

â–

Window Thickness: 3mm Email Tech Support at techsupport@thorlabs.com for Custom Reference Cells.

Beamsplitters Filters & Attenuators Gas Cells

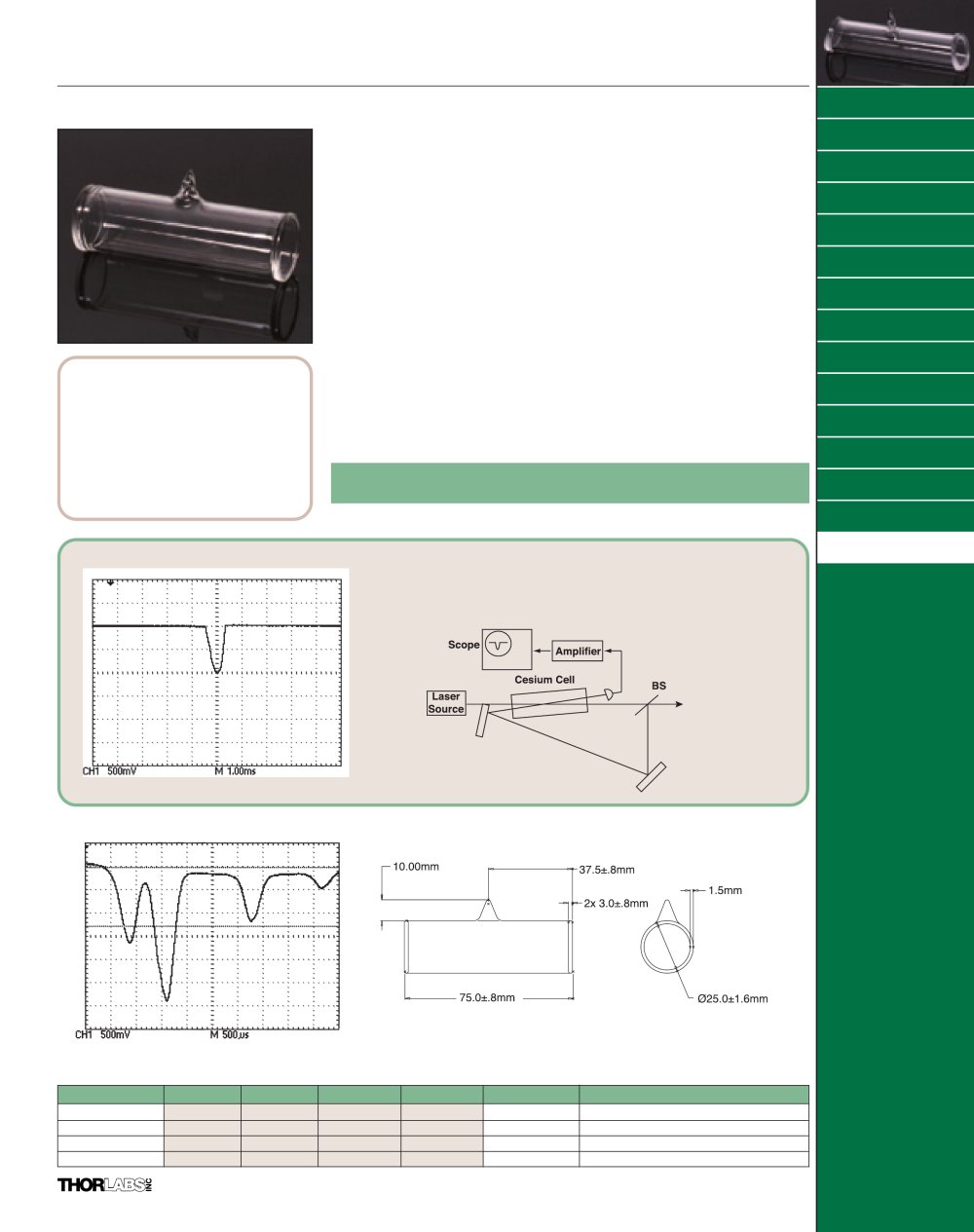

A typical lab experiment using a Pyrex reference cell is a saturatedabsorption experiment on the Cesium 852nm absorption line. The experiment is used to examine the Doppler free absorption line of Cesium. Cesium Absorption Lines at 852nm Natural Rubidium Absorption Lines

ITEM #$£ ¥PRESSUREDESCRIPTION CP25075-RB$395.00£296.25 414,75¥67,150>1x10
-7 TorrRef. Cell, Pyrex 25 x 75mm, Rubidium Rb CP25075-CS$395.00£296.25 414,75¥67,150>1x10
-7 TorrRef. Cell, Pyrex 25 x 75mm, Cesium Cs CP25075-K$395.00£296.25 414,75¥67,150>1x10
-7 TorrRef. Cell, Pyrex 25 x 75mm, Potassium KCP25075-NA$395.00£296.25 414,75¥67,150>1x10
-7 TorrRef. Cell, Pyrex 25 x 75mm, Sodium Na
